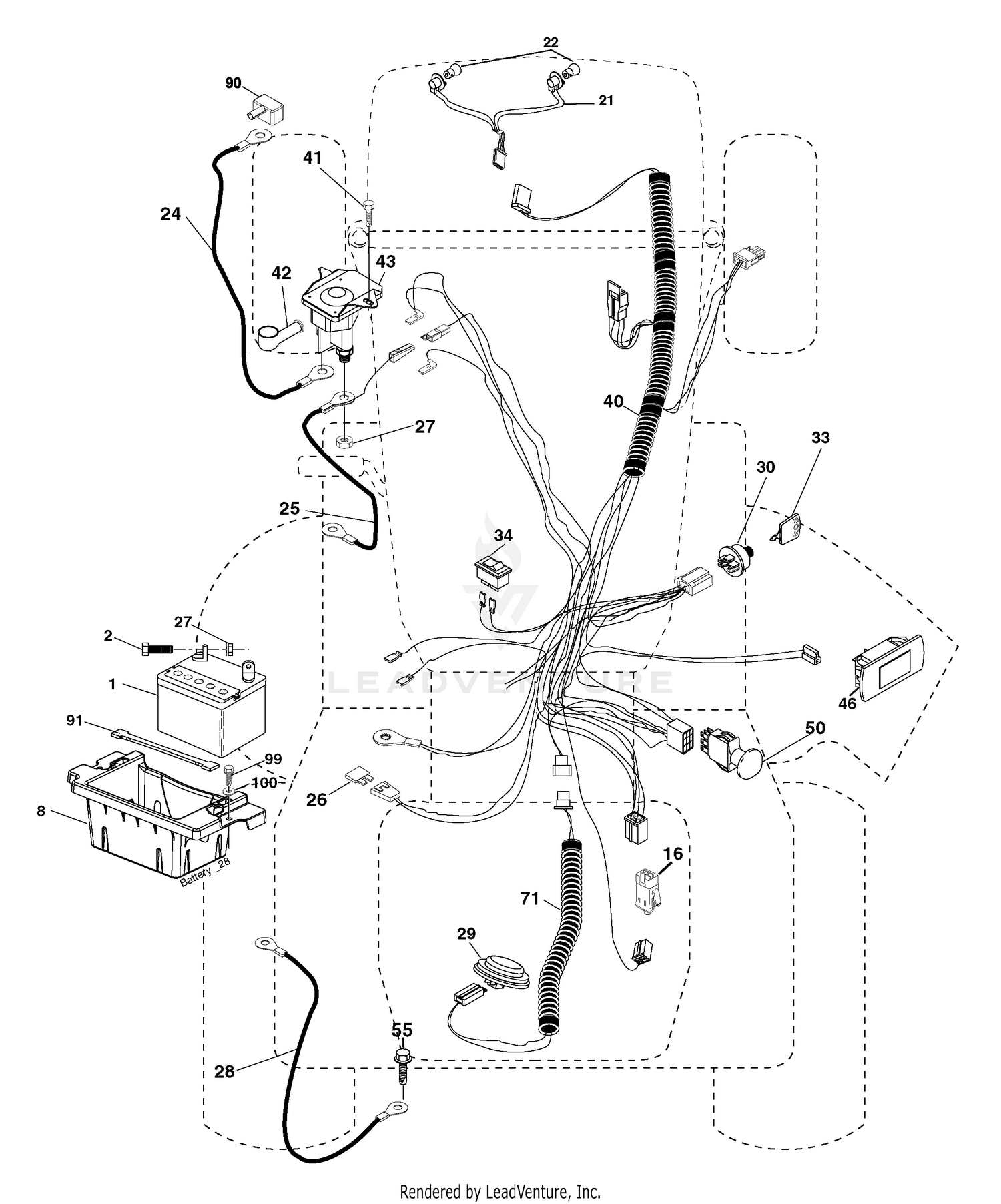

| Ref | Part Number | Description |
|---|
| 1 |
38-2860 |
RESISTOR- 5 OHM Price: $71.95 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
66-8800 |
RELAY Price: $87.56 |
| 4 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 5 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 6 |
321-4 |
SCREW-HH Price: $0.99 |
| 7 |
2412-74 |
R-CLAMP Price: $2.37 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532198138. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
