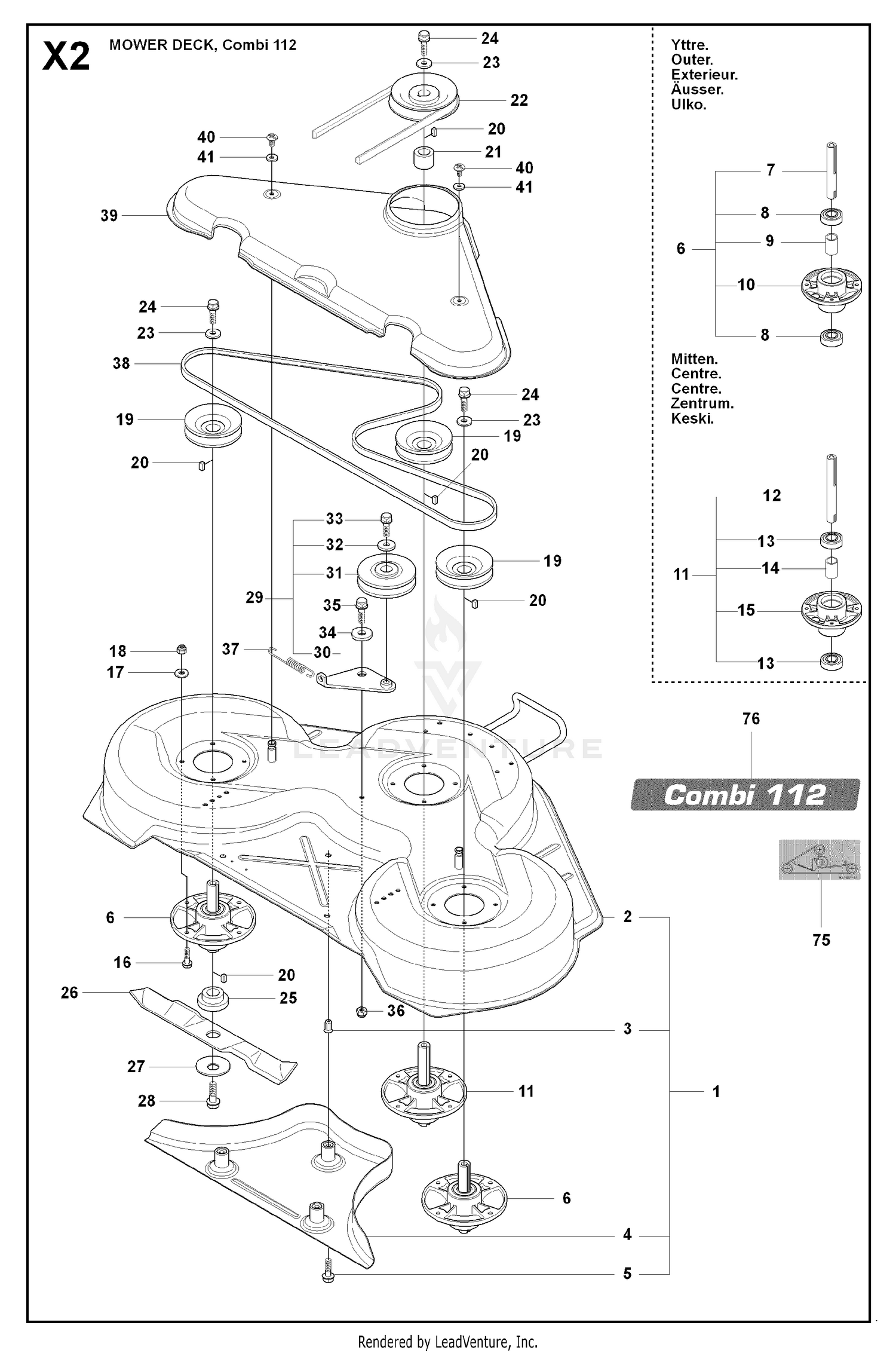

44"/112CM CUTTING DECK
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-6918 | SWITCH-OIL Price: $25.77 |
| 1 | 544113003 | CUTTING DECK C112 GREY RIDER Price: $449.99 |
| 2 | 125-6975 | BOLT-JOINT, PIPE Price: $12.92 |
| 3 | 125-6952 | BOLT-JOINT, PIPE Price: $18.97 |
| 3 | 506916201 | NUT Price: $4.99 |
| 4 | 127-3154 | LUBE OIL PIPE ASM Price: $123.93 |
| 4 | 544449301 | PLUG Price: $69.99 |
| 5 | 125-6976 | RETAINER Price: $8.13 |
| 5 | 506570104 | BOLT Price: $4.99 |
| 6 | 125-7175 | WASHER-SEAL Price: $6.16 |
| 6 | 576384102 | BLADE HOUSING ASSY This part replaces 544065901. Price: $79.99 |
| 7 | 125-7193 | GASKET Price: $1.28 |
| 7 | 544067902 | SHAFT Price: $37.99 |
| 8 | 738230434 | BEARING Price: $17.99 |
| 8 | 93-0362 | BOLT Price: $3.89 |
| 9 | 127-2992 | JOINT Price: $35.51 |
| 9 | 544068001 | SPACER Price: $11.99 |
| 10 | 127-3155 | PIPE-LUBE, OIL Price: $137.70 |
| 10 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 11 | 127-3003 | ELBOW Price: $31.01 |
| 11 | 576384101 | BLADE HOUSING ASSY This part replaces 544065902. Price: $84.99 |
| 12 | 127-3169 | CLAMP-HOSE Price: $16.25 |
| 12 | 544067901 | SHAFT Price: $39.99 |
| 13 | 125-7198 | O-RING Price: $7.26 |
| 13 | 738230434 | BEARING Price: $17.99 |
| 14 | 125-7208 | BOLT Price: $3.77 |
| 14 | 544068001 | SPACER Price: $11.99 |
| 15 | 125-7105 | CHECK VALVE ASM Price: $41.11 |
| 15 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 16 | 535423801 | BOLT Price: $4.99 |
| 17 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 506922101 | PULLEY Price: $29.99 |
| 20 | 506533501 | KEY Price: $3.99 |
| 21 | 125-7098 | NOZZLE Price: $43.36 |
| 21 | 544068002 | SPACER Price: $9.99 |
| 22 | 506778601 | PULLEY Price: $49.99 |
| 23 | 734117441 | WASHER Price: $3.99 |
| 24 | 544114101 | SCREW Price: $3.99 |
| 25 | 535504202 | ADAPTER Price: $19.99 |
| 26 | 504188110 | BLADE Price: $32.99 |
| 27 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 28 | 544114101 | SCREW Price: $3.99 |
| 29 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 30 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 31 | 506532701 | PULLEY Price: $39.99 |
| 32 | 734116441 | SPACER Price: $3.99 |
| 33 | 506558302 | BOLT Price: $3.99 |
| 34 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 35 | 725245171 | SCREW Price: $2.08 |
| 36 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 37 | 506533101 | SPRING Price: $9.99 |
| 38 | 594978001 | BELT This part replaces 589514601. Price: $59.99 |
| 39 | 544096203 | BELT COVER C112 HUSQVARNA-GREY This part replaces 544096201. Price: $44.99 |
| 40 | 506982601 | SCREW Price: $5.99 |
| 41 | 506559701 | WASHER Price: $4.99 |
| 75 | 506789701 | Decal Price: $21.55 |
| 76 | 544238105 | LABEL Price: $3.99 |
