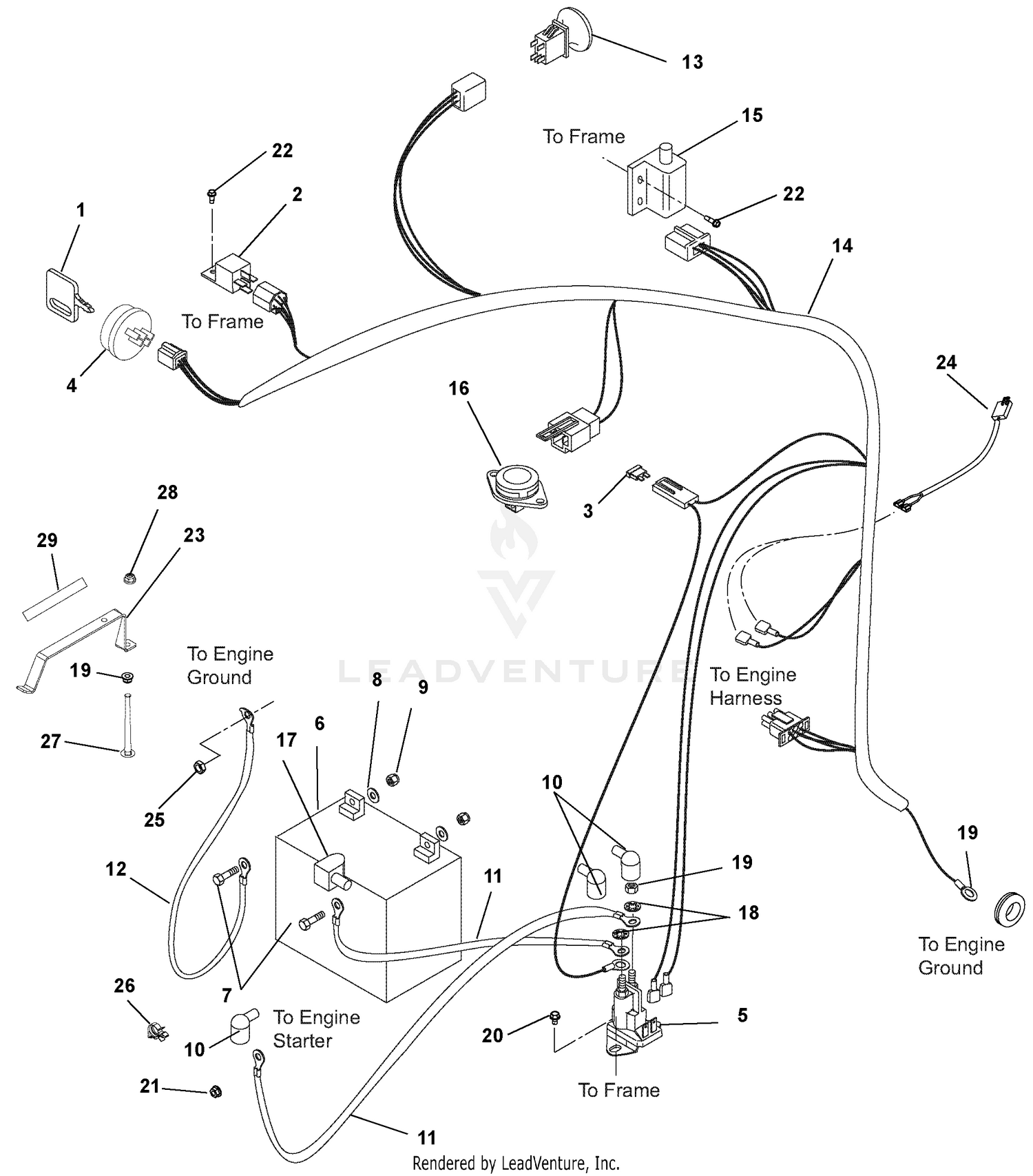

| Ref | Part Number | Description |
|---|
| 1 |
03927000 |
KEY, 03290500 KEYSWITCH Price: $9.45 |
| 2 |
00432101 |
RELAY,SEALED W/DIODE This part replaces 03042800. Price: $19.95 |
| 3 |
08961800 |
FUSE,25 AMP This part replaces 09351100. Price: $3.45 |
| 4 |
03290500 |
KEYSWITCH-IGNITION 3 POS Price: $16.45 |
| 7 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 8 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 9 |
06500921 |
NUT-KEPS .250-20 ZCC This part replaces 06509200. Price: $1.45 |
| 10 |
07533200 |
BOOT, EYELET TERMINAL Price: $3.45 |
| 11 |
04787400 |
CABLE,POS W/2 1/4 RING 15.0 LG Price: $8.95 |
| 12 |
04249900 |
CABLE, NEGATIVE 26" 6 GA. Price: $30.95 |
| 13 |
04399600 |
SWITCH, CLUTCH (YELLOW) Price: $20.95 |
| 14 |
04782000 |
HARNESS, ZOOM/ZT WIRE Price: $82.45 |
| 15 |
03606600 |
SWITCH- DOUBLE POLE N.O./N.O. Price: $15.45 |
| 17 |
07505700 |
INSULATOR Price: $8.95 |
| 18 |
06300118 |
WSHR,LK-EXT.262X.502X.026 ZCC This part replaces 06306800. Price: $0.45 |
| 19 |
06500925 |
NUT-STD M6-1.0 ZCC This part replaces 06539800. Price: $0.95 |
| 20 |
07400125 |
SCR,TAP .25-20X.375 HWH TR ZCC This part replaces 07411600. Price: $0.95 |
| 21 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC This part replaces 06543500. Price: $0.95 |
| 23 |
04385351 |
HOLDDOWN, BATTERY, U1&190CCA Price: Call Us |
| 24 |
03972600 |
HARNESS, CLUTCH Price: $17.95 |
| 27 |
06200308 |
BLT, RHSN .25-20X4.50 G5 ZCC This part replaces 06200211. Price: $2.95 |
| 28 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 29 |
07800336 |
DECAL, U1 BATTERY REPLACEMENT Price: $1.95 |
