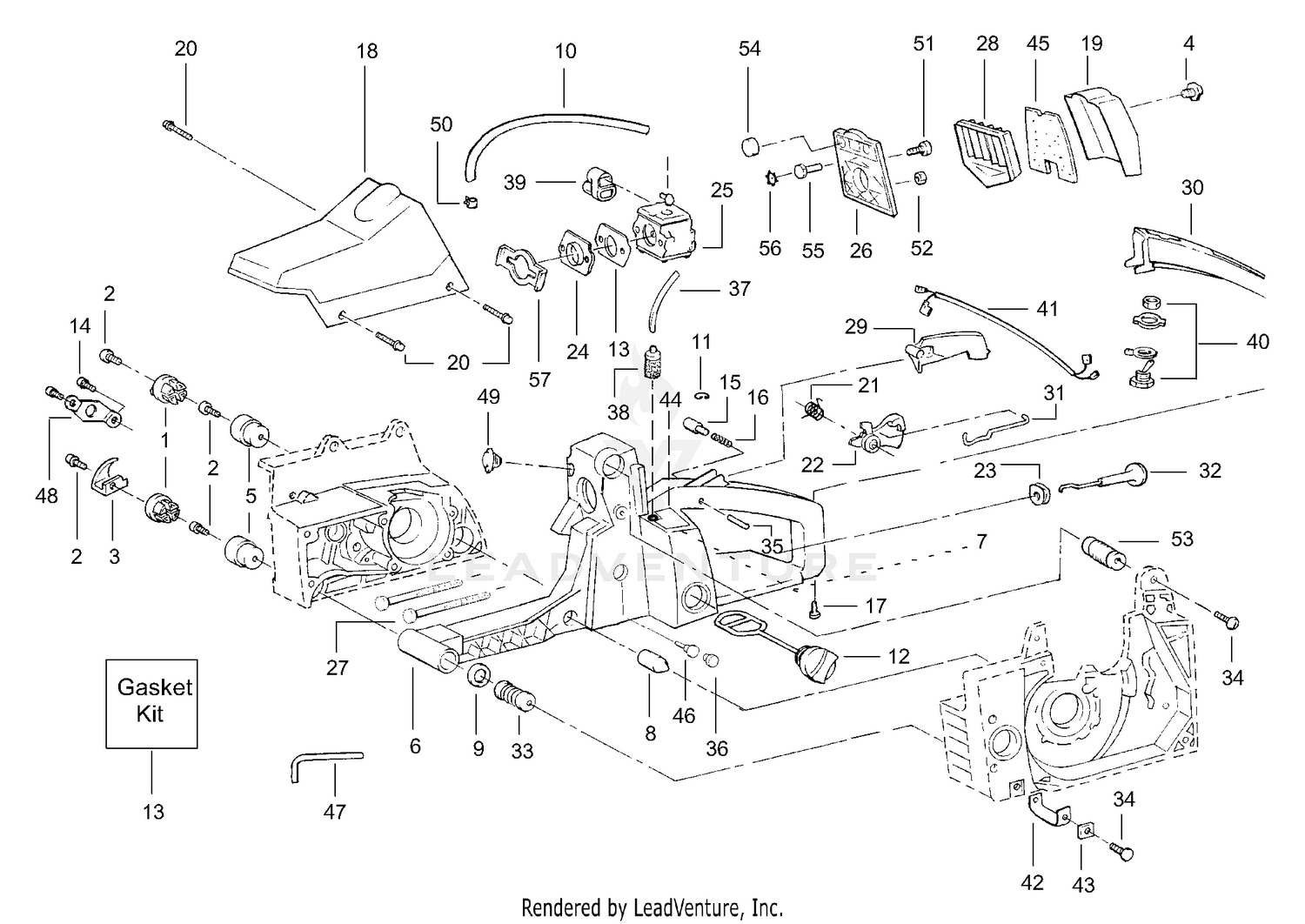

External Power Unit
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 322-6 | SCREW-HH Price: $0.45 |
| 1 | 530027732 | Retainer-Chain Catcher Price: $1.99 |
| 2 | 3-8580 | DISCONTINUED Price: Call Us |
| 2 | 530016057 | Screw Price: $1.99 |
| 3 | 3-8750 | DISCONTINUED Price: Call Us |
| 3 | 530027733 | Chain Catcher Price: $1.99 |
| 4 | 283-16 | PIN-CLEVIS Price: $2.37 |
| 4 | 530049248 | Knob-Carb. Cover Price: $1.99 |
| 5 | 3272-45 | Cotter Pin Price: Call Us |
| 5 | 530042080 | Lower Isolator Price: $2.99 |
| 6 | 3-8590 | DISCONTINUED Price: Call Us |
| 6 | 530069974 | Tank & Handle Kit Price: Call Us |
| 7 | 283-17 | PIN-CLEVIS Price: $4.89 |
| 7 | 530019192 | Seal Carb. Cover-Left Price: $1.99 |
| 8 | 3-5698 | Clamp Price: Call Us |
| 8 | 530027187 | Isolator-Bumper Price: $1.99 |
| 9 | 2213-1 | DISCONTINUED Price: Call Us |
| 9 | 530015123 | Washer Price: $1.99 |
| 10 | 530053752 | HOSE IMPULSE This part replaces 530069897. Price: $4.99 |
| 11 | 3253-2 | WASHER-LOCK Price: $0.25 |
| 12 | 3290-134 | SCREW Price: $0.27 |
| 13 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 13 | 530069891 | Gasket Kit Price: $3.33 |
| 14 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 14 | 530015875 | Screw Price: $1.99 |
| 15 | 530029666 | Button-Throttle Lock Price: $2.99 |
| 16 | 530024772 | Spring-Throttle Price: $1.99 |
| 17 | 530015716 | Screw Price: $1.99 |
| 18 | 530049271 | Cylinder Shield (Black) Price: $7.99 |
| 18 | 530053329 | Cylinder Shield (Purple) Price: $5.99 |
| 19 | 530053362 | Carb. Cover Ass'y. (Purple) Price: $11.99 |
| 19 | 530053440 | Carb. Cover Ass'y. (Black) Price: $9.99 |
| 20 | 530015650 | Screw Price: $1.99 |
| 21 | 530027134 | Trigger Latch Spring Price: $1.99 |
| 22 | 530027133 | Throttle Trigger Price: $1.99 |
| 23 | 530036053 | Grommet-Choke Rod Price: $1.99 |
| 24 | 530049465 | Bracket-Intake Price: $1.99 |
| 25 | 530069895 | Carburetor Kit (HDA-164) Price: $29.99 |
| 26 | 530049260 | Air Filter Base Price: $6.99 |
| 27 | 530049562 | Carb. Mounting Stud Price: $1.99 |
| 28 | 503553902 | Air Filter Price: $14.99 |
| 29 | 530027135 | Throttle Lockout Price: $1.99 |
| 30 | 530049257 | Rear Handle Cover (Black) Price: $2.99 |
| 30 | 530053351 | Rear Handle Cover (Purple) Price: $1.48 |
| 31 | 530027073 | Throttle Wire Price: $2.99 |
| 32 | 530027075 | Choke Knob Price: $1.99 |
| 33 | 530069384 | Isolator Kit Price: $17.99 |
| 34 | 530015650 | Screw-Pinch Clamp This part replaces 530015871. Price: $1.99 |
| 35 | 530015701 | Dowel Pin Price: $1.99 |
| 36 | 530038264 | Plug-Bronze Vent Price: $1.99 |
| 37 | 530069910 | Fuel Line Kit Price: $3.99 |
| 38 | 530091878 | Fuel Filter Ass'y. Price: $5.99 |
| 39 | 530049265 | Carb. Grommet Price: $1.99 |
| 40 | 530069225 | Switch Kit Price: $6.99 |
| 41 | 530027138 | Lead Wire Ass'y. Price: $2.99 |
| 42 | 530037009 | AV Strap Price: $1.99 |
| 43 | 530037012 | Strap Retainer Plate Price: $1.99 |
| 44 | 530019191 | Seal Carb Cover-Right Price: $0.99 |
| 45 | 530049684 | Sound Foam Price: Call Us |
| 46 | 530026119 | Check Valve Price: $1.99 |
| 47 | 530031159 | Hex Wrench 5/32 Price: $1.99 |
| 48 | 530029347 | Bracket Price: $1.99 |
| 49 | 530025922 | Plug-Air Box Price: $1.99 |
| 50 | 530053893 | Clamp Price: $1.99 |
| 51 | 530015598 | Screw-Air Filter Base Price: $1.99 |
| 52 | 530049561 | Nut-Air Filter Price: $1.99 |
| 53 | 530047334 | Cylinder Mount Ass'y. Price: Call Us |
| 54 | 530027399 | Bumper Price: $1.99 |
| 55 | 530015839 | Screw-Carb Knob Price: $1.99 |
| 56 | 530016199 | Retaining Ring Price: $1.99 |
