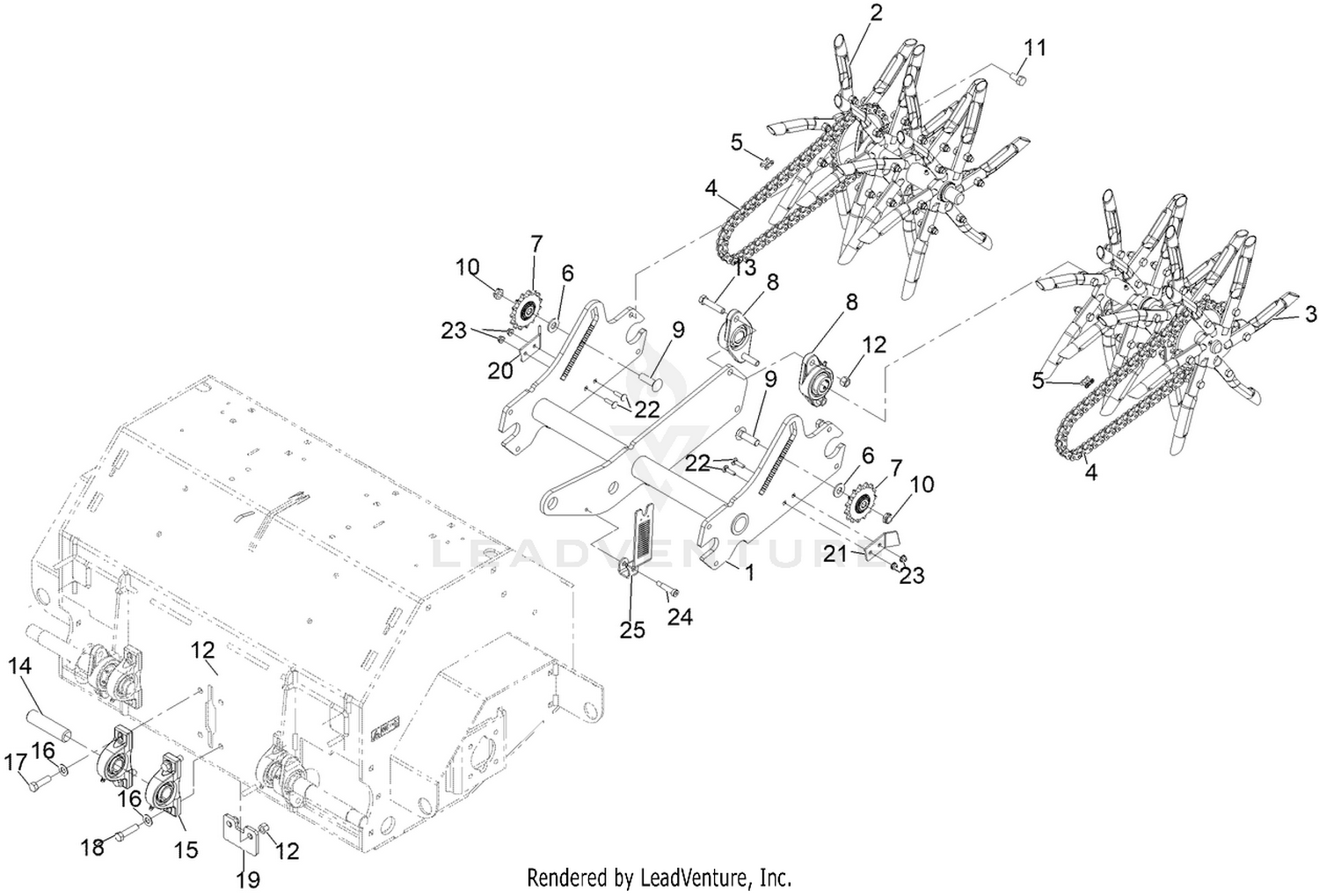

| Ref | Part Number | Description |
|---|
| 1 |
135-5952-03 |
Arm-Trail Price: $454.99 |
| 2 |
135-2507 |
ASM-TINE WHEEL, RH Price: $875.99 |
| 3 |
135-2510 |
ASM-TINE WHEEL, LH Price: $875.99 |
| 4 |
126-8808 |
CHAIN-ROLLER Price: $197.99 |
| 5 |
116-6897 |
LINK-CONNECTING Price: $7.29 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.59 |
| 7 |
126-9108 |
SPROCKET-IDLER, 15T Price: $98.99 |
| 8 |
116-6777 |
BEARING-FLANGE, 2 BOLT Price: $43.99 |
| 9 |
3233-14 |
SCREW-CARR Price: $15.99 |
| 10 |
3296-45 |
NUT-HEX Price: $3.79 |
| 12 |
3296-48 |
NUT-LOCK, NI Price: $0.69 |
| 13 |
324-8 |
SCREW-HH Price: $5.29 |
| 14 |
116-6629 |
SHAFT Price: $19.99 |
| 16 |
3256-25 |
WASHER-FLAT Price: $0.19 |
| 17 |
1-800811 |
SCREW-CAP, HH This part replaces 324-6. Price: $10.99 |
| 18 |
324-7 |
SCREW-HH Price: $1.79 |
| 19 |
116-7327-01 |
PLATE-DOWNSTOP Price: $9.99 |
| 20 |
126-4192-03 |
GUARD-CHAIN, RH Price: $12.99 |
| 21 |
126-4193-03 |
GUARD-CHAIN, LH Price: $12.99 |
| 22 |
3229-30 |
SCREW-CARR Price: $1.39 |
| 23 |
104-7201 |
NUT-HF Price: $1.29 |
| 24 |
114-0239 |
SCREW-HSH Price: $11.99 |
