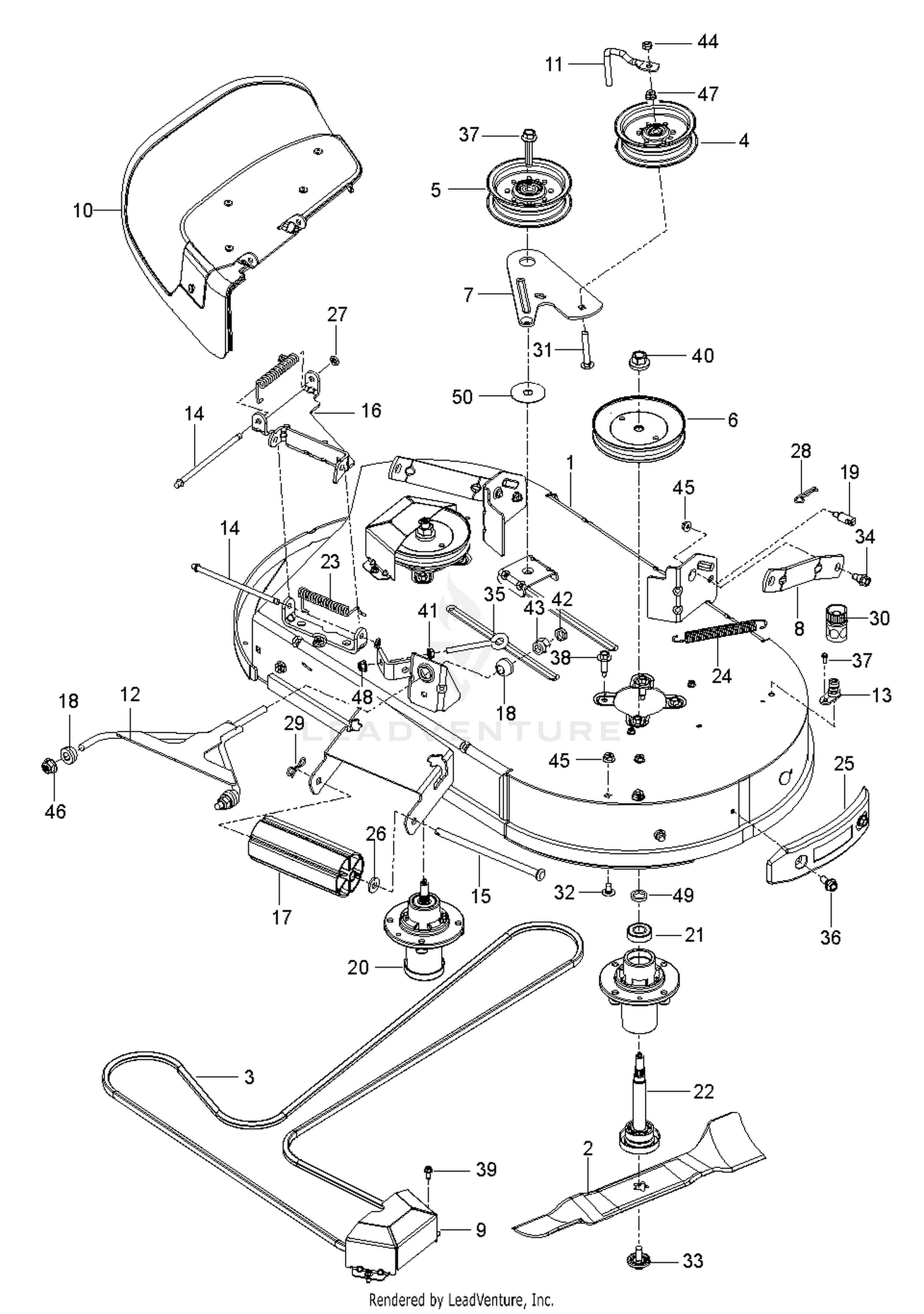

| Ref | Part Number | Description |
|---|
| 1 |
596973202 |
Decks This part replaces 582877602. Price: $999.99 |
| 2 |
586918102 |
BLADE.42.FCS.BAGGING.BLADE. This part replaces 586918101. Price: $27.99 |
| 3 |
587270001 |
BELT.42.FCS.ZTR.DECK.DRIVE Price: $64.99 |
| 4 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 5 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 6 |
532199791 |
PULLEY MANDREL 5.0" Price: $22.99 |
| 7 |
586874002 |
ARM.42"FCS.CLUTCHING.X431 Price: $17.99 |
| 8 |
536050602 |
LINK FIXED MOWER DRAWBAR BLACK This part replaces 587140502. Price: $5.99 |
| 10 |
587305701 |
DEFLECTOR.ASM.42.FCS.ORANGE Price: $69.99 |
| 11 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $7.99 |
| 13 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 14 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 15 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 16 |
586918002 |
BRACKET.42".FCS.DBLE.HINGEX668 Price: $17.99 |
| 17 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 18 |
593842101 |
Bushings Price: $4.99 |
| 19 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 20 |
539131898 |
MANDREL ASM, CAST IRON Price: $69.99 |
| 21 |
532110485 |
BEARING Price: $11.99 |
| 22 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 23 |
587354701 |
SPRING.42.FCS.DEFLECTOR Price: $5.99 |
| 24 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 25 |
582683201 |
BUMPER.42.CLEARCUT.TRIMSDE.ASM Price: $9.99 |
| 26 |
582360501 |
BUSHING.NOSE.ROLLER Price: $3.99 |
| 27 |
532110452 |
NUT PUSH M Price: $2.99 |
| 28 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 29 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 30 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 31 |
596337801 |
Bolts This part replaces 539128101. Price: $4.99 |
| 32 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 33 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 34 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 35 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 36 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 37 |
588438301 |
SCREW.7/16-14 X 2.125.WASHER Price: $5.99 |
| 38 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 39 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 40 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 41 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 42 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $5.99 |
| 43 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 44 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 45 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 46 |
595901901 |
Nuts This part replaces 539119124. Price: $2.99 |
| 47 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 48 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 49 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 50 |
532178515 |
WASHER Price: $5.99 |
