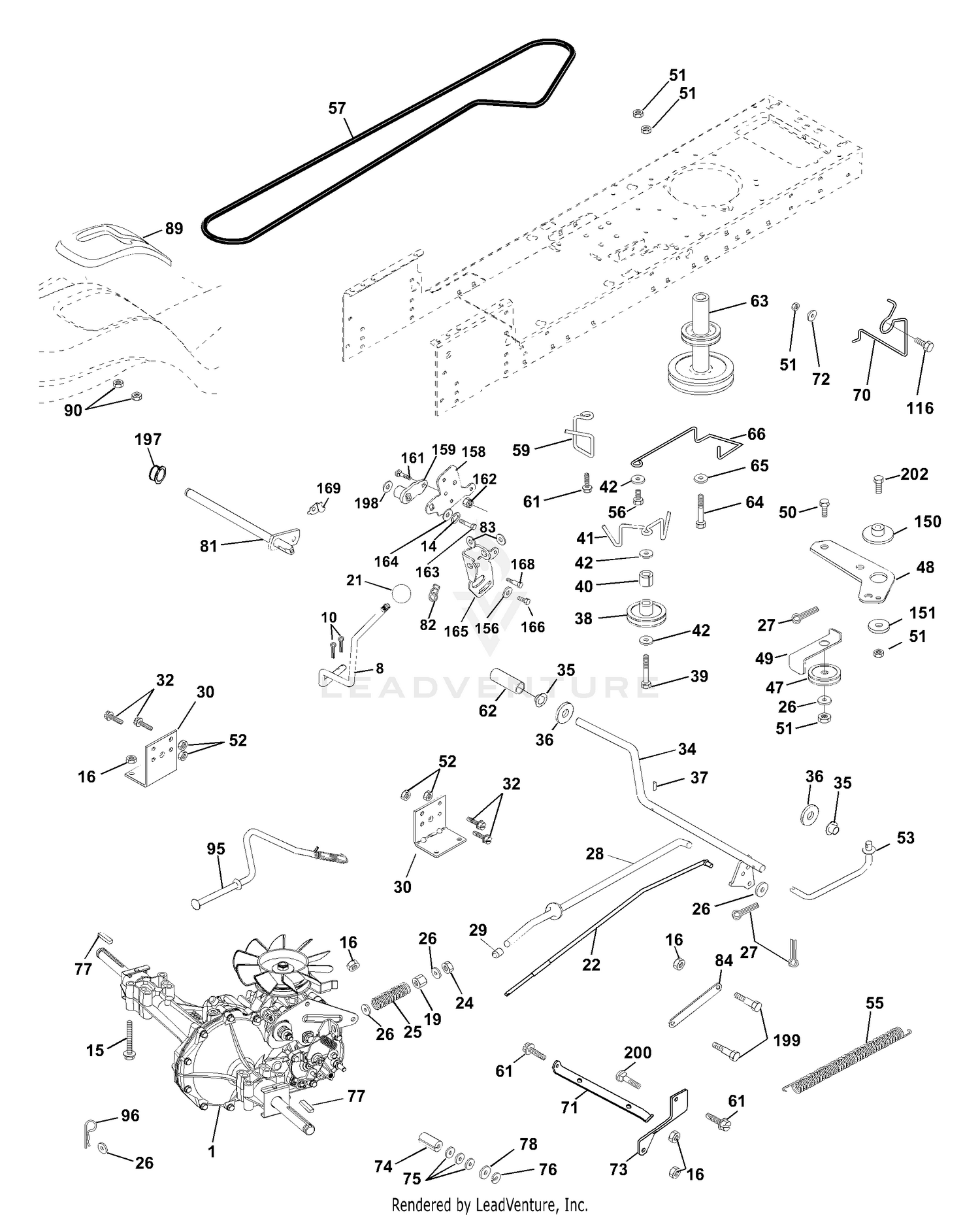

| Ref | Part Number | Description |
|---|
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |
| 2 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 8 |
532165866 |
ROD SHIFT FENDER ADJUST STLT Price: $24.99 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 12 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 13 |
12-5450 |
SCREW Price: $7.99 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
21-7850 |
PLUG-CUP Price: $23.35 |
| 21 |
43-6550 |
RING-SNAP Price: $0.94 |
| 21 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 22 |
46-2210 |
SHIM-BEARING, FRONT Price: $6.91 |
| 22 |
532169498 |
ROD BRAKE HYDRO Price: $17.99 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 24 |
254-90 |
BEARING-CUP Price: $11.29 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 26 |
86-9580 |
UPPER HOUSING SUB ASM Price: $961.30 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 30 |
531149601 |
SERVICE KIT BRACKET BRKT This part replaces 532169592. Price: $8.99 |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 34 |
43-6840 |
HOUSING-LOWER Price: $1,467.48 |
| 34 |
532155071 |
SHAFT, FOOT PEDAL Price: $19.99 |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 38 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 39 |
72-9420 |
VENT Price: $6.85 |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 41 |
532165838 |
KEEPER.BELT.IDLER.FLAT Price: $4.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 47 |
92-4903 |
DIFFERENTIAL CARRIER ASM Price: $3,777.74 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 57 |
532140294 |
DRIVE BELT, LTH & YTH TRACTORS Price: $34.99 |
| 59 |
532169595 |
Keeper, Center Span Price: Call Us |
| 61 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 63 |
532140186 |
PULLEY.ENG.CL.MECH.SLVR.LT/YT Price: $99.99 |
| 64 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 871170764. Price: $2.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 70 |
531165301 |
SERVICE KIT KEEPER BELT This part replaces 532134683. Price: $6.99 |
| 71 |
532169183 |
STRAP TORQUE LH HYDRO Price: $4.99 |
| 72 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 73 |
532169182 |
STRAP TORQUE RH HYDRO Price: $14.99 |
| 74 |
532169496 |
SPACER AXLE Price: $5.46 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532165596 |
SHAFT ASM CROSS TAPERED Price: $32.99 |
| 82 |
532165711 |
SHIFT SPRING Price: $5.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532169843 |
LINK TRANSAXLE Price: $5.99 |
| 89 |
532164890 |
SHIFT CONSOLE BLACK This part replaces 532166510. Price: $19.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 93 |
532142564 |
LINE FUEL HYD 4" Price: $3.99 |
| 95 |
532170201 |
CONTROL ASM. BYPASS HYDRO Price: $8.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 115 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 116 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 150 |
532165850 |
BUSHING.BELLCRANK.GRD.DR Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532165494. Price: $5.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 164 |
819091010 |
Washer 5/8 x .281 x 10 Ga Price: $3.15 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
532166880 |
SCREW Price: $4.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $5.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 198 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $9.99 |
| 199 |
596231101 |
BOLT.5/16-18X.910 ST CLR ZINC This part replaces 532169612. Price: $3.99 |
| 200 |
532078051 |
Bolt Rdhd Sq Neck Unc Price: Call Us |
