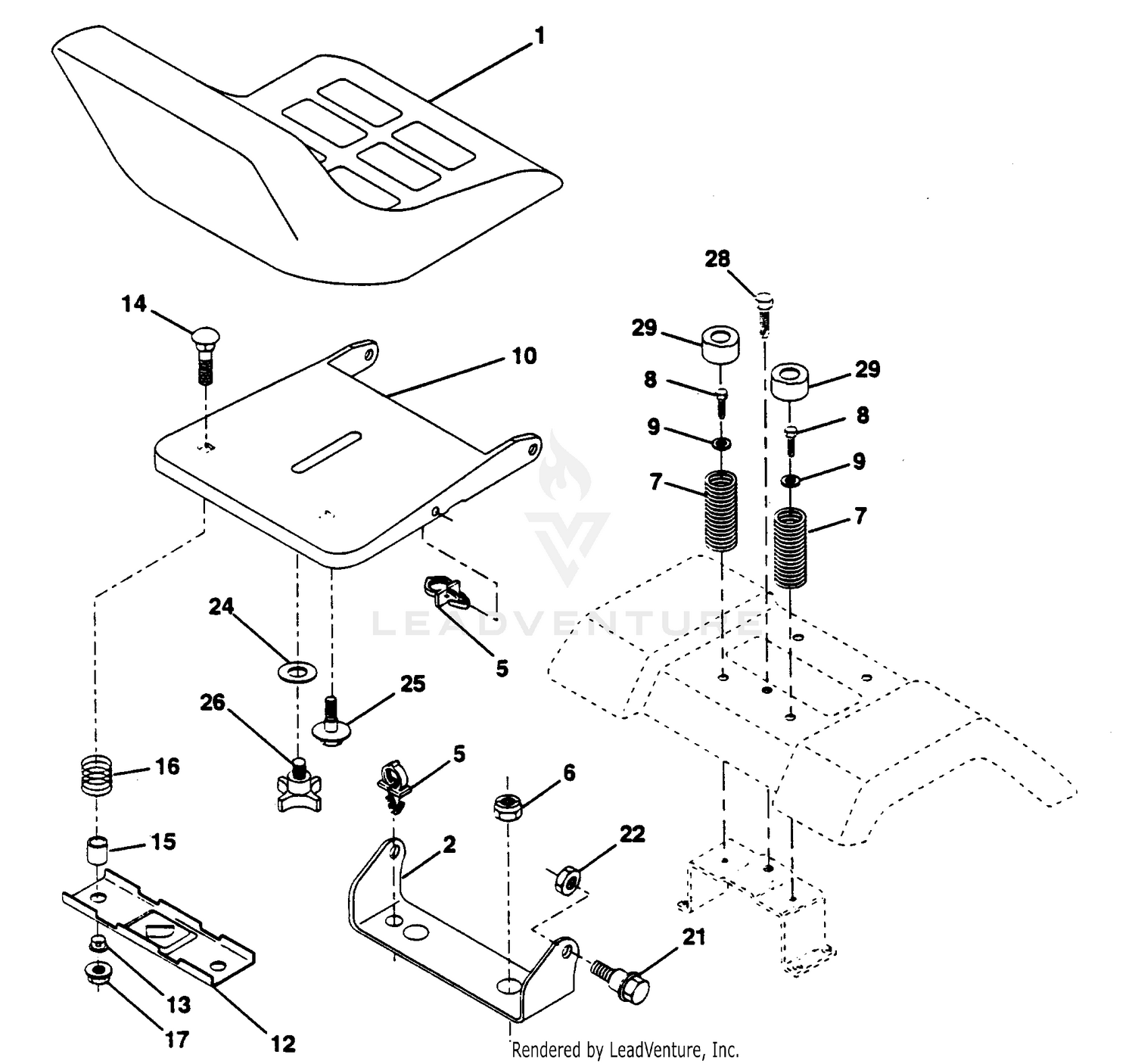

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532127440. Price: $180.99 |
| 1 |
98-9567 |
COLLAR Price: $3.78 |
| 2 |
532140551 |
Bracket Pivot Seat Price: $3.99 |
| 4 |
98-9681 |
SPRING-GOVERNOR Price: $12.06 |
| 5 |
532140407 |
Clip, Push-In Price: $3.99 |
| 5 |
98-9645 |
SPRING-START Price: $11.13 |
| 6 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 7 |
105-3787 |
FORK LEVER ASM This part replaces 98-9680. Price: $220.75 |
| 7 |
539110300 |
SRPING.SEAT This part replaces 532124181. Price: $2.99 |
| 8 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 8 |
98-9568 |
COLLAR Price: $4.68 |
| 9 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99 |
| 9 |
98-9571 |
BEARING-MINIATURIZE Price: $8.24 |
| 10 |
532195530 |
PAN, SEAT This part replaces 532140552. Price: $14.99 |
| 12 |
532174648 |
Bracket Mounting Switch This part replaces 532121246. Price: $4.99 |
| 13 |
532121248 |
Bushing Snap Blk Nyl 50 Id Price: $3.99 |
| 13 |
98-9682 |
GASKET Price: $0.95 |
| 14 |
130-8182 |
KIT-SHAFT COVER, FORK LEVER This part replaces 98-9569. Price: $13.53 |
| 14 |
872050411 |
Bolt Rdhd Sht Nk 1/4-20x1-3/8 Price: $2.99 |
| 15 |
532121249 |
Spacer Split 28x 88 Yel Zinc Price: $3.99 |
| 16 |
532123740 |
Spring Cprsn 1 310 Blk Pnt Price: $3.99 |
| 17 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 21 |
532139888 |
Bolt Shoulder 5/16-18 Unc Blkz Price: $2.99 |
| 22 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 24 |
819171912 |
Washer 17/32 X 1-3/16 X 12 Ga Price: $3.99 |
| 25 |
532127018 |
Bolt Shoulder 5/16-18 X 62 Price: $3.99 |
| 26 |
532166369 |
Knob Seat Adj. Wingnut This part replaces 532120068. Price: $4.99 |
| 28 |
817490608 |
Screw Thdrol 3/8-36 x 1/2 Price: $3.99 |
