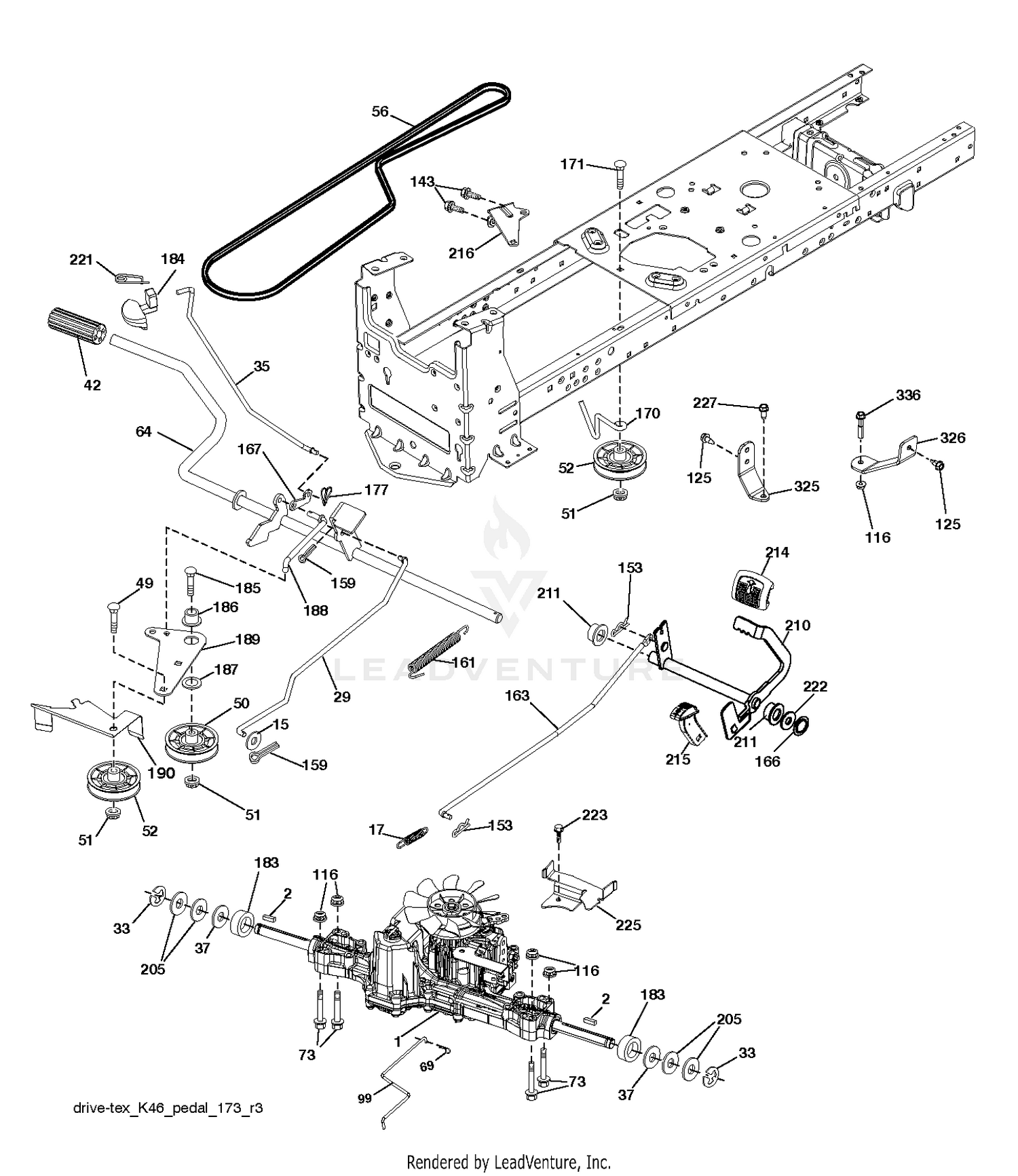

| Ref | Part Number | Description |
|---|
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 10 |
127-0453 |
GEAR CASE ASM Price: $677.86 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 Price: $2.99 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 20 |
98-7487 |
PLUG Price: $3.18 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
127-0425 |
PLUG Price: $4.34 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
590605902 |
ROD ROD.PARKINGBRAKE.GT.HUSQ/P Price: $7.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 40 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532008883. Price: $4.99 |
| 49 |
596136201 |
Bolts Price: $3.99 |
| 50 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts Price: $27.99 |
| 60 |
107-9071 |
SCREW Price: $0.36 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 73 |
596136501 |
Bolts Price: $3.99 |
| 80 |
98-9544 |
SPRING Price: $0.94 |
| 90 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 99 |
582404501 |
ARM.PIVOTING.TCRD.GEN2.5.BAGGE Price: $5.99 |
| 100 |
98-9380 |
BALL Price: $0.84 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 116 |
596135701 |
GSPW Nuts Price: $2.99 |
| 120 |
100-1765 |
BOLT Price: $1.59 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 143 |
596030701 |
Screws Price: $2.99 |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 153 |
532004497 |
RETAINER M Price: $4.99 |
| 159 |
596029501 |
Pins Price: $2.99 |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts Price: $2.99 |
| 177 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 180 |
100-2203 |
NUT-FLANGE Price: $0.87 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 200 |
119-8038 |
SEAL-OIL Price: $40.16 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 210 |
105-3710 |
STUD Price: $1.16 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
586606502 |
PEDAL.COVER.REVERSE.CRD.X428BK Price: $17.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
99-3514 |
COVER Price: $11.33 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 223 |
598662601 |
BOLTS Price: $1.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 227 |
596135901 |
Bolts Price: $1.99 |
| 230 |
117-7562 |
GASKET-PUMP, FUEL Price: $2.98 |
| 240 |
100-2203 |
NUT-FLANGE Price: $0.87 |
| 250 |
127-0504 |
SENSOR-REVOLUTION Price: $258.27 |
| 260 |
99-8363 |
BOLT-FLANGE Price: $1.66 |
| 270 |
98-7654 |
GASKET Price: $8.84 |
| 280 |
127-0400 |
BOLT-HEX Price: $0.83 |
| 290 |
99-3515 |
PLUG-GEARCASE Price: $9.00 |
| 300 |
108-3841 |
FILTER-OIL Price: $10.81 |
| 310 |
98-9388 |
JOINT-PIPE Price: $31.66 |
| 325 |
585668505 |
BRACKET TORQUE STRAP This part replaces 585668502. Price: $5.99 |
| 326 |
585670803 |
BRACKET TORQUE STRAP This part replaces 585670802. Price: $4.99 |
| 336 |
587259602 |
Bolts Price: $3.99 |
