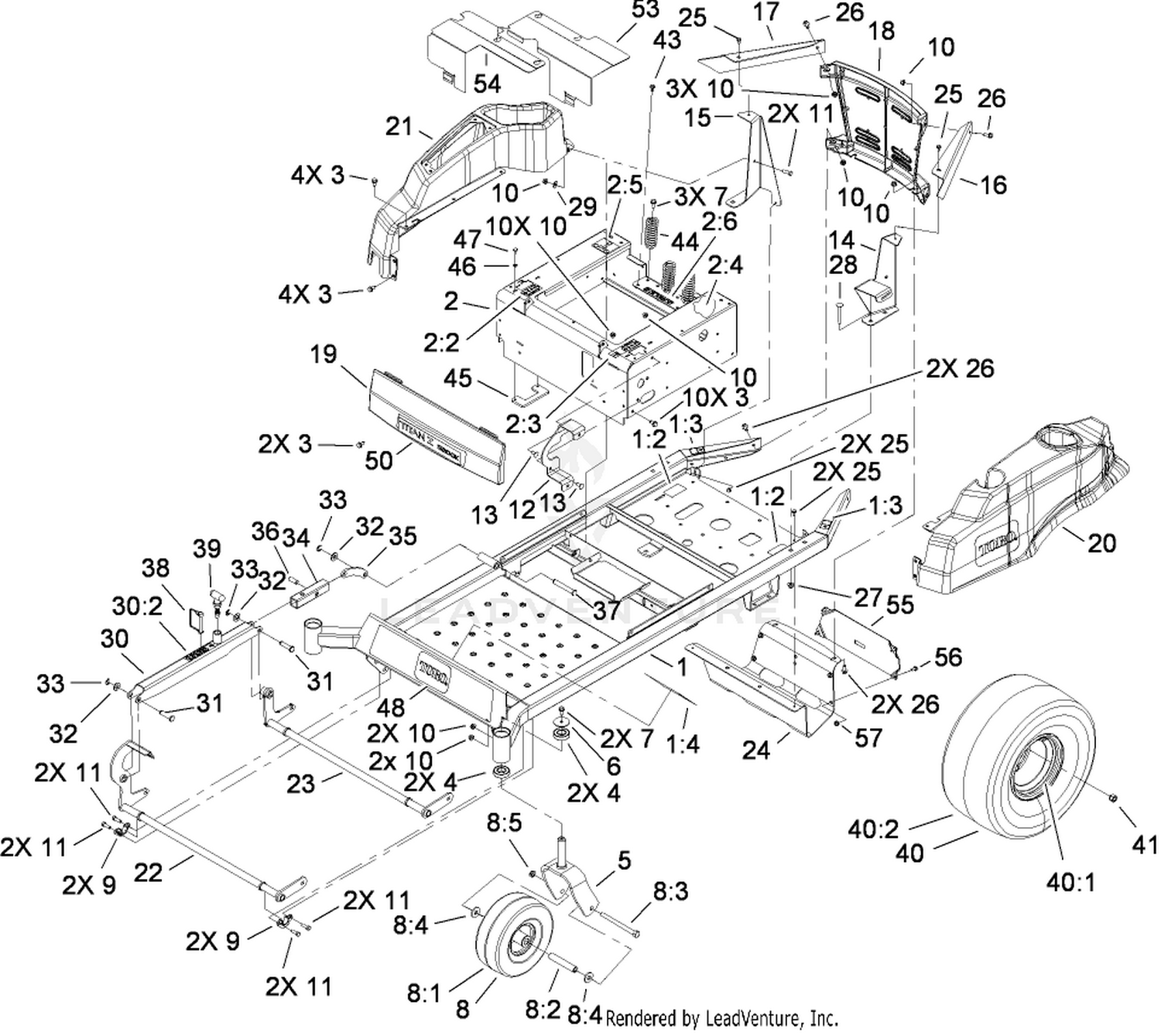

| Ref | Part Number | Description |
|---|
| 1 |
109-8825 |
FRAME ASM Price: $1,238.39 |
| 2 |
116-0945 |
ASM,SEAT BOX SERVICE This part replaces 109-8845. Price: $668.60 |
| 3 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 4 |
109-3678 |
BEARING-BALL Price: $9.46 |
| 5 |
116-0100-01 |
WLD,CASTER FORK This part replaces 109-6218-01. Price: $88.41 |
| 6 |
109-3724 |
WASHER Price: $2.12 |
| 7 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 8 |
109-6405 |
CASTER WHEEL ASM Price: $136.20 |
| 9 |
109-3667 |
BEARING-FLANGE Price: $5.04 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 12 |
109-6045-03 |
BRACKET-TANK MOUNT Price: $40.36 |
| 13 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 14 |
109-6867-03 |
BRACKET-REAR TANK, LH Price: $64.45 |
| 15 |
109-3406-03 |
BRACKET-REAR CONSOLE, RH Price: $33.39 |
| 16 |
109-3381-03 |
GUARD-ENGINE, LH Price: $23.82 |
| 17 |
109-3391-03 |
GUARD-ENGINE, RH Price: $23.82 |
| 18 |
109-5444-03 |
CASTING-REAR Price: $100.45 |
| 19 |
109-5432 |
PANEL-FRONT Price: $29.94 |
| 20 |
109-5441 |
FENDER-LH Price: $86.56 |
| 21 |
109-5442 |
FENDER-RH Price: $86.56 |
| 22 |
109-8870-03 |
FRONT SHAFT ASM Price: $145.72 |
| 23 |
109-8871-03 |
REAR SHAFT ASM Price: $121.00 |
| 24 |
114-1658-03 |
GUARD-MUFFLER Price: $124.93 |
| 25 |
9266714 |
SCREW-HWH Price: $0.80 |
| 26 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 27 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 28 |
3231-9 |
SCREW-CARR Price: $1.18 |
| 29 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 30 |
109-8758 |
HEIGHT ADJUSTMENT ASM Price: $135.96 |
| 31 |
109-5819 |
PIN-CLEVIS Price: $7.05 |
| 32 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 33 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 34 |
109-8755 |
STOP-HEIGHT ADJUST Price: $20.50 |
| 35 |
109-5814 |
ARM-FLOAT LINK Price: $11.03 |
| 36 |
109-5818 |
PIN-PIVOT Price: $3.25 |
| 37 |
109-6172 |
PIN-CLEVIS Price: $15.71 |
| 38 |
93-4696 |
PIN-HITCH Price: $5.84 |
| 39 |
109-6177 |
PIN-SPRING Price: $35.29 |
| 41 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 43 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 44 |
92-7054 |
SPRING-COMPRESSION Price: $13.32 |
| 45 |
109-6214 |
STOP-MOTION CONTROL Price: $24.22 |
| 46 |
1-303435 |
WASHER-SPRING Price: $1.39 |
| 47 |
321-2 |
SCREW-HH Price: $2.79 |
| 48 |
109-9142 |
DECAL-FRONT PANEL Price: $16.76 |
| 50 |
109-9144 |
DECAL-TITAN Z Price: $12.57 |
| 53 |
109-8875-03 |
COVER-CE HYDRO FAN, LH Price: $35.32 |
| 54 |
109-8883-03 |
COVER-CE HYDRO FAN, RH Price: $35.32 |
| 55 |
115-2592-03 |
SHIELD-HEAT Price: $64.73 |
| 56 |
3234-33 |
SCREW-HHF Price: $0.79 |
