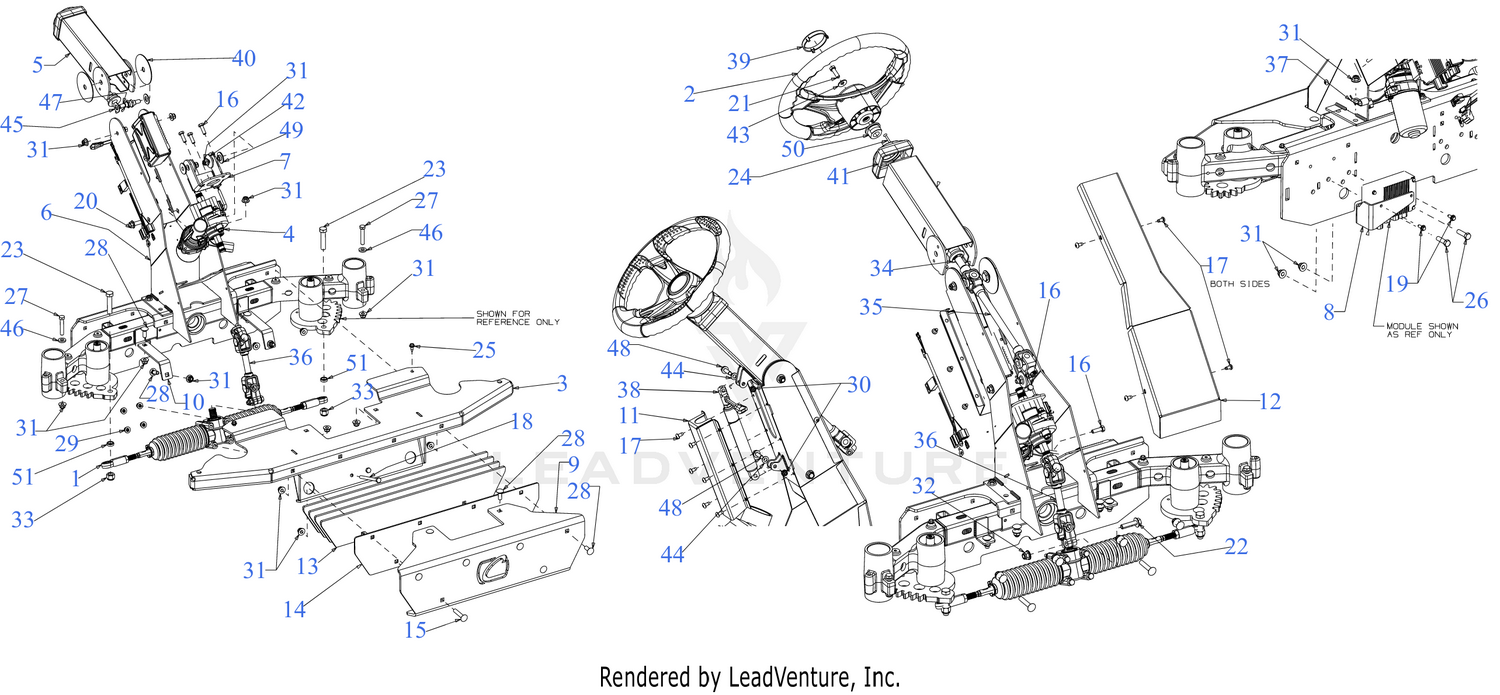

| Ref | Part Number | Description |
|---|
| 1 |
617P05123B |
STEERING GEARBOX Price: $547.44 |
| 2 |
631-04008B |
STEERING WHEEL Price: $87.97 |
| 4 |
980-00458A |
POWER STEERING (W/MODULE AND HARNESS) Price: $1,740.39 |
| 13 |
703E29397 |
WEIGHT PLATE Price: $40.80 |
| 14 |
703E29398 |
BUMPER BACKING PLATE Price: $36.03 |
| 15 |
710-04157 |
CARRIAGE BOLT 3/8-16 x 2 Price: $7.85 |
| 16 |
710-04629 |
SCREW M8-1.25 x 25 GR8.8 Price: $2.64 |
| 17 |
710-05070A |
SCREW 1/4-20 x .5 Price: $6.01 |
| 18 |
710-05410 |
SCREW 5/16-18 x 4.00 GR5 Price: $3.37 |
| 19 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 20 |
710-06359A |
SCREW 3/8-16 x 1.25 GR5 Price: $4.13 |
| 21 |
710-0643 |
SCREW 5/16-18 x 1.00 GR5 Price: $5.99 |
| 22 |
710-08354 |
HEX FLANGE BOLT M10-1.50 Price: $4.30 |
| 23 |
710-11665 |
HEX HEAD CAP SCREW 1/2-13x2.25 GR8 Price: $6.25 |
| 24 |
710-1331 |
SCREW #10-16 x 1.25 Price: $3.91 |
| 25 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 26 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 27 |
710-3144 |
SCREW 3/8-16 x 2.0 GR5 Price: $4.02 |
| 28 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 29 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 30 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 31 |
712-04065 |
NUT Price: $3.68 |
| 32 |
712-05881 |
HEX FLANGE NUT M10-1.50 Price: $1.48 |
| 33 |
712-3083 |
HEX LOCK NUT NYLON Price: $4.05 |
| 34 |
716-0231 |
E-RING Price: $3.50 |
| 35 |
917-04905 |
STEERING SHAFT TOP Price: $200.90 |
| 36 |
717P06007 |
LOWER STEERING SHAFT Price: $170.88 |
| 37 |
726-04124 |
J TYPE CLIP Price: $3.14 |
| 38 |
727-05163 |
TILT STEERING DAMPENING CYLINDER Price: $85.92 |
| 39 |
731-04039 |
STEERING WHEEL CAP Price: $7.17 |
| 40 |
731-08236 |
COLUMN PLATE Price: $15.73 |
| 41 |
731-11491A |
STEERING COLUMN COVER Price: $12.77 |
| 42 |
736-0227 |
FLAT WASHER .390x1.500x.134 Price: $5.78 |
| 43 |
736-0242 |
BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 44 |
736-0264 |
FLAT WASHER Price: $5.99 |
| 45 |
736-0414 |
TEFLON WASHER .570x1.120x.062 Price: $3.82 |
| 46 |
736-3010 |
FLAT WASHER Price: $4.02 |
| 47 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 48 |
738-04185 |
SHOULDER SCREW Price: $7.45 |
| 49 |
738-04363 |
SHOULDER SPACER Price: $5.07 |
| 50 |
741-07090 |
FLANGE BEARING Price: $13.67 |
