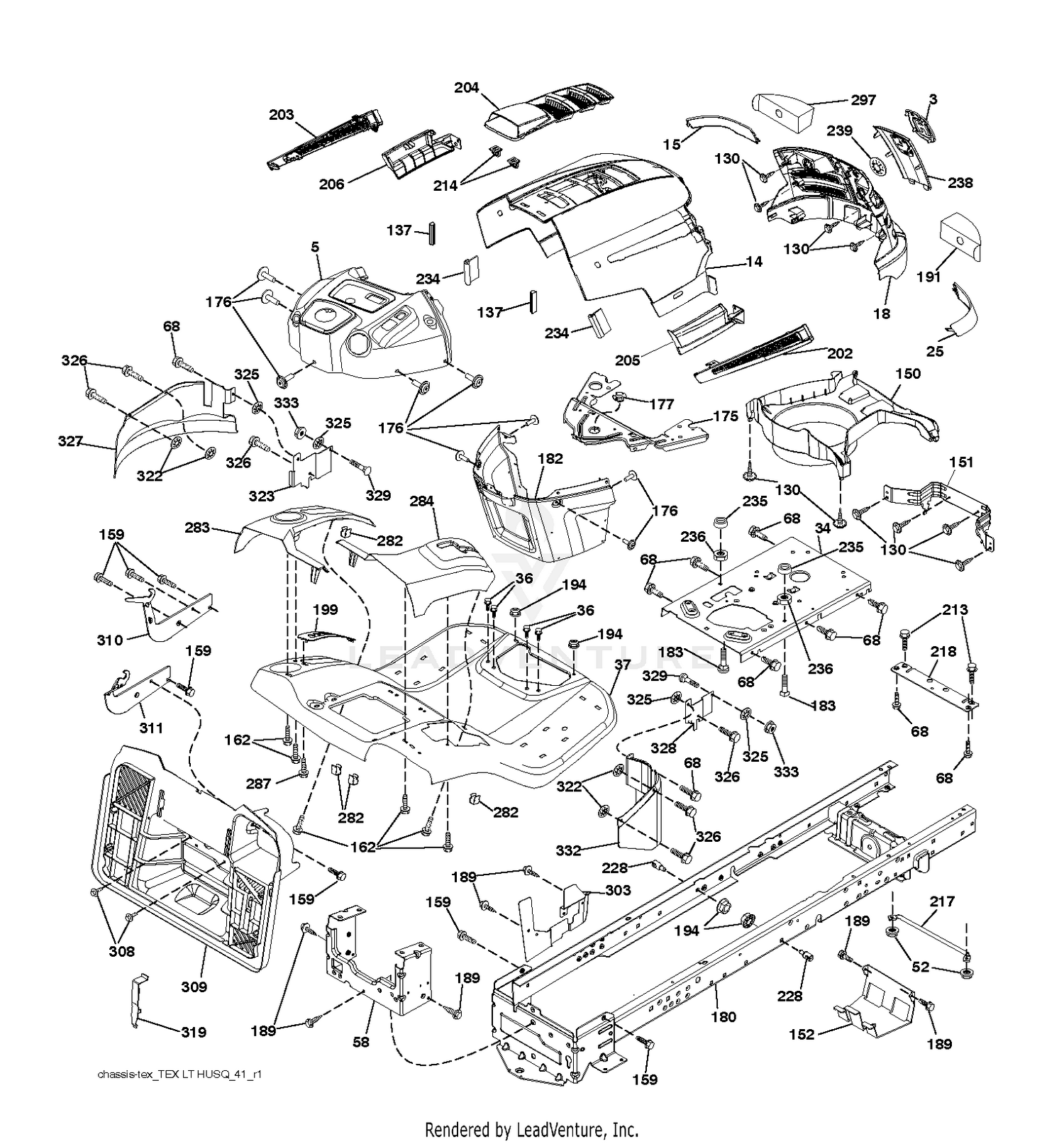

| Ref | Part Number | Description |
|---|
| 3 |
532430771 |
LOGO.HUSQ.GT.LT.CROWN.H This part replaces 532405012. Price: $5.99 |
| 5 |
532438964 |
SUBASM.DASH.UPPER.W/BUMPER This part replaces 532407592. Price: $49.99 |
| 14 |
532441267 |
HOOD.HUSQVARNA.LT.ORANGE Price: $79.99 |
| 15 |
532406664 |
LENS.HUSQVARNA LT.LH This part replaces 532411079. Price: $14.99 |
| 18 |
584382301 |
GRILLE.SVC.HUSQVARNA.L This part replaces 532426963. Price: $54.99 |
| 25 |
532406663 |
LENS.HUSQVARNA LT.RH This part replaces 532411078. Price: $14.99 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532441108 |
FENDER.TEX.SRD.CRD.FRN.GUARDS Price: $139.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 58 |
531152601 |
SERVICE KIT DRAWBAR FENDER DRA This part replaces 532412280. Price: $44.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 150 |
532406662 |
AIR DUCT Price: $24.99 |
| 151 |
532407807 |
BRACKET PIVOT Price: $27.99 |
| 152 |
531169901 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532199535. Price: $19.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 175 |
532199472 |
CROSSMEMBER Price: $24.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 180 |
597630801 |
CHASS.WLD.TL.14GA/2PC.38/42/46 This part replaces 532414685. Price: $219.99 |
| 182 |
532407176 |
DASH.LOWER.PREDATOR LT Price: $69.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
583358401 |
INSERT.REFLECTIVE.RH. This part replaces 532416501. Price: $11.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 199 |
583371401 |
PLATE.DECKLIFT.SRD This part replaces 532418739. Price: $7.99 |
| 202 |
532406671 |
VENT SIDE HOOD This part replaces 532411074. Price: $8.99 |
| 203 |
532406670 |
VENT SIDE HOOD This part replaces 532411075. Price: $5.99 |
| 204 |
532441375 |
SUBASM.TOP.VENT.HUSQ.LT This part replaces 532411116. Price: $17.99 |
| 205 |
532406668 |
SKIRT.SIDE.HUSQVARNA.LT.RH.GRE This part replaces 532411076. Price: $11.99 |
| 206 |
532441345 |
SKIRT.SIDE.HUSQVARNA.LT.LEFT This part replaces 532411077. Price: $11.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 238 |
532407881 |
TRIM.HUSQ LT.668 This part replaces 532411119. Price: $19.99 |
| 239 |
532404883 |
IS ITO Price: $5.99 |
| 282 |
532414110 |
CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 |
532440531 |
CONSL.DECKLIFT.LH.SRD.TEX.CRD Price: $39.99 |
| 284 |
597177801 |
Consoles This part replaces 532440859. Price: $44.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 297 |
532406665 |
INSERT REFLECTIVE Price: $6.99 |
| 303 |
583417601 |
SHIELD.CHASSIS.FRENCH.LH.SRD This part replaces 532425151. Price: $25.99 |
| 308 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 309 |
584454501 |
BACKPLATE.ASM.BGR.V2.SRD.2010 This part replaces 532430246. Price: $149.99 |
| 310 |
583586501 |
LH.ADJUST.HANGER.BRACKET.ASM This part replaces 532446636. Price: $32.99 |
| 311 |
583586601 |
RH.ADJUST.HANGER.BRACKET.ASM This part replaces 532446637. Price: $32.99 |
| 319 |
532174662 |
BRACKET.ACTUATOR.BAGGER.SRD Price: $4.99 |
| 322 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 323 |
583470301 |
GUARD.FRONT.LH.SRD.FRENCH This part replaces 532431488. Price: $22.99 |
| 325 |
583400601 |
PALNUT.5/16" This part replaces 532423063. Price: $2.99 |
| 326 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 327 |
583470101 |
GUARD.FRENCH.SRD.LHS This part replaces 532431483. Price: $22.99 |
| 328 |
583470201 |
GUARD.FRONT.RH.SRD.FRENCH This part replaces 532431487. Price: $22.99 |
| 329 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 332 |
583470001 |
GUARD.FRENCH.SRD.RHS This part replaces 532431482. Price: $22.99 |
| 333 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
