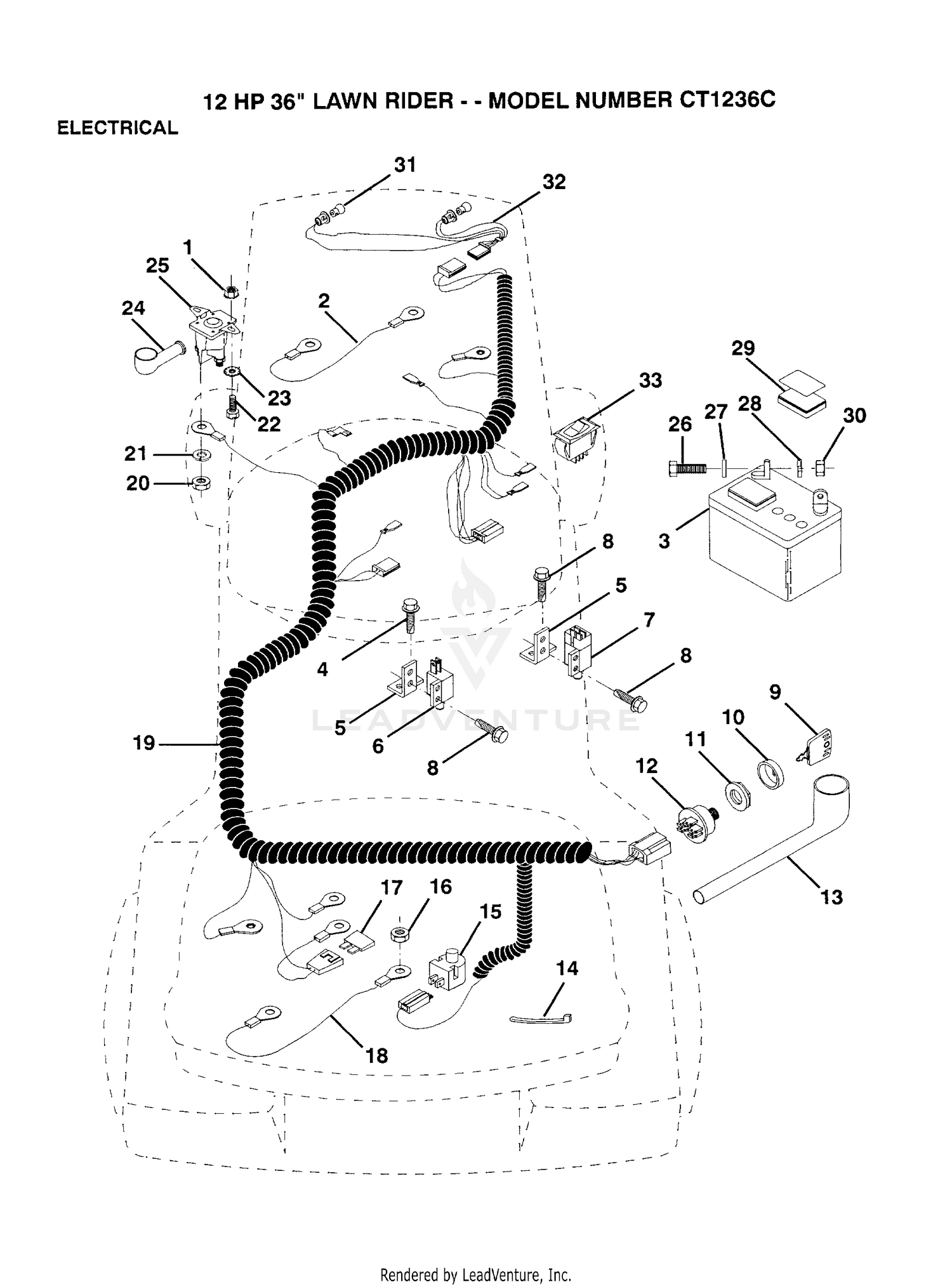

| Ref | Part Number | Description |
|---|
| 1 |
73510400 |
NUT Price: Call Us |
| 1 |
99-5608-03 |
SPRING-TORSION, RH Price: $35.46 |
| 2 |
108423X |
CABLE ASM. Price: Call Us |
| 2 |
99-5609-03 |
SPRING-TORSION, LH Price: $35.46 |
| 3 |
121265X |
SUB= 123899X Price: Call Us |
| 3 |
82-6840 |
SPACER Price: $3.31 |
| 4 |
17211008 |
SCREW Price: Call Us |
| 4 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 5 |
108236X |
BRACKET LT Price: Call Us |
| 5 |
322-7 |
SCREW-HH Price: $0.89 |
| 6 |
104445X |
SWITCH-INTER. GT Price: Call Us |
| 6 |
32128-20 |
NUT-HF Price: $0.99 |
| 7 |
109553X |
SWITCH INTERLOCKT Price: Call Us |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 8 |
17021008 |
SCREW Price: Call Us |
| 8 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 9 |
122147X |
KEY Price: Call Us |
| 9 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 10 |
123620X |
SUB= 141226 Price: Call Us |
| 10 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 11 |
124211X |
NUT IGNITION Price: Call Us |
| 11 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 12 |
4406R |
SUB= STD365402 Price: Call Us |
| 13 |
124083X |
COVER IGNITION SW Price: Call Us |
| 13 |
99-5610 |
PIN Price: $40.16 |
| 14 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 14 |
7192 |
J WIRE TIE Price: Call Us 7192 J |
| 15 |
121305X |
SWITCH SEAT Price: Call Us |
| 15 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 16 |
73510500 |
NUT Price: Call Us |
| 16 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 17 |
108824X |
FUSE HYT Price: Call Us |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
128353 |
CABLE ASSY Price: Call Us |
| 18 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 19 |
132222 |
SUB= 532132222 Price: Call Us |
| 19 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 20 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
10090400 |
SUB= 10040400 Price: Call Us |
| 21 |
106-9004 |
BUMPER Price: $6.35 |
| 22 |
74780408 |
BOLT Price: Call Us |
| 22 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 23 |
11050400 |
LOCKWASHER Price: Call Us |
| 23 |
99-6903-03 |
NO. 3 LIFT ARM ASM Price: $966.43 |
| 24 |
131563 |
SUB= 154336 Price: Call Us |
| 24 |
99-6902-03 |
NO. 2 LIFT ARM ASM Price: $867.02 |
| 25 |
109081X |
SUB= 146154 Price: Call Us |
| 26 |
74760412 |
BOLT LT Price: Call Us |
| 27 |
19091016 |
WASHER Price: Call Us |
| 28 |
10040400 |
LOCKWASHER Price: Call Us |
| 30 |
73220400 |
SUB= 50675 Price: Call Us |
| 31 |
7662J |
SUB= 4152J Price: Call Us |
| 32 |
127441X |
SUB= 136850 Price: Call Us |
