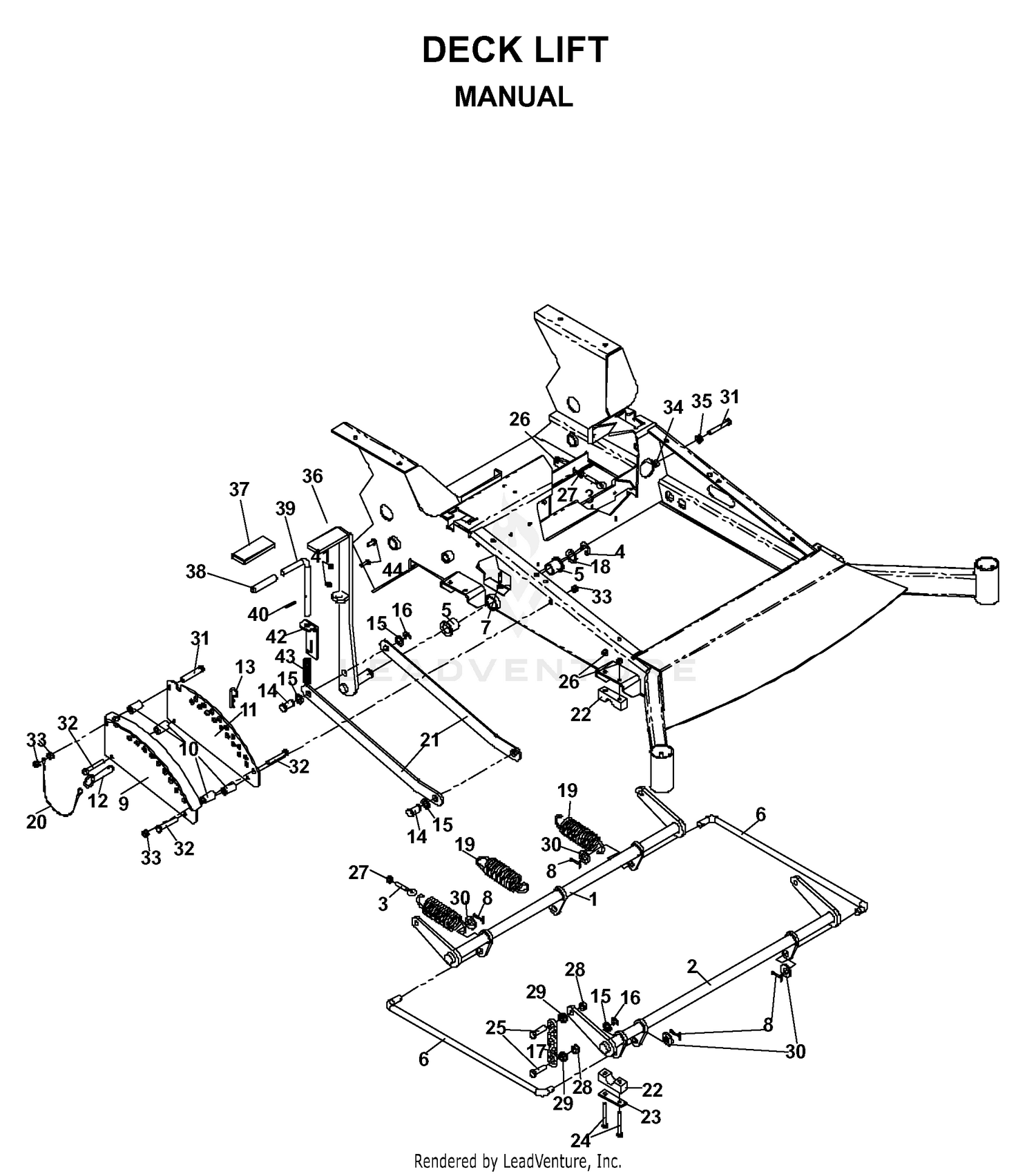

| Ref | Part Number | Description |
|---|
| 1 |
104-4620 |
SEAT Price: $273.15 |
| 1 |
539108354 |
SHAFT LIFT REAR Price: $108.99 |
| 2 |
100-4928 |
BELT-SEAT Price: $280.73 |
| 2 |
539108355 |
LIFT SHAFT Price: $108.99 |
| 3 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 3 |
539101982 |
EYEBOLT, RH Price: $37.99 |
| 4 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 4 |
539101802 |
E-RING 7/8 Price: $2.99 |
| 5 |
539101232 |
BUSHING, FLANGED Price: $11.99 |
| 5 |
92-8990 |
ADJUSTER-SLAVE Price: $54.82 |
| 6 |
539104310 |
CONNECTING LINK Price: $22.99 |
| 6 |
92-8991 |
ADJUSTER (W/LATCH) Price: $73.04 |
| 7 |
3212-4 |
SCREW-HH Price: $2.73 |
| 7 |
539104761 |
GREASE ZERK LONG Price: $2.99 |
| 8 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 8 |
539990654 |
COTTER PIN Price: $2.99 |
| 9 |
539104321 |
ADJ. PLATE WLDMNT Price: $63.99 |
| 9 |
92-6282 |
SWITCH-SEAT Price: $31.99 |
| 10 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 10 |
539104530 |
DECK LIFT SPACER Price: $5.99 |
| 11 |
104-0467-03 |
STRAP-SUPPORT, SEAT Price: $165.70 |
| 11 |
539104323 |
ADJ. PLATE PAINTED Price: $23.99 |
| 12 |
596917701 |
Pins This part replaces 539102526. Price: $4.99 |
| 12 |
95-8896 |
FOAM Price: $32.41 |
| 13 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 13 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 14 |
104-0466 |
SPACER-TUBE Price: $27.25 |
| 14 |
539105060 |
CLEVIS PIN Price: $4.99 |
| 15 |
323-14 |
SCREW-HH Price: $1.34 |
| 15 |
596933401 |
Washers This part replaces 539991043. Price: $2.99 |
| 16 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 16 |
539105069 |
E-RING 5/8 Price: $2.99 |
| 17 |
121-3644-03 |
SHIELD-HEAT Price: $73.25 |
| 17 |
594722002 |
LIFT This part replaces 539102641. Price: $4.99 |
| 18 |
539923787 |
BSHG .875 X 1.375 X .074 ZD Price: $2.99 |
| 18 |
92-7307 |
LH ARMREST ASM Price: $200.08 |
| 19 |
539104760 |
DECK LIFT SPRING Price: $5.99 |
| 19 |
92-7306 |
RH ARMREST ASM Price: $198.41 |
| 20 |
539105059 |
LANYARD Price: $4.99 |
| 21 |
539105050 |
LIFT LINKAGE,PAINTED Price: $23.99 |
| 22 |
539104808 |
PILLOW BLOCK Price: $7.99 |
| 23 |
584392702 |
REINFORCEMENT.PLATEX431 This part replaces 539104807. Price: $11.99 |
| 24 |
539991046 |
BOLT 5/16C X 2 1/2 Price: $3.99 |
| 25 |
594944601 |
Bolts This part replaces 539101175. Price: $2.99 |
| 26 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 27 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 28 |
539990839 |
NUT 7/16C CENTERLOCK Price: $2.99 |
| 29 |
596577901 |
Nuts This part replaces 539102582. Price: $2.99 |
| 30 |
539976982 |
WASHER 5/8 FLAT Price: $3.99 |
| 31 |
596434201 |
Bolts This part replaces 539990637. Price: $3.99 |
| 32 |
596564404 |
Bolts This part replaces 539990629. Price: $2.99 |
| 33 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 34 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 35 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 36 |
539108322 |
LIFT LEVER WELDMENT Price: $84.99 |
| 38 |
539101050 |
GRIP Price: $2.99 |
| 39 |
539104523 |
PIN Price: $7.99 |
| 40 |
539106532 |
ROLL PIN Price: $2.99 |
| 41 |
539990761 |
NUT 1/4C CENTER LOCK Price: $2.99 |
| 42 |
539103534 |
PIN MT, UPPER Price: $22.99 |
| 43 |
539101058 |
SPRING Price: $3.99 |
| 44 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 539106345 |
539106345 |
PLUG Price: $2.99 |
