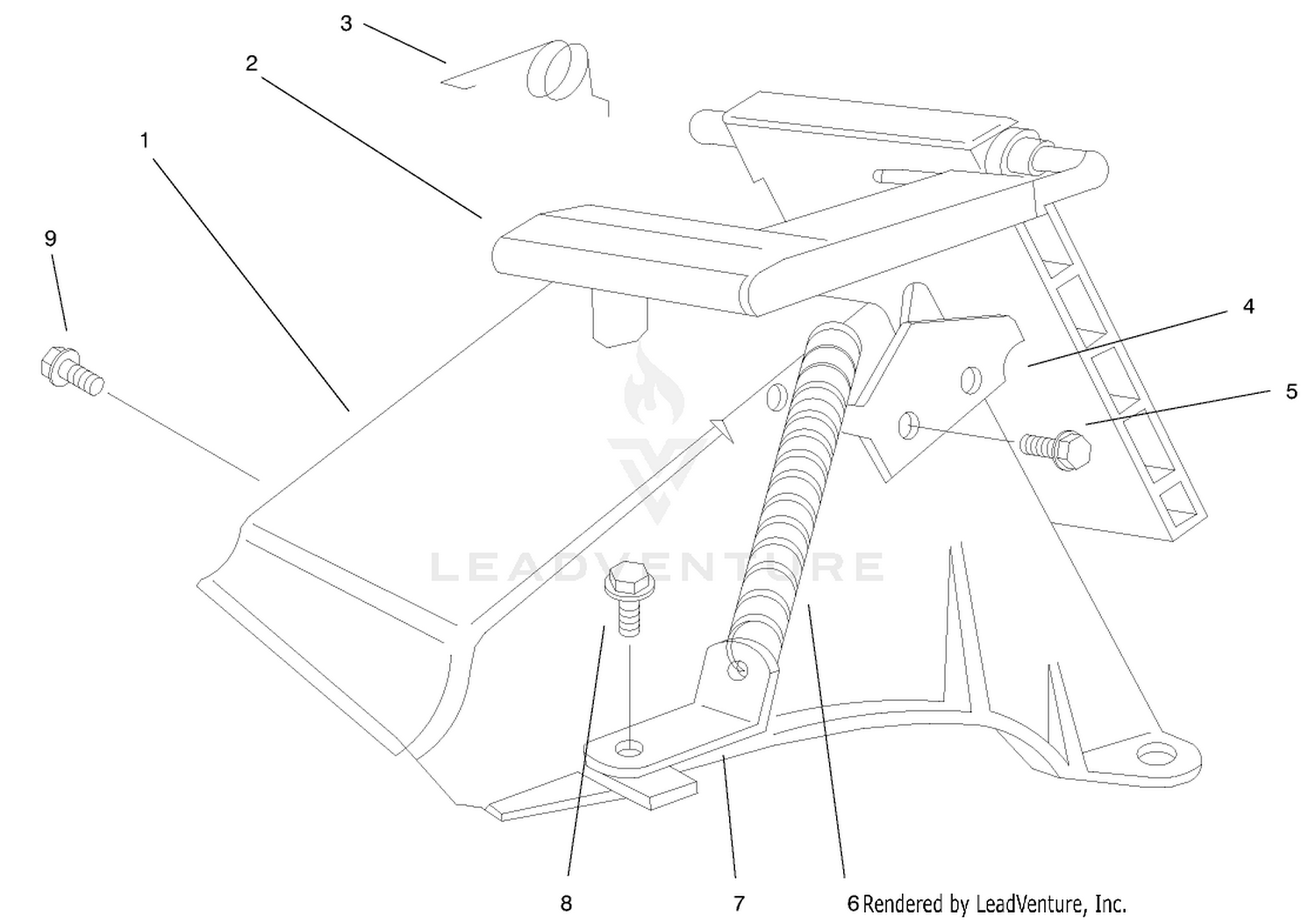

Rear Bagging Discharge Chute Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 82-9151 | TUNNEL-DISCHARGE Price: $109.15 |
| 2 | 93-7351 | DISCHARGE DOOR ASM Price: $74.60 |
| 3 | 76-4660 | SPRING-DOOR Price: $10.99 |
| 4 | 93-3154 | LATCH-PLATE Price: $4.89 |
| 5 | 46-8090 | SCREW-PLASTITE Price: $1.84 |
| 6 | 80-3770 | RETAINER-DOOR Price: $1.88 |
| 7 | 71-9350 | BRACKET-SPRING Price: $9.34 |
| 8 | 46-6811 | SCREW-HWH Price: $3.09 |
| 9 | 46-6810 | SCREW AND WASHER ASM Price: $3.49 |
