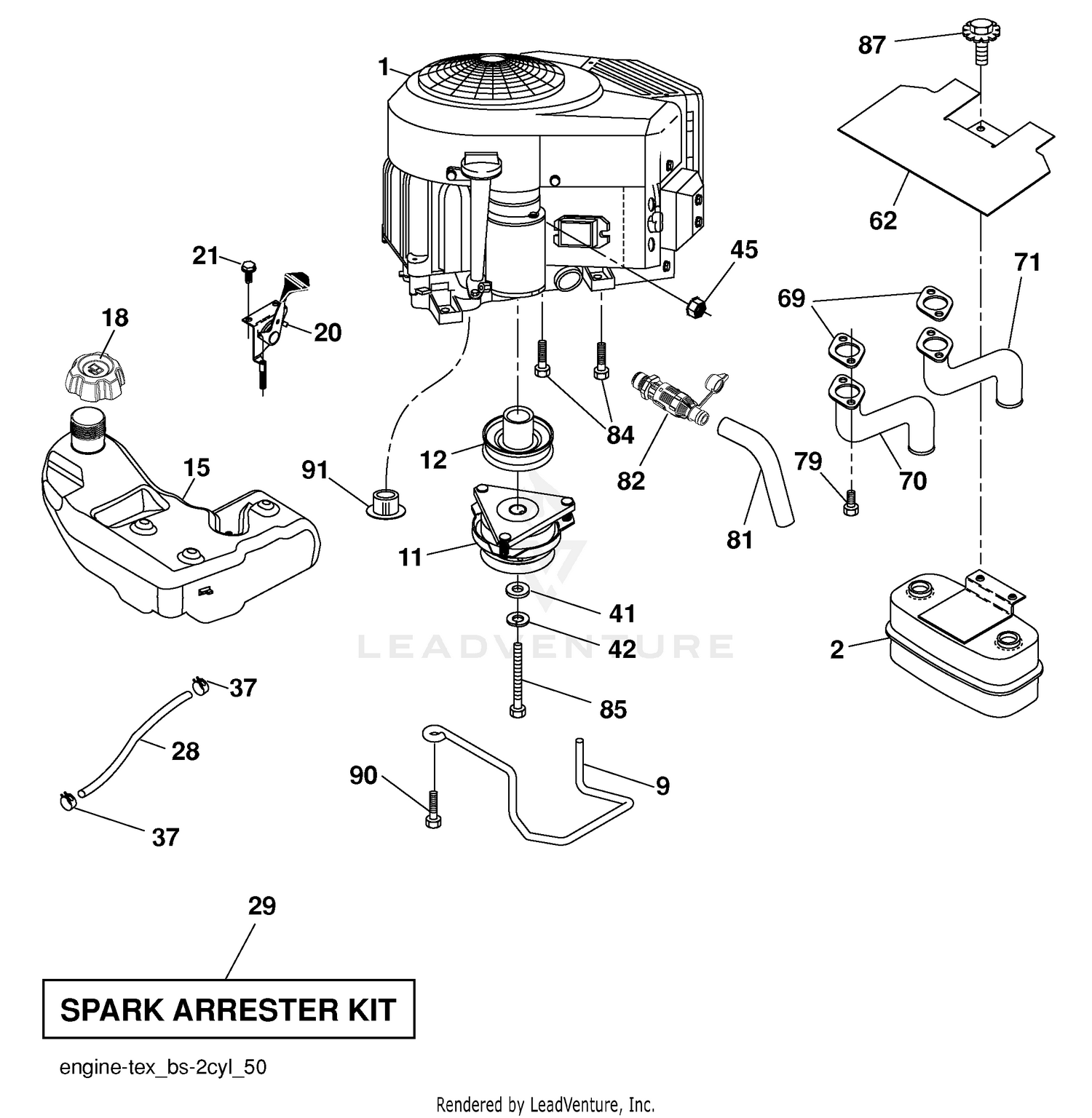

| Ref | Part Number | Description |
|---|
| 2 |
353-481 |
LIFT CHECK ASM Price: $338.44 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
237-54 |
O-RING Price: $1.97 |
| 4 |
353-306 |
WASHER-BACKUP Price: $9.12 |
| 5 |
353-305 |
O-RING Price: $10.91 |
| 7 |
353-302 |
O-RING Price: $10.13 |
| 8 |
353-303 |
WASHER-BACKUP Price: $9.06 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
353-853 |
BOLT Price: $39.87 |
| 11 |
353-668 |
PLATE-COVER Price: $508.66 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
353-550 |
PLUG-HYD, HH Price: $10.71 |
| 14 |
353-848 |
O-RING Price: $0.89 |
| 15 |
353-957 |
CUP-SEAL Price: $16.26 |
| 15 |
532400021 |
TANK.FUEL.SIDE-FILL.3.NON-EPA Price: $99.99 |
| 16 |
353-958 |
WASHER Price: $13.57 |
| 18 |
353-959 |
PLATE-RETAINER, SEAL Price: $7.40 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532430217. Price: $14.99 |
| 19 |
353-733 |
SPACER-BONNET Price: $41.01 |
| 20 |
353-417 |
COLLAR-STOP Price: $10.31 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 21 |
353-831 |
SPRING Price: $13.22 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
353-529 |
PLATE-RETAINER, SEAL Price: $15.07 |
| 23 |
353-530 |
DISCONTINUED Price: Call Us |
| 24 |
353-808 |
COLLAR-SPRING Price: $27.44 |
| 25 |
353-830 |
O-RING Price: $1.41 |
| 26 |
94-4248 |
COLLAR-SPOOL This part replaces 353-829. Price: $58.22 |
| 27 |
68-4240 |
BONNET ASSEMBLY This part replaces 354-26. Price: $42.76 |
| 28 |
354-28 |
SCREW-HS Price: $8.35 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
353-851 |
BODY-RELIEF Price: $180.95 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
353-392 |
RING-PISTON Price: $13.94 |
| 31 |
353-531 |
POPPET AND RING ASM Price: $229.51 |
| 32 |
353-328 |
SHIM (.040) Price: $3.53 |
| 33 |
353-329 |
SHIM (.020) Price: $2.10 |
| 34 |
353-330 |
SHIM (.010) Price: $3.60 |
| 35 |
353-398 |
SPRING Price: $30.09 |
| 36 |
353-334 |
CAP-RELIEF Price: $55.48 |
| 37 |
52-5900 |
SCREW Price: $26.40 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
353-847 |
BONNET Price: $129.59 |
| 39 |
353-849 |
SLEEVE Price: $46.19 |
| 40 |
353-846 |
SPUD Price: $118.09 |
| 41 |
353-845 |
SLEEVE-DETENT Price: $79.50 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
353-730 |
SPRING Price: $18.22 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
353-731 |
BALL Price: $12.95 |
| 44 |
353-398 |
SPRING This part replaces 353-855. Price: $30.09 |
| 45 |
3274-52 |
SCREW-HSH Price: $3.19 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 46 |
353-575 |
BOOT Price: $58.68 |
| 47 |
93-3651 |
RETAINER-BOOT This part replaces 353-559. Price: $31.38 |
| 48 |
93-3651 |
RETAINER-BOOT This part replaces 353-560. Price: $31.38 |
| 51 |
52-5860 |
COLLAR-SPOOL Price: $13.37 |
| 52 |
353-765 |
DISCONTINUED Price: Call Us |
| 54 |
353-953 |
PLUG ASM Price: $182.79 |
| 55 |
353-844 |
PLUG Price: $75.53 |
| 56 |
353-850 |
O-RING Price: $1.17 |
| 57 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 58 |
3274-84 |
SCREW-HSH Price: $2.51 |
| 62 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
