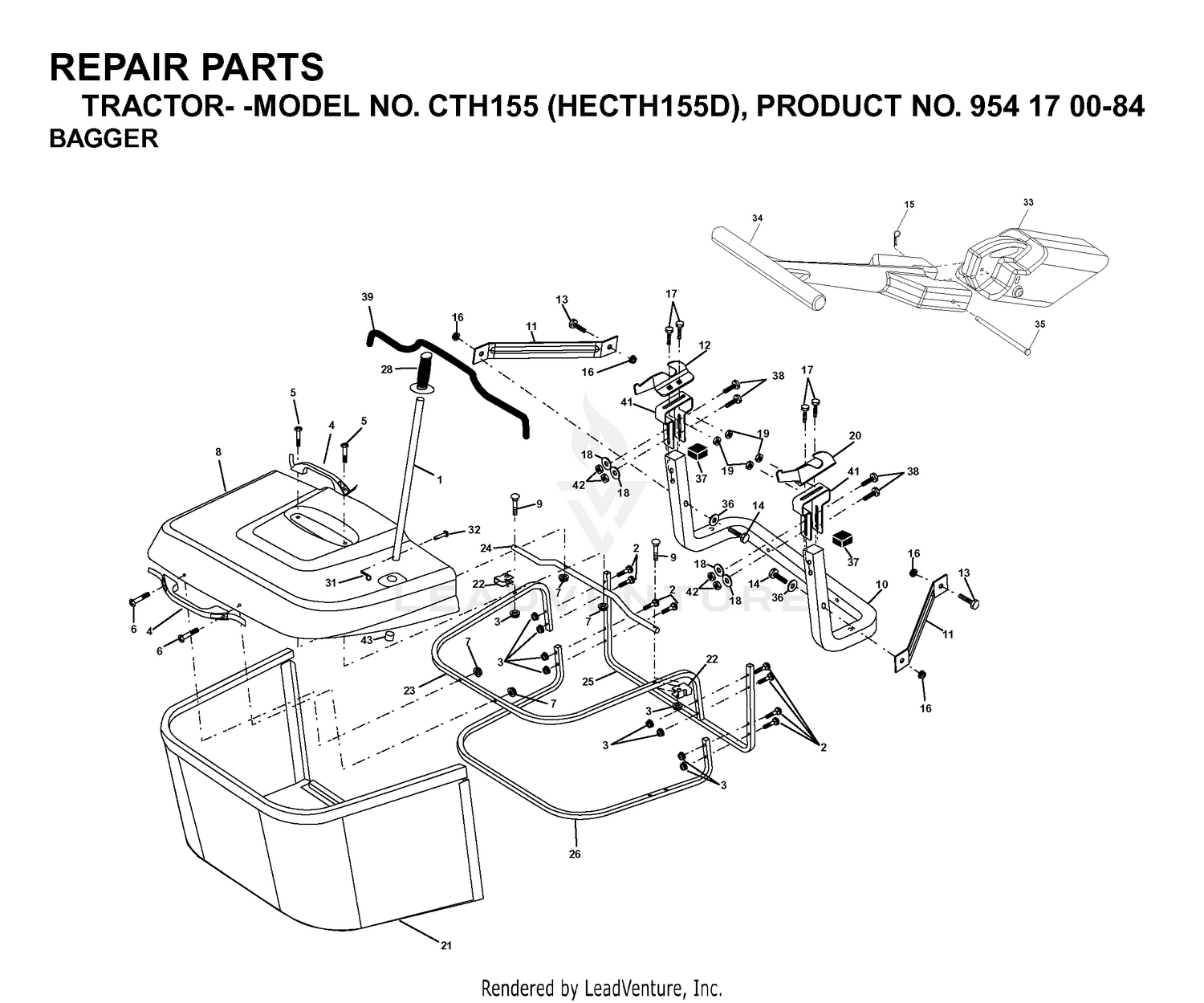

| Ref | Part Number | Description |
|---|
| 1 |
532170690 |
TUBE HANDLE BAGGER This part replaces 532165249. Price: $7.14 |
| 2 |
872140416 |
Bolt Carriage 1/4-20 x 2.0 Gr.5 Price: $4.99 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
532441543 |
COVER.PNT.BGR.CRD.WSLOTS.MS668 This part replaces 532181095. Price: $199.99 |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 10 |
98-9620 |
OVERFLOW PIPE ASM Price: $44.29 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 12 |
532169685 |
BRACKET Price: $32.99 |
| 13 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 14 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 18 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD This part replaces 532169684. Price: $7.99 |
| 20 |
98-9431 |
SCREW-BLEEDER, AIR Price: $15.04 |
| 21 |
532180880 |
GRASS BAG Price: $130.99 |
| 22 |
532165781 |
BRKT.SIDE.BAG.CRD Price: $2.99 |
| 23 |
532165782 |
TUBE.UPPER.BAG.CRD Price: $279.99 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
532180124 |
NEEDS DESCRIPTION Price: Call Us |
| 26 |
532165785 |
TUBE.LOWER.BAG.CRD Price: $32.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 30 |
98-7654 |
GASKET Price: $8.84 |
| 31 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
583448501 |
MULCHING.PLUG.92.CRD.NON-TEX This part replaces 532165571. Price: $19.99 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 35 |
532165572 |
PIN Price: $12.99 |
| 36 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD This part replaces 532180985. Price: $29.99 |
| 40 |
98-9420 |
OVERFLOW PIPE ASM Price: $3.91 |
| 42 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 45 |
112-0182 |
PIPE-OVERFLOW Price: $3.78 |
| 50 |
98-7671 |
CLIP-PIPE Price: $2.39 |
| 60 |
115-3018 |
NOZZLE HOLDER KIT Price: $440.14 |
| 65 |
121-2411 |
NUT Price: $6.48 |
| 70 |
98-7676 |
GASKET Price: $2.73 |
| 75 |
98-7677 |
SEAL-HEAT Price: $10.17 |
| 80 |
98-9622 |
PIPE-INJECTION Price: $74.03 |
| 90 |
98-9654 |
PIPE-INJECTION Price: $76.86 |
| 100 |
98-9655 |
PIPE-INJECTION Price: $82.26 |
| 110 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 120 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 130 |
98-7684 |
SCREW (W/WASHER) Price: $0.44 |
| 140 |
130-1411 |
PLUG-GLOW Price: $66.46 |
| 150 |
98-9631 |
CORD-PLUG, GLOW Price: $12.41 |
