Home / OPE / Riders / SFZ-48H-24SR Freedom Z (S/N X2600001 to X2699999) Part No. 06405 / SFZ ROLL-OVER PROTECTION STRUCTURE

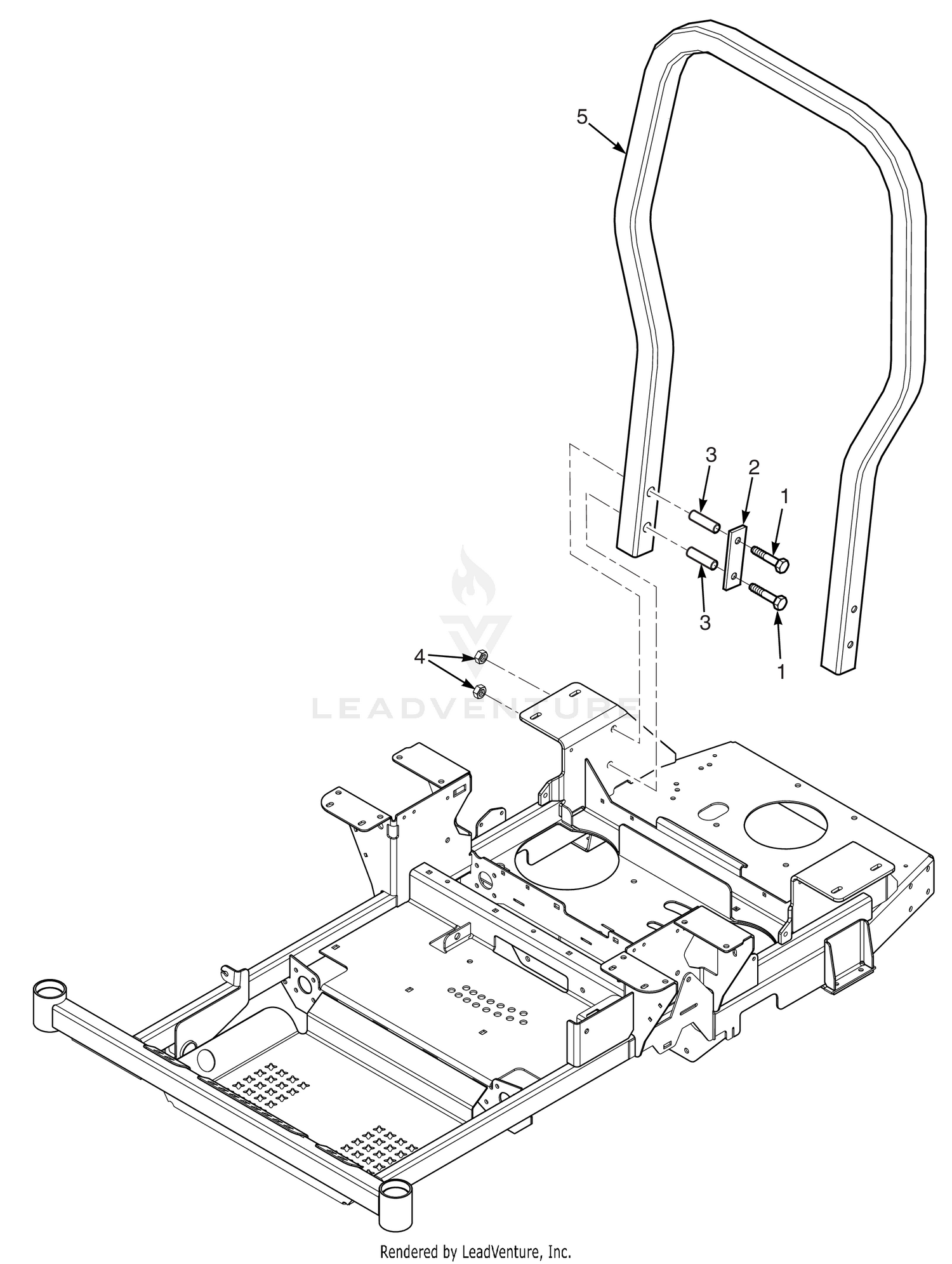

SFZ ROLL-OVER PROTECTION STRUCTURE

SFZ ROLL-OVER PROTECTION STRUCTURE

Parts (4)

RefPart NumberDescription
1 04001-184 Bolt, Hex Head 1/2-13 x 3-1/4" Gr. 8 Price: Call Us
2 428961 ROPS Mounting Plate Price: Call Us
3 43743 Bushing, SFZ ROPS Price: Call Us
4 04117-04 Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52) Price: Call Us
