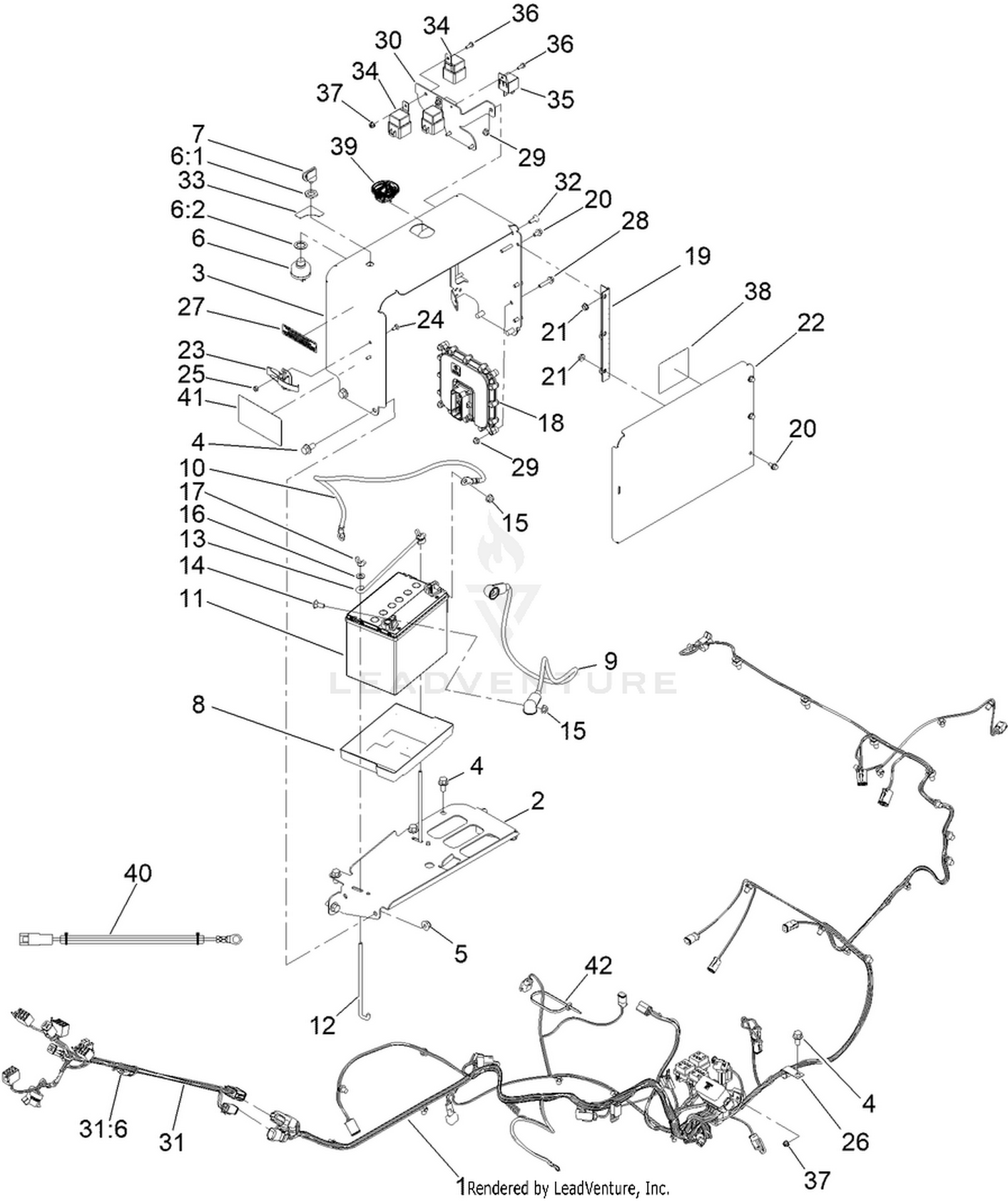

| Ref | Part Number | Description |
|---|
| 1 |
122-1868 |
HARNESS-WIRE, PC648 WHM Price: $1,230.71 |
| 2 |
140-8845-01 |
BASE-BATTERY Price: $96.33 |
| 3 |
140-8621-01 |
CONSOLE Price: $170.49 |
| 4 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 5 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 6 |
83-0020 |
SWITCH-IGNITION Price: $56.91 |
| 7 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 8 |
106948 |
TRAY-BATTERY Price: $10.99 |
| 9 |
106-8945 |
CABLE-BATTERY, POSITIVE Price: $31.39 |
| 10 |
106-8946 |
CABLE-BATTERY, NEGATIVE Price: $19.25 |
| 11 |
104-8162 |
BATTERY-DRY This part replaces 99-7421. Price: $114.99 |
| 12 |
100-6435 |
POST-BATTERY Price: $15.91 |
| 13 |
100-6434 |
ROD-HOLD DOWN, BATTERY Price: $10.10 |
| 14 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 15 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 16 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 17 |
1-543792 |
WINGNUT Price: $5.69 |
| 18 |
127-2770 |
CONTROLLER Price: $1,526.76 |
| 19 |
106-8908 |
HINGE-CONSOLE Price: $43.11 |
| 20 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 21 |
32128-33 |
NUT-HF Price: $0.25 |
| 22 |
140-8701-01 |
COVER-CONSOLE Price: $61.53 |
| 23 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 24 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 25 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 26 |
2412-150 |
CLIP-J Price: $1.63 |
| 27 |
133-8062 |
DECAL-ARRESTOR, SPARK Price: $2.39 |
| 28 |
127-8639 |
SCREW-HHF Price: $0.49 |
| 29 |
104-7201 |
NUT-HF Price: $0.69 |
| 30 |
140-8754 |
BRKT-CONTROLS Price: $10.44 |
| 31 |
122-2170 |
HARNESS-WIRE, PC648, CONSOLE Price: $419.63 |
| 32 |
1-807512 |
BOLT-CARR Price: $1.29 |
| 33 |
130-7360 |
DECAL-IGNITION Price: $20.63 |
| 34 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 35 |
99-7435 |
RELAY Price: $32.43 |
| 36 |
32105-23 |
SCREW Price: $0.88 |
| 37 |
120-4578 |
NUT-HF Price: $0.41 |
| 38 |
139-8740 |
DECAL-FUSE Price: $4.69 |
| 39 |
161-6970 |
TACHOMETER-INDUCTIVE ROUND Price: $217.98 |
| 40 |
108-9455 |
HARNESS-WIRE, FUSIBLE LINK Price: $13.09 |
| 41 |
139-8653 |
DECAL -SERVICE INSTRUCTIONS Price: $20.87 |
