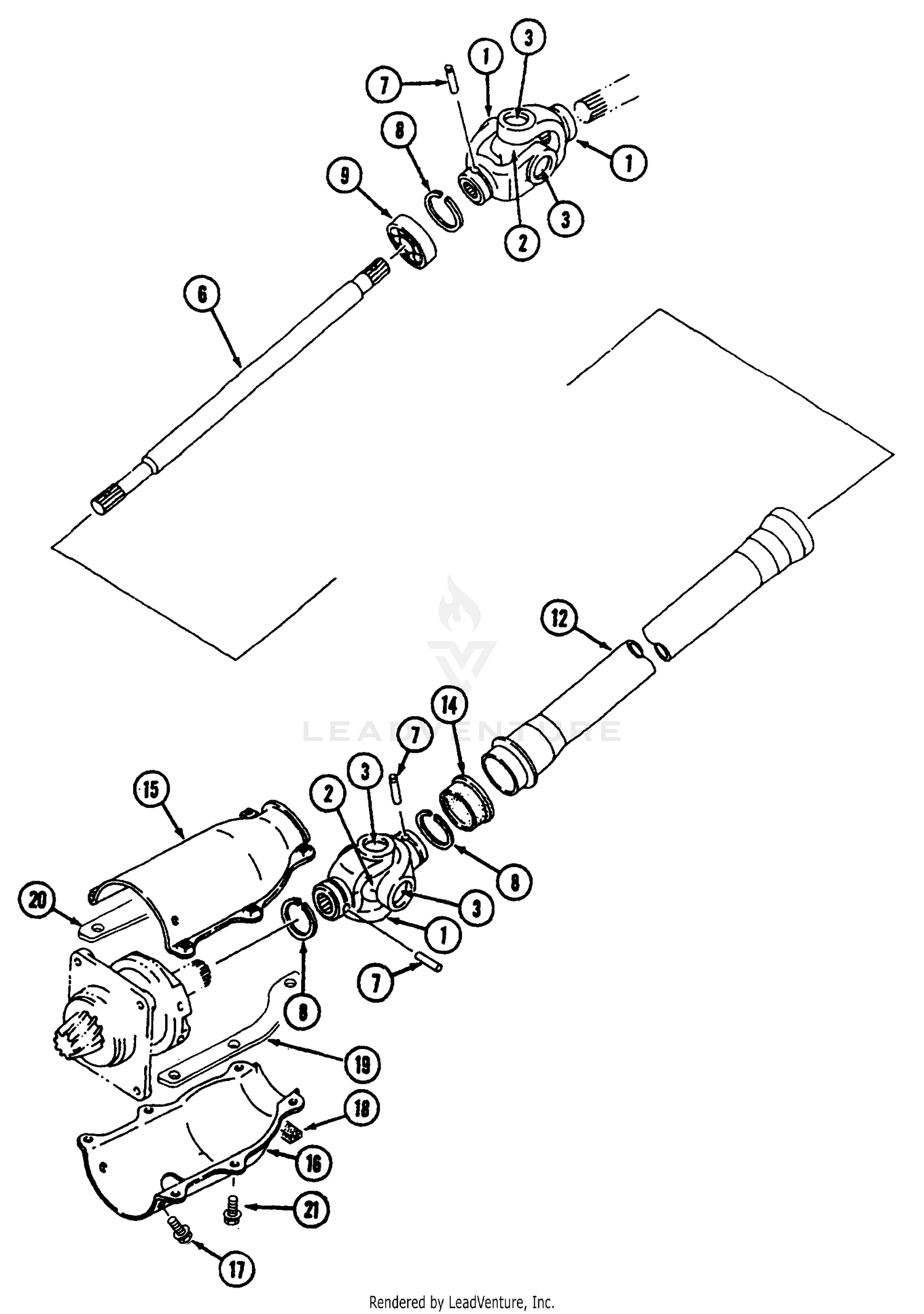

MFD PTO
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 98-7612 | FILTER-FUEL Price: $10.48 |
| 1 | MA-10070552100 | SPLINE, YOKE Not Available Price: |
| 2 | 532132673 | PIN RETAINING SCREW Price: $3.99 |
| 2 | MA-10070552200 | Journal Kit Not Available Price: |
| 3 | 3290-379 | TIE-CABLE Price: $0.31 |
| 3 | MA-07410002000 | SNAP RING Not Available This part replaces MA-07410102000. Price: |
| 4 | 532003146 | SPRING RETAINER Price: $2.99 |
| 5 | 110-4100 | HOSE-FUEL This part replaces 23-2140. Price: $28.86 |
| 5 | 532188845 | HUB.ASM.DRT17.2004 (CMPL KIT) Price: $99.99 |
| 6 | 62-7650 | GASKET Price: $4.28 |
| 6 | 873610600 | NUT Price: $2.99 |
| 6 | MA-19671912AG0 | SHAFT Not Available Price: |
| 7 | 596238701 | Washers This part replaces 810040600. Price: $3.99 |
| 7 | 63-7640 | SENDER-FUEL Price: $94.22 |
| 7 | MA-05401006028 | PIN Not Available Price: |
| 8 | 3253-15 | WASHER-LOCK Price: $1.49 |
| 8 | 874610616 | BOLT.HEX.001X20.37-24X1.ZINC Price: $4.99 |
| 8 | MA-10070553001 | RING, SNAP Not Available Price: |
| 9 | 32122-24 | SCREW-PTH Price: $0.27 |
| 9 | MA-07500560044 | Bearing Not Available Price: |
| 10 | 110-4104 | HOSE-FUEL This part replaces 93-2042. Price: $8.95 |
| 11 | 2412-108 | CLAMP-WORM Price: $1.29 |
| 12 | 110-4102 | HOSE-FUEL This part replaces 75-4700. Price: $39.17 |
| 12 | MA-19631914AG0 | COVER-MFD SHAFT Not Available Price: |
| 13 | 354-22 | FITTING-BARBED Price: $4.64 |
| 14 | 354-21 | FITTING-BARBED Price: $6.88 |
| 14 | MA-19061916000 | CUSHION Not Available Price: |
| 15 | 354-20 | FITTING-TEE Price: $12.61 |
| 15 | MA-19671913AG0 | UPPER COVER Not Available Price: |
| 16 | 110-4103 | HOSE-FUEL This part replaces 98-9338. Price: $18.01 |
| 16 | 532163499 | TINE.SPADE Price: $11.99 |
| 16 | MA-19671916AG0 | LOWER COVER Not Available Price: |
| 17 | 109-0274 | HOSE-FUEL This part replaces 63-9640. Price: $12.99 |
| 17 | MA-H1440106012 | BOLT,W/WASHER Not Available Price: |
| 18 | 66-8121 | STANDPIPE Price: $23.18 |
| 18 | MA-19671917000 | CUSHION Not Available Price: |
| 19 | 46-6550 | FITTING-ELBOW, 90 DEG Price: $37.39 |
| 19 | MA-19671918AG0 | PLATE (LH) Not Available Price: |
| 20 | 46-6560 | BUSHING Price: $2.94 |
| 20 | MA-19671919AG0 | PLATE (RH) Not Available Price: |
| 21 | 93-3102 | CAP-FUEL Price: $24.02 |
| 22 | 105-7933 | TANK-FUEL This part replaces 94-3510. Price: $275.80 |
| 23 | 240-11 | BUSHING-FLANGE Price: $5.32 |
| 24 | 63-8410 | WASHER Price: $1.76 |
| 25 | 33103-025 | SCREW-HHF Price: $0.54 |
| 26 | 2412-36 | CLAMP-HOSE Price: $1.28 |
| 27 | 304-46 | DRAINCOCK Price: $7.55 |
| 28 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 29 | 3258-166 | SCREW-PRH Price: $0.28 |
| 30 | 3290-509 | TIE-MOUNT Price: $4.42 |
| 31 | 2412-98 | CLAMP-HOSE Price: $1.39 |
| 32 | 304-73 | FITTING-STRAIGHT Price: $12.59 |
| 33 | 92-2379 | CLAMP-HOSE Price: $0.34 |
