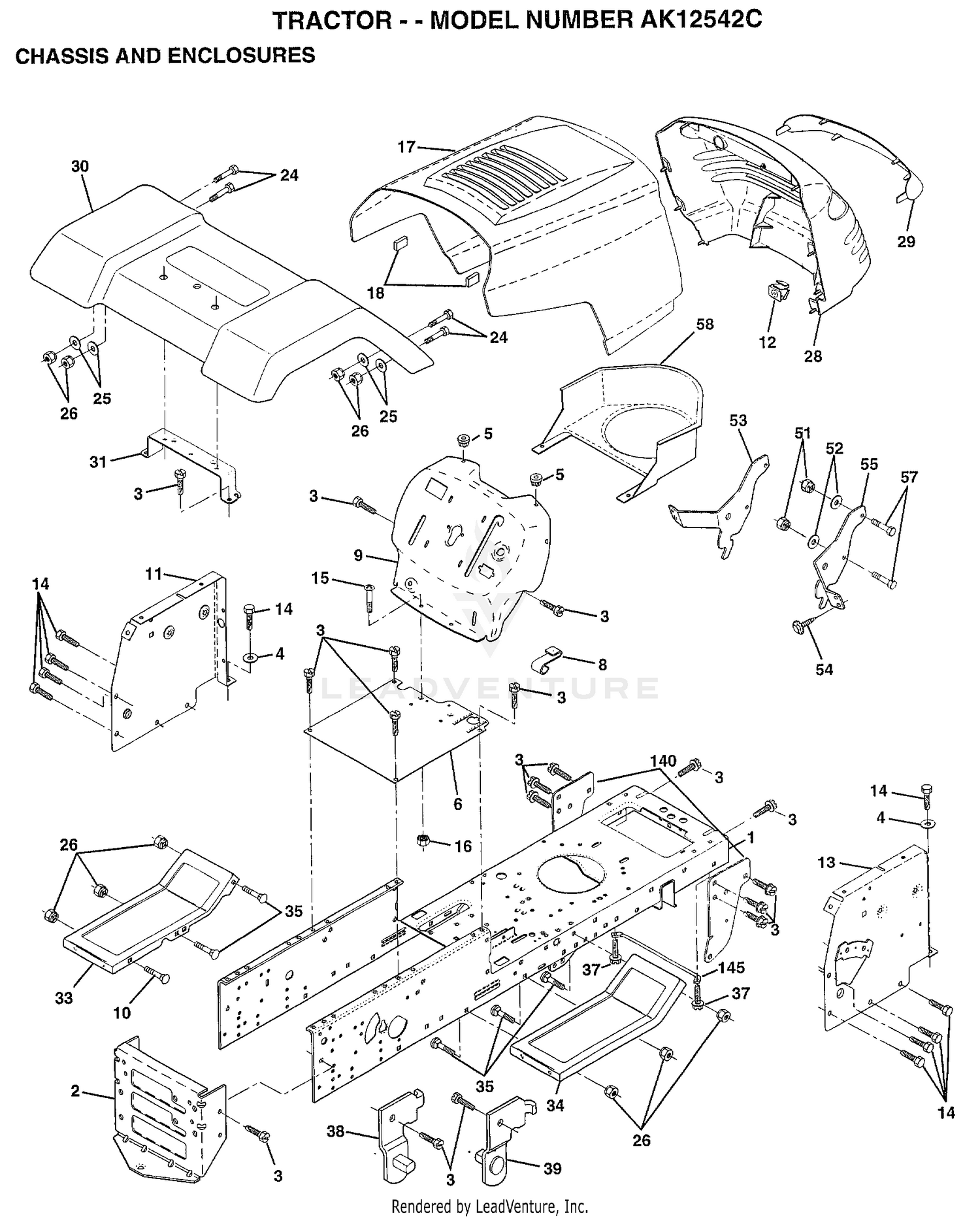

| Ref | Part Number | Description |
|---|
| 1 |
165480 |
CHASSIS.STAMPING Price: Call Us |
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 4 |
19131216 |
WASHER Price: Call Us |
| 4 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 5 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 6 |
155923 |
SADDLE Price: Call Us |
| 6 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 7 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 8 |
155138 |
CLIP.RETAINER Price: Call Us |
| 8 |
75-6490 |
LEVER ASM Price: $78.45 |
| 9 |
161937X011 |
DASH SILKSCREEN Price: Call Us |
| 9 |
233-42 |
KNOB Price: $12.88 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 11 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 12 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 13 |
155934X010 |
SUB= 169117X010 Price: Call Us |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 14 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 15 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
159639X505 |
HOOD.STEEL.ASSY Price: Call Us |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 20 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 23 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 25 |
63-7732 |
RH BRAKE CABLE ASM Price: $210.39 |
| 26 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 26 |
73800600 |
NUT Price: Call Us |
| 27 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 28 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 29 |
140273X599 |
LENS.GRILLE.PRIVATE LABEL Price: Call Us |
| 29 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 30 |
166886X505 |
FENDER Price: Call Us |
| 30 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 31 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 32 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 33 |
105476X505 |
FOOTREST LH Price: Call Us |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 34 |
105475X505 |
FOOTREST RH Price: Call Us |
| 34 |
75-3270-03 |
HUB-PIVOT, TRACTION Price: $144.73 |
| 35 |
72110606 |
BOLT Price: Call Us |
| 35 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 36 |
75-2170-03 |
TUBE-CONTROL, PUMP Price: $103.73 |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 37 |
3220-3 |
NUT-HJ Price: $0.28 |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 38 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 40 |
323-9 |
SCREW-HH Price: $1.29 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
161464 |
SCREW.HEX.WS.HD Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
