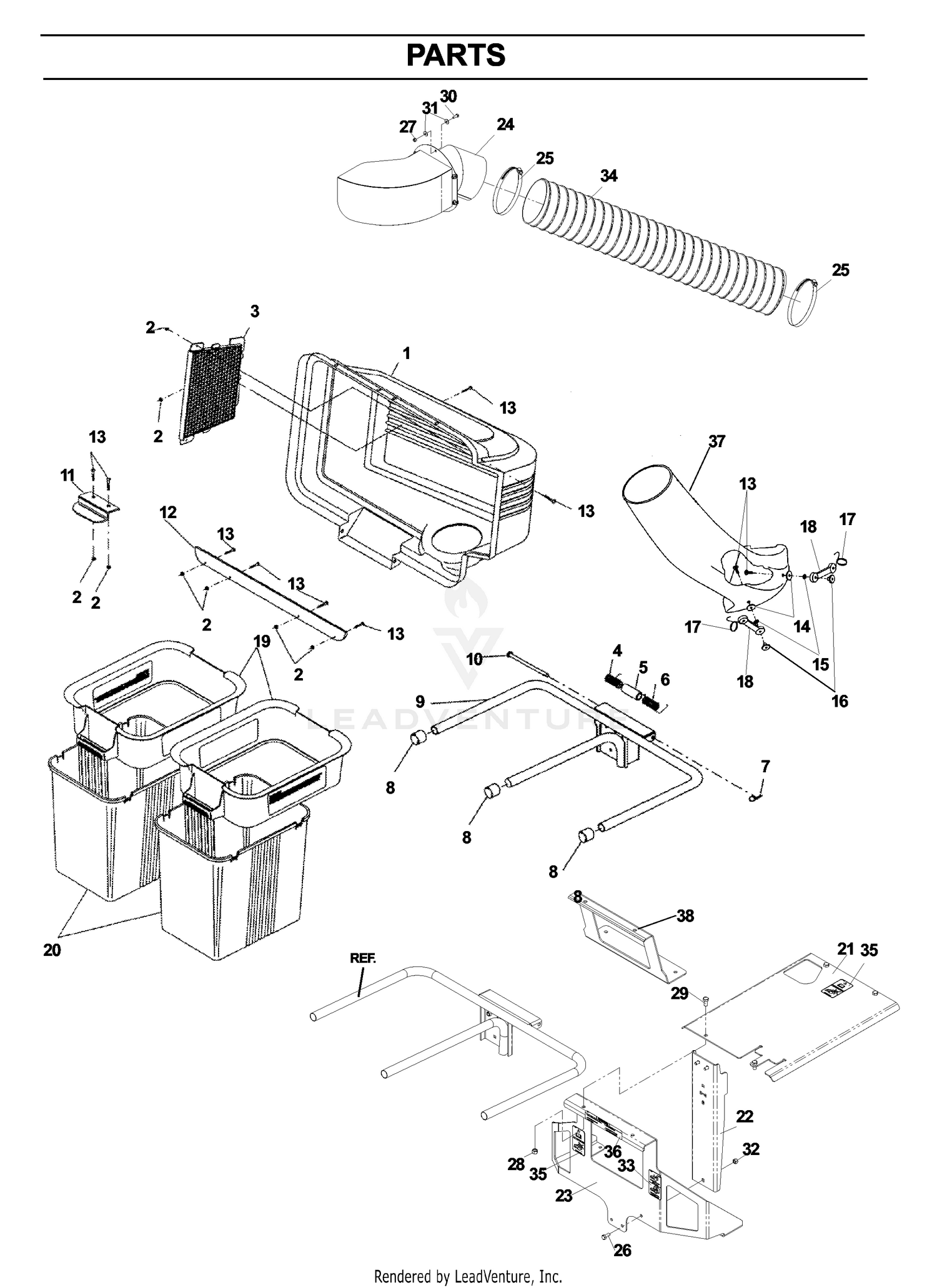

| Ref | Part Number | Description |
|---|
| 1 |
539111139 |
HOOD ASM Price: $379.99 |
| 2 |
532063180 |
NUT, 3/10-24, CROWNLOCK Price: Call Us |
| 3 |
532127533 |
COVER SCREEN Price: $14.99 |
| 4 |
532132796 |
SPRING COVER LH Price: $5.99 |
| 5 |
532133235 |
SPACER.COVER.BAGGER Price: $5.99 |
| 6 |
532132983 |
SPRING COVER RH Price: $5.99 |
| 7 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 8 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 10 |
532192786 |
BAGGER.HINGE.PIN This part replaces 532128600. Price: $14.99 |
| 11 |
532130895 |
LATCH CER38 Price: $5.99 |
| 12 |
532155042 |
STRIP.REINFORCE.BAGGER.2BIN.BL Price: $11.99 |
| 13 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 14 |
819061216 |
WASHER Price: $3.99 |
| 15 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 16 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 17 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130760. Price: $5.99 |
| 18 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130759. Price: $5.99 |
| 19 |
532183286 |
CONTAINER TOP This part replaces 532129585. Price: $29.99 |
| 20 |
532129586 |
CONTAINER BOTTOM Price: $59.99 |
| 21 |
539111003 |
PLATE, W/DECAL Price: $109.99 |
| 22 |
539110997 |
HANGER Price: $32.99 |
| 23 |
539109930 |
REAR BRACKET W/ DECALS Price: $219.99 |
| 24 |
539110992 |
INLET Price: $227.99 |
| 25 |
539097076 |
HOSE CLAMP 4-1/8 TO 7" Price: $6.99 |
| 26 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 27 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 28 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 29 |
539990134 |
SCREW 3/8C X 3/4 HEX CAP Price: $3.99 |
| 30 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 31 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 32 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 33 |
539109929 |
DECAL, PAYLOAD/GASOLINE Price: $3.99 |
| 34 |
539110994 |
HOSE Price: $299.99 |
| 35 |
539109927 |
DECAL, UTILITY BOX WARNING Price: $3.99 |
| 36 |
539109928 |
DECAL, UTILITY BOX PAYLOAD Price: $2.99 |
| 37 |
539111007 |
LOWER BOOT 42 Price: $129.99 |
| 38 |
539112139 |
BRACKET, FRT SUPPORT, BLACK This part replaces 539110052. Price: $44.99 |
| 539976988 |
596580601 |
Pins This part replaces 539976988. Price: $3.99 |
| 539977703 |
539977703 |
CLEVIS PIN 3/8 X 1 1/8 Price: $4.99 |
