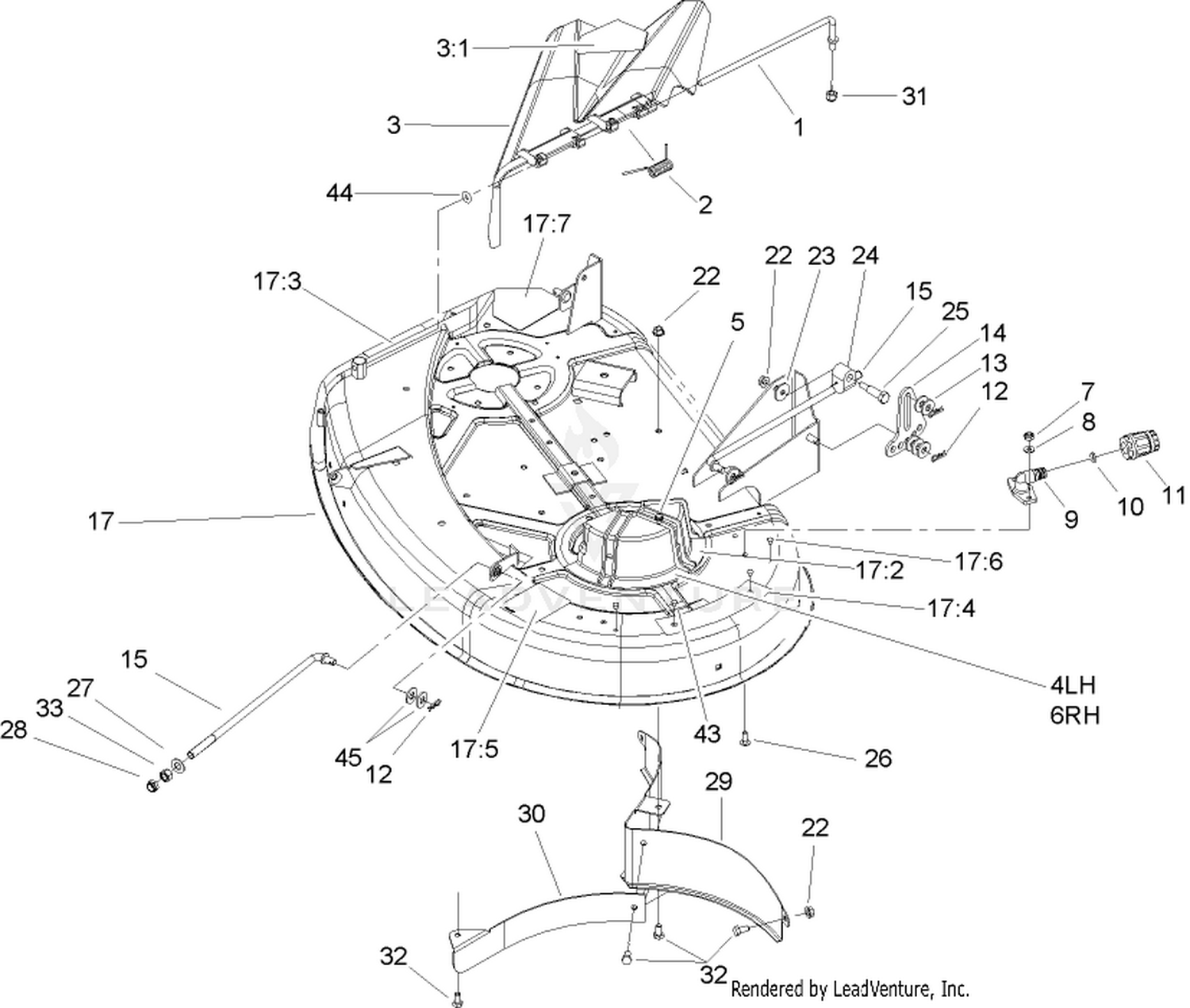

| Ref | Part Number | Description |
|---|
| 1 |
95-1661 |
ROD-PIVOT Price: $13.31 |
| 2 |
57-6950 |
SPRING Price: $16.98 |
| 3 |
93-0317 |
DEFLECTOR ASM Price: $47.57 |
| 4 |
88-4030 |
GUIDE-BELT, LH Price: $23.62 |
| 5 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 6 |
88-4020 |
GUIDE-BELT, RH Price: $23.62 |
| 7 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 8 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 9 |
133-9289 |
FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 10 |
46-6290 |
O-RING Price: $2.59 |
| 11 |
95-3270 |
CONNECTOR-HOSE Price: $22.99 |
| 12 |
9335054 |
PIN-HAIR Price: $1.49 |
| 13 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 14 |
88-5570-03 |
LINK-ADJUSTING, HOC Price: $8.71 |
| 15 |
105-3437 |
ROD-HANGER Price: $18.44 |
| 22 |
32128-25 |
NUT-HF Price: $3.19 |
| 23 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 24 |
88-4230 |
TRUNNION-HOC Price: $9.21 |
| 25 |
7-0030 |
SCREW-SHOULDER, HH Price: $7.99 |
| 26 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 27 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 28 |
3296-38 |
NUT-LOCK, NI Price: $1.89 |
| 29 |
106-7030-03 |
BAFFLE-REAR Price: $72.58 |
| 30 |
106-7032-03 |
EXTENSION-BAFFLE Price: $63.58 |
| 31 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 32 |
322-2 |
SCREW-HH Price: $0.69 |
| 33 |
3219-4 |
NUT-HEX Price: $2.65 |
| 43 |
3290-282 |
RIVET-BLIND Price: $0.28 |
| 44 |
106-8745 |
O-RING Price: $1.00 |
