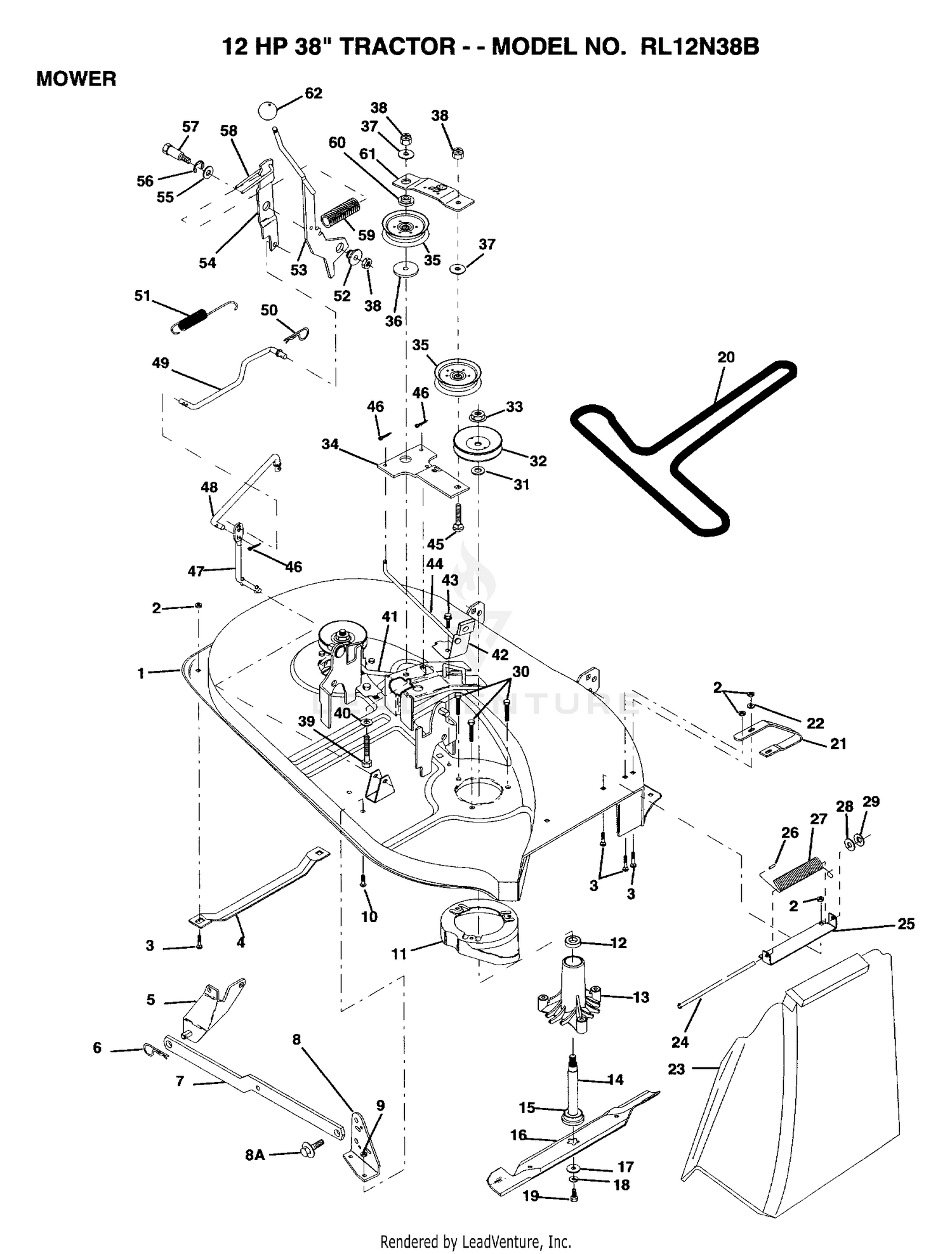

| Ref | Part Number | Description |
|---|
| 1 |
138026 |
SUB= 145775 Price: Call Us |
| 1 |
33114-016 |
SCREW-HH Price: $0.27 |
| 2 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 2 |
73680500 |
SUB= 73690500 Price: Call Us |
| 3 |
53-6070 |
LEVER-BRAKE Price: $361.17 |
| 3 |
72140506 |
BOLT Price: Call Us |
| 4 |
59-7240 |
CONTROL-THROTTLE Price: $74.01 |
| 4 |
7631J |
RUNNER-LH M Price: Call Us |
| 5 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 5 |
3217-5 |
NUT-HEX Price: $0.25 |
| 6 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 6 |
4939M |
SUB= 85902 Price: Call Us |
| 7 |
130832 |
SUB= 130833 Price: Call Us |
| 7 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 8 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 8 |
25-8640 |
SCREW-HH Price: $1.09 |
| 8A |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 9 |
73800500 |
NUT Price: Call Us |
| 9 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 10 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 10 |
72140506 |
BOLT Price: Call Us |
| 11 |
136929 |
SUB= 140329 Price: Call Us |
| 11 |
86-6090 |
HYD OIL FILTER ASM Price: $584.05 |
| 12 |
110485X |
BEARING Price: Call Us |
| 12 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 13 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 13 |
92-9222 |
CABLE-HANDBRAKE Price: $220.53 |
| 14 |
137645 |
SUB= 137646 Price: Call Us |
| 15 |
129895 |
BEARING.BALL Price: Call Us |
| 15 |
233-25 |
KNOB-CONTROL Price: $4.48 |
| 16 |
3217-6 |
NUT-HEX Price: $1.19 |
| 17 |
129962 |
WASHER BLADE Price: Call Us |
| 17 |
58-2170-03 |
BAR-LINKAGE, BRAKE Price: $151.21 |
| 18 |
10030600 |
SUB= 10040600 Price: Call Us |
| 18 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 19 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 19 |
850857 |
BLADE BOLT Price: Call Us |
| 20 |
131290 |
BELT-V.88.12.MW Price: Call Us |
| 21 |
128772 |
RUNNER RH Price: Call Us |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 22 |
19111216 |
WASHER M Price: Call Us |
| 22 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 23 |
106736X |
DEFLECTOR-SHLD T Price: Call Us |
| 23 |
60-2140 |
SPRING Price: $26.64 |
| 24 |
106735X |
ROD-HINGE T Price: Call Us |
| 24 |
92-9225 |
YOKE Price: $73.83 |
| 25 |
137607 |
BRKT DEFLECTOR Price: Call Us |
| 25 |
3217-6 |
NUT-HEX Price: $1.19 |
| 26 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 26 |
340-80 |
FITTING-STR Price: $47.82 |
| 27 |
123713X |
SPRING TORSION Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 29 |
110452X |
NUT PUSH M Price: Call Us |
| 29 |
322-6 |
SCREW-HH Price: $0.45 |
| 30 |
107-1818 |
DECAL-PANEL, SIDE CONTROL This part replaces 93-9402. Price: $84.40 |
| 30 |
78158 |
SUB= 17580520 Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
129206 |
SUB= 153532 Price: Call Us |
| 32 |
84-6470-03 |
BRACKET-FILTER Price: $56.96 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
340-10 |
Adapter (Incl. Ref. #25 31) Price: $45.09 |
| 34 |
133840 |
IDLER ARM ASSY Price: Call Us |
| 34 |
48-7880 |
NUT-HEX Price: $0.25 |
| 35 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 35 |
43-5920 |
WASHER-LOCK, SPRING This part replaces 48-8000. Price: $0.25 |
| 36 |
122052X |
SPACER RETAINER Price: Call Us |
| 36 |
52-6430 |
WASHER Price: $0.25 |
| 37 |
19131612 |
WASHER GT Price: Call Us |
| 37 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 38 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 38 |
73680600 |
SUB= 73690600 Price: Call Us |
| 39 |
11-9030 |
SCREW-SHOULDER Price: $5.63 |
| 39 |
74600636 |
BOLT Price: Call Us |
| 40 |
19131612 |
WASHER GT Price: Call Us |
| 40 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 41 |
131289 |
BRAKE ROD LH Price: Call Us |
| 41 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 42 |
130840 |
BRAKE ASM Price: Call Us |
| 43 |
17490512 |
SCREW Price: Call Us |
| 43 |
323-5 |
SCREW-HH Price: $0.41 |
| 44 |
131288 |
BRAKE ROD RH Price: Call Us |
| 44 |
60-2370 |
GROMMET Price: $4.54 |
| 45 |
72110614 |
BOLT Price: Call Us |
| 45 |
98-1261 |
ROD-THROTTLE Price: $65.71 |
| 46 |
76020312 |
SUB= 3145 Price: Call Us |
| 46 |
98-3845 |
JOINT-BALL, ROD END Price: $23.11 |
| 47 |
133551 |
PIVOT ROD Price: Call Us |
| 47 |
32120-72 |
RING-SNAP This part replaces 936125. Price: $2.09 |
| 48 |
133504 |
CLUTCH ROD SECOND Price: Call Us |
| 48 |
67-9410 |
WASHER Price: $2.04 |
| 49 |
98-3846 |
WASHER-WAVE Price: $10.78 |
| 50 |
256-252 |
BEARING-FLANGE Price: $5.35 |
| 50 |
4497H |
RETAINER M Price: Call Us |
| 51 |
131870 |
RETURN SPRING Price: Call Us |
| 51 |
98-1257-03 |
LEVER-THROTTLE Price: $75.50 |
| 52 |
127498 |
BUSHING Price: Call Us |
| 52 |
98-1256-03 |
PLATE-THROTTLE Price: $107.95 |
| 53 |
133573 |
CLUTCH ARM PRI AS Price: Call Us |
| 53 |
3220-1 |
NUT-JAM Price: $0.99 |
| 54 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 54 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 55 |
121748X |
WASHER Price: Call Us |
| 55 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 56 |
12000029 |
RING Price: Call Us |
| 57 |
128903 |
SHOULDER BOLT Price: Call Us |
| 58 |
127845 |
SPRING KEEPER Price: Call Us |
| 59 |
128759 |
SUB= 918128759 Price: Call Us |
| 60 |
133502 |
RETAINER SPACER Price: Call Us |
| 61 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 62 |
7803J |
SUB= 106932X Price: Call Us |
