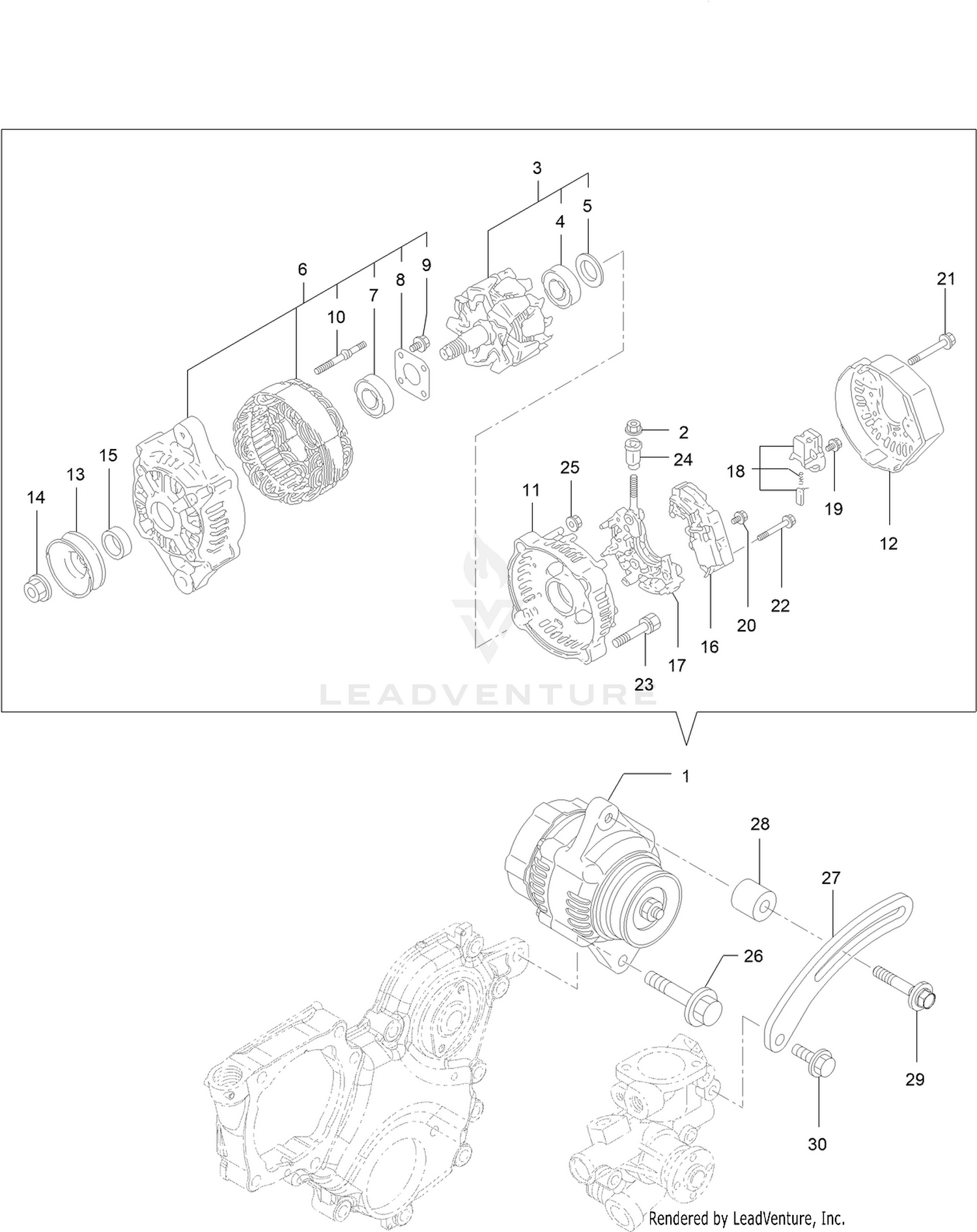

Generator Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-4016 | ALTERNATOR, 12V-55A Price: $626.17 |
| 2 | 144-0647 | NUT Price: Call Us |
| 3 | 127-3843 | ROTOR ASM Price: $368.15 |
| 4 | 127-2983 | BEARING-BALL Price: $23.48 |
| 5 | 127-2962 | COVER Price: Call Us |
| 6 | 135-4025 | FRAME ASM Price: $699.99 |
| 7 | 127-2958 | BEARING-BALL Price: $25.78 |
| 8 | 127-2959 | PLATE-RETAINER Price: Call Us |
| 9 | 127-2960 | SCREW Price: Call Us |
| 10 | 127-2961 | STUD Price: Call Us |
| 11 | 127-3845 | FRAME Price: Call Us |
| 12 | 134-4017 | COVER, END Price: Call Us |
| 13 | 127-2954 | PULLEY Price: $69.59 |
| 14 | 127-2955 | NUT Price: Call Us |
| 15 | 127-2957 | COLLAR Price: $16.32 |
| 16 | 145-7881 | REGULATOR ASSY Price: $604.79 |
| 17 | 127-3848 | HOLDER Price: $292.06 |
| 18 | 127-2993 | HOLDER Price: $95.21 |
| 19 | 127-2965 | SCREW Price: Call Us |
| 20 | 127-2966 | SCREW Price: Call Us |
| 21 | 127-2967 | BOLT Price: $9.43 |
| 22 | 127-2968 | SCREW Price: $4.72 |
| 23 | 127-2969 | BOLT Price: Call Us |
| 24 | 127-2970 | BUSHING-INSULATION Price: Call Us |
| 25 | 127-2971 | NUT Price: Call Us |
| 26 | 135-4277 | BOLT Price: $2.49 |
| 27 | 145-7852 | ADJUSTER, BELT Price: Call Us |
| 28 | 140-7166 | SPACER-ADJUSTER Price: $14.95 |
| 29 | 125-7134 | BOLT Price: $25.74 |
