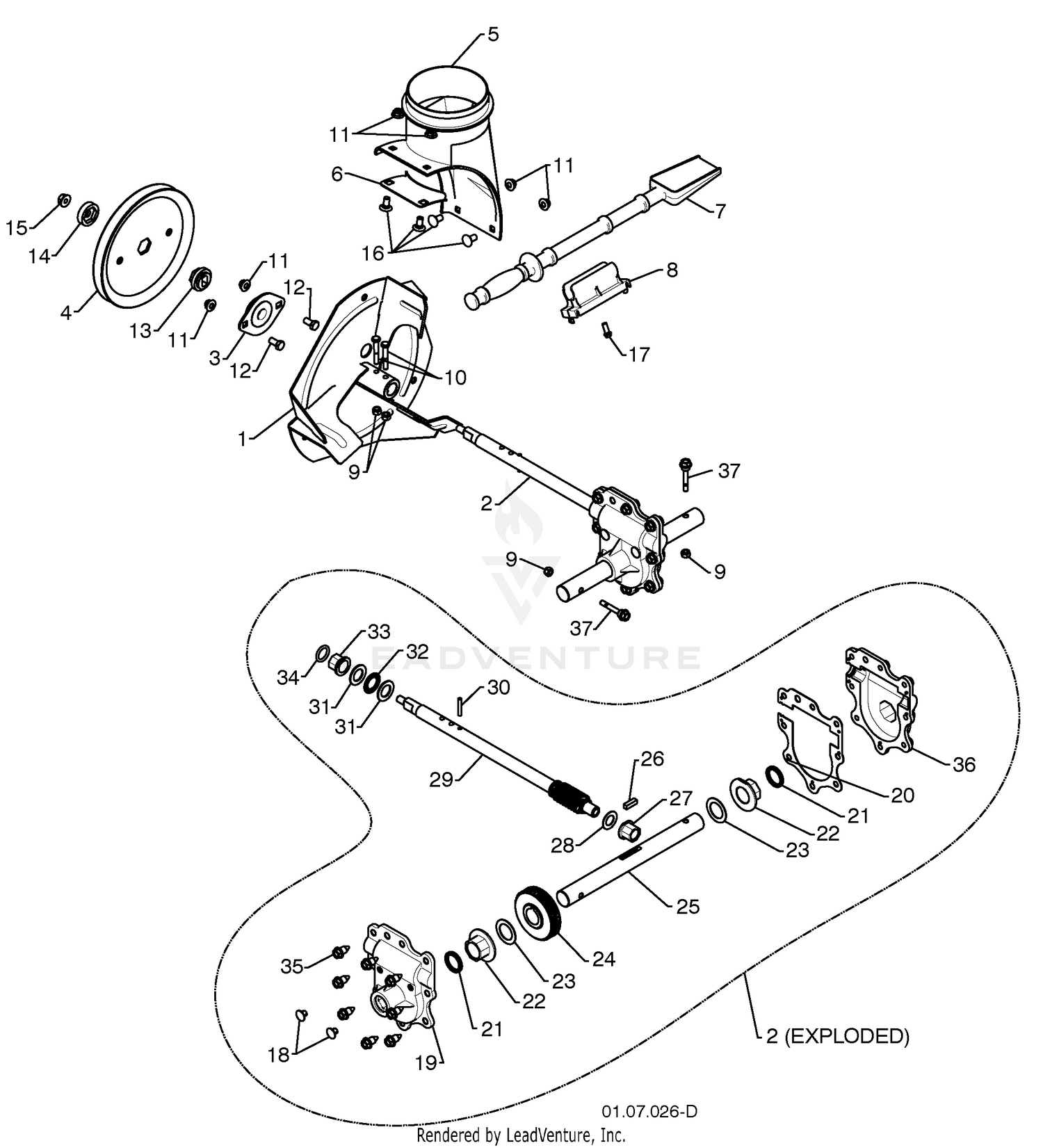

| Ref | Part Number | Description |
|---|
| 1 |
175321X431 |
IMPELLER Price: Call Us |
| 2 |
427148 |
GEARBOX ASSEMBLY Price: Call Us |
| 3 |
188909 |
BEARING Price: Call Us |
| 4 |
427146 |
IMPELLER PULLEY Price: Call Us |
| 5 |
175322 |
DISCHARGE BASE Price: Call Us |
| 6 |
178675X431 |
CORNER BRACKET Price: Call Us |
| 7 |
192199 |
CLEAN OUT TOOL Price: Call Us |
| 8 |
405400 |
TOOL CLIP Price: Call Us |
| 9 |
73800400 |
NUT 1/4-20 Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
74780426 |
SCREW 1/4-20 X .625 Price: Call Us |
| 11 |
427942 |
NUT 5/16-18 Price: Call Us |
| 12 |
163183 |
SCREW 5/16-18 X .625 Price: Call Us |
| 13 |
427145 |
IMPELLER HUB Price: Call Us |
| 14 |
427154 |
IMPELLER SLEEVE Price: Call Us |
| 15 |
73900600 |
NUT 3/8-16 Price: Call Us |
| 16 |
180355 |
CARRIAGE BOLT Price: Call Us |
| 17 |
194189 |
SCREW 13-16 X .625 Price: Call Us |
| 18 |
407760 |
PLUG Price: Call Us |
| 19 |
427302 |
GEARBOX COVER RH Price: Call Us |
| 20 |
112-7047 |
STAY-DYNAMO This part replaces 98-9573. Price: $14.95 |
| 20 |
427345 |
GASKET Price: Call Us |
| 21 |
407770 |
SEAL Price: Call Us |
| 22 |
407762 |
BEARING Price: Call Us |
| 23 |
174697 |
THRUST WASHER 1.00 Price: Call Us |
| 24 |
407763 |
WORM GEAR Price: Call Us |
| 25 |
407764 |
AUGER SHAFT Price: Call Us |
| 26 |
189282 |
SQUARE KEY Price: Call Us |
| 27 |
407758 |
BEARING Price: Call Us |
| 28 |
174683 |
THRUST WASHER Price: Call Us |
| 29 |
427147 |
IMPELLER SHAFT Price: Call Us |
| 30 |
108-7088 |
BOLT Price: $1.22 |
| 30 |
7836M |
ROLL PIN Price: Call Us |
| 31 |
174681 |
THRUST WASHER Price: Call Us |
| 32 |
174684 |
THRUST BEARING Price: Call Us |
| 33 |
407769 |
BEARING Price: Call Us |
| 34 |
407768 |
O-RING Price: Call Us |
| 35 |
407767 |
SCREW 5/16-18 X .750 Price: Call Us |
| 36 |
427317 |
GEARBOX COVER LH Price: Call Us |
| 40 |
98-9360 |
BOLT Price: $2.35 |
| 50 |
99-7526 |
NUT This part replaces 98-7737. Price: $1.29 |
| 60 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 70 |
98-7738 |
WASHER-SPRING Price: $0.24 |
| 80 |
100-9233 |
WASHER-PLAIN Price: $0.48 |
| 90 |
98-7692 |
BOLT Price: $0.92 |
| 100 |
98-9473 |
PULLEY-DRIVE, FAN Price: $319.19 |
