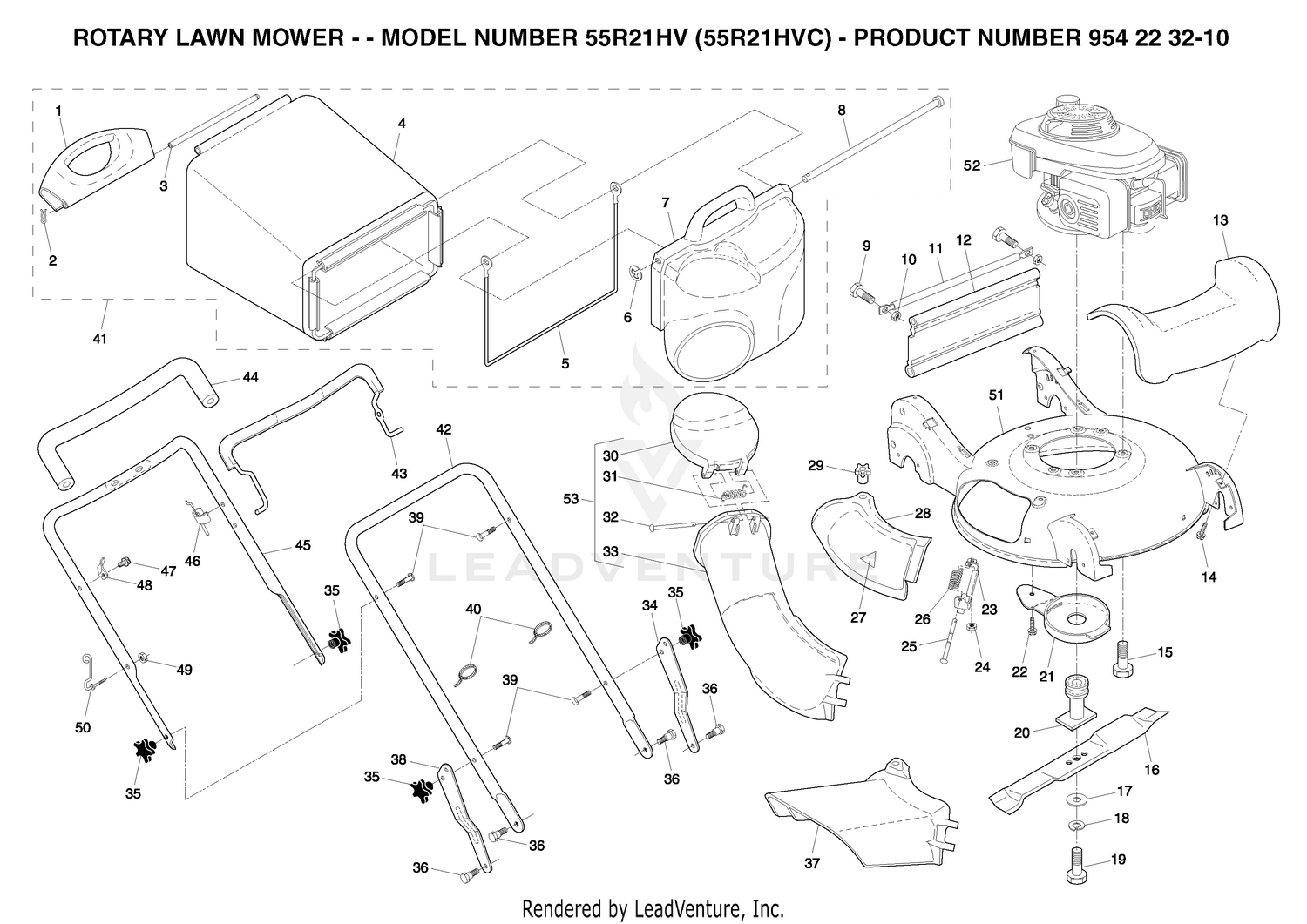

| Ref | Part Number | Description |
|---|
| 1 |
532190582 |
HANDLE.GRASSBAG.REAR.H-GRAY Price: $12.99 |
| 2 |
532065322 |
COTTER PIN (3 2)(2 2MC) Price: $3.99 |
| 3 |
532183483 |
ROD.REAR.HANDLE.YELLOW Price: $4.99 |
| 4 |
532410670 |
GBAG.52510010.BLK.GEN.SERVIC This part replaces 532190577. Price: $69.99 |
| 5 |
532188506 |
FRAME, GRASSBAG Price: $22.99 |
| 6 |
812000014 |
E-RING Price: $3.99 |
| 7 |
532188498 |
DOOR.GRASSBAG.H-GRAY This part replaces 532190581. Price: $43.99 |
| 8 |
532183479 |
ROD, PIVOT Price: $12.99 |
| 10 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 11 |
532188359 |
TUBE.SKIRT.HV.RWGD.BLACK This part replaces 532190692. Price: $27.99 |
| 12 |
532188503 |
SKIRT, REAR This part replaces 532190566. Price: $8.99 |
| 13 |
586531501 |
COVER.FRONT.21.HI-VAC.BLK This part replaces 532190519. Price: $9.99 |
| 14 |
532194189 |
SCREW.HWH.13-16-5.8.BZP This part replaces 532184572. Price: $4.99 |
| 15 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 16 |
532189028 |
BLADE.21.PUSH/RWGD/FWG Price: $19.99 |
| 17 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 18 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 19 |
532183431 |
SCREW.HX.HEAD.3/8-24 Price: $4.99 |
| 21 |
532188510 |
SHIELD.DEBRIS.21.HV.RWGD.BLACK This part replaces 532190516. Price: $9.99 |
| 22 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 23 |
532183609 |
BRACKET.ASM.HINGE Price: $4.99 |
| 24 |
532191730 |
NUT.HEX.FLANGE.1/4 This part replaces 532751152. Price: $3.99 |
| 25 |
532183445 |
ROD.HINGE.1/4"3.82" Price: $5.99 |
| 26 |
532183446 |
SPRING.MULCH.DOOR Price: $4.99 |
| 27 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 28 |
532188507 |
DOOR.MULCH This part replaces 532190515. Price: $9.99 |
| 29 |
532183447 |
KNOB.MULCH.DOOR Price: $4.99 |
| 30 |
532190580 |
CHUTE.DOOR.21.HV.H-GRAY Price: $14.99 |
| 31 |
532183478 |
SPRING Price: $6.99 |
| 32 |
532183445 |
ROD.HINGE.1/4"3.82" Price: $5.99 |
| 33 |
532188504 |
DISCHARGE CHUTE, PLASTIC This part replaces 532190578. Price: $27.99 |
| 35 |
532185588 |
KNOB.HANDLE.STAR.HUSQ.GRAY Price: $5.99 |
| 36 |
532194187 |
SCREW.5/16X.680.TRIM.H This part replaces 532183465. Price: $5.99 |
| 37 |
532185996 |
GUARD.CLIP.ON.21.HV.GRAY Price: $21.99 |
| 39 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 This part replaces 532184568. Price: $5.99 |
| 40 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 42 |
532187096 |
HANDLE.LOWER.GREY Price: $27.99 |
| 43 |
532426812 |
BAIL.CONTROL.MZR.BS.ORANGE This part replaces 532186298. Price: $37.99 |
| 44 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 45 |
532186296 |
HANDLE.ASM.UPPER.W/GRIP Price: $44.99 |
| 46 |
532424983 |
CABLE.MZR.ZONE.CONTROL This part replaces 532183473. Price: $14.99 |
| 47 |
532184570 |
SCREW Price: $3.99 |
| 48 |
532430034 |
BRACKET.UPSTOP.RT This part replaces 532125203. Price: $5.99 |
| 49 |
532184569 |
HEX NUT Price: $2.99 |
| 50 |
532188501 |
GUIDE.ROPE.WALK.MOWER Price: $12.99 |
| 53 |
532189014 |
CHUTE.LOWER.ASM.WALK.MOWER Price: $32.99 |
