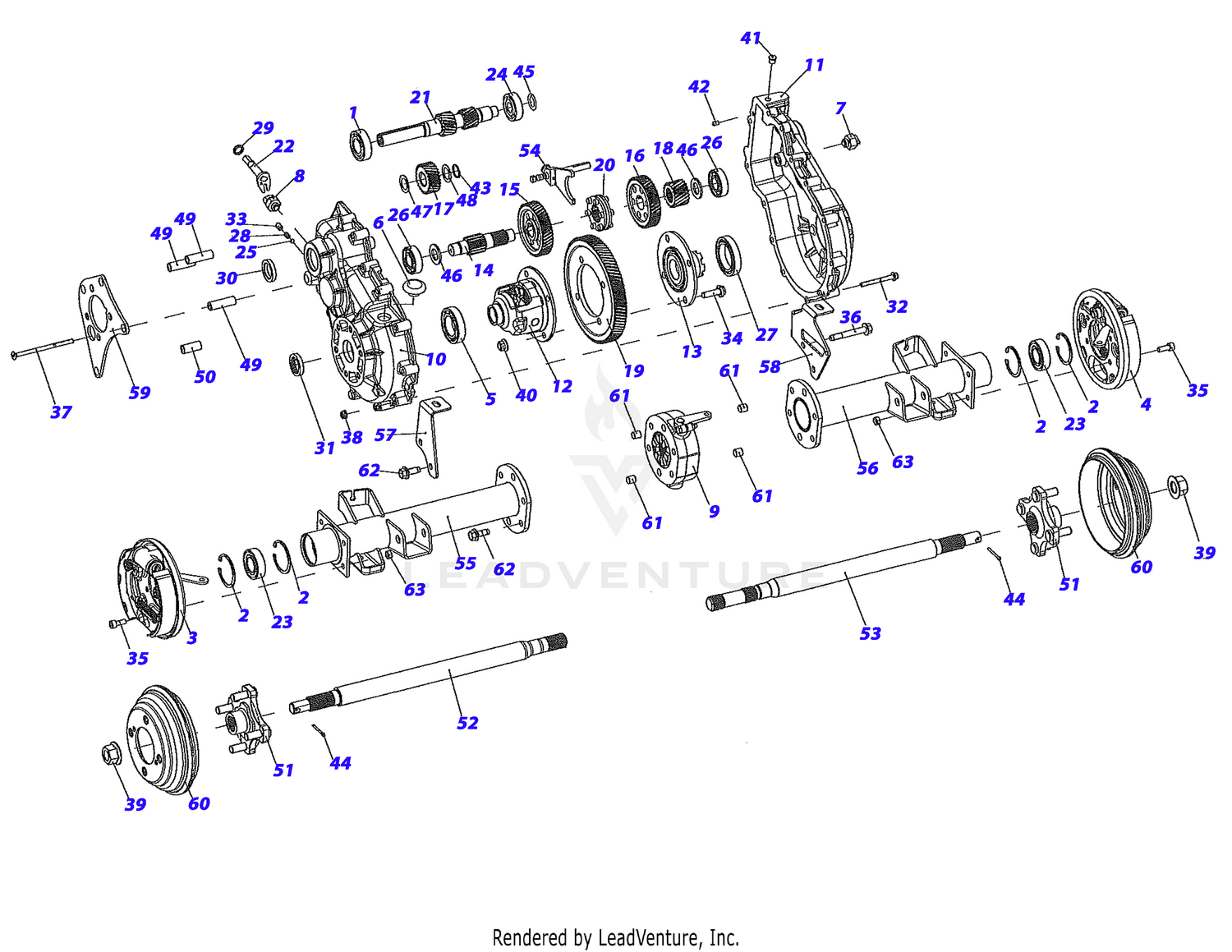

Axle-Rear (Breakdown)
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DC-585965 | BALL BEARING Price: $17.55 |
| 2 | DC-840293 | RETAINING RING Price: $7.30 |
| 3 | DC-4171051 | BRAKE ASSEMBLY (RH) Price: $364.51 |
| 4 | DC-4171052 | BRAKE ASSEMBLY (LH) Price: $364.51 |
| 5 | DC-002HD111 | BALL BEARING Price: $22.01 |
| 6 | DC-002HG101 | PLUG Price: $12.76 |
| 7 | DC-002SJ100 | SWITCH Price: $57.17 |
| 8 | DC-002SJ101 | SWITCH Price: $65.55 |
| 9 | DC-012CB109X | DIFF LOCK HOUSING ASSEMBLY Not Available Price: |
| 10 | DC-012CH345X | HOUSING AND SHAFT ASSEMBLY Price: $255.48 |
| 11 | DC-012CH416 | CASE HOUSING RH Price: $165.89 |
| 12 | DC-012DA121X | DIFFERENTIAL ASSEMBLY Price: $425.07 |
| 13 | DC-012DC123 | FLANGE 1/2-DIFF CA Price: $181.45 |
| 14 | DC-012GS200 | INTERMEDIATE SHAFT Price: $98.54 |
| 15 | DC-012GS202X | FORWARD GEAR ASSEMBLY Price: $155.97 |
| 16 | DC-012GS204X | REVERSE GEAR ASSEMBLY Price: $209.56 |
| 17 | DC-012GS207XD | IDLER GEAR ASSEMBLY Price: $130.76 |
| 18 | DC-012GS215 | PINION GEAR Price: $70.28 |
| 19 | DC-012GS216 | RING GEAR Price: $203.45 |
| 20 | DC-012GS302 | GEAR-CLUTCH Price: $116.68 |
| 21 | DC-012GS307 | INPUT SHAFT Price: $329.43 |
| 22 | DC-012GV194X | SHIFT ACTUATOR ASSEMBLY Price: $51.13 |
| 23 | DC-012HD106 | BALL BEARING Price: $26.65 |
| 24 | DC-012HD111 | BALL BEARING Price: $12.08 |
| 25 | DC-012HD123 | DETENT BALL Price: $6.35 |
| 26 | DC-012HD129 | BALL BEARING Price: $30.52 |
| 27 | DC-012HD142 | BALL BEARING Price: $68.11 |
| 28 | DC-012HE101 | COMPRESSION SPRING Price: $6.93 |
| 29 | DC-012HH122 | OIL SEAL Price: $3.83 |
| 30 | DC-012HH128 | OIL SEAL Price: $8.93 |
| 31 | DC-012HH139 | OIL SEAL Price: $10.96 |
| 32 | DC-012HM110-1 | FLANGE SCREW Price: $4.36 |
| 33 | DC-012HM112 | SET SCREW 5/16-18 x .500 Price: $5.90 |
| 34 | DC-012HM129 | HEX BOLT Price: $4.69 |
| 35 | DC-012HM130-1 | CAP SCREW M8 x 1.15 x 10 Price: $4.85 |
| 36 | DC-012HM137 | FLANGE HD CA SCREW Price: $2.86 |
| 37 | DC-012HM158 | CAP SCREW Price: $6.65 |
| 38 | DC-012HN120 | LOCK NUT Price: $4.36 |
| 39 | DC-012HN127 | HEX FLANGE NUT 3/4-16 Price: $8.49 |
| 40 | DC-012HN138 | LOCK NUT Price: $3.60 |
| 41 | DC-012HN140 | VENT Price: $6.23 |
| 42 | DC-012HP120 | DOWEL PIN Price: $3.17 |
| 43 | DC-012HR128 | RETAINING RING Price: $3.11 |
| 44 | DC-012HR130 | COTTER PIN 1/8 x 1.15 Price: $5.90 |
| 45 | DC-012HS120-15 | SHIM WASHER Price: $9.54 |
| 46 | DC-012HS121 | FLAT SPACER Price: $6.01 |
| 47 | DC-012HS125 | THRUST WASHER Price: $3.17 |
| 48 | DC-012HS126 | THRUST WASHER Price: $3.17 |
| 49 | DC-012HS142-1 | MOUNTING COVER SPACER Price: $16.57 |
| 50 | DC-012HS142-2 | MOUNTING COVER SPACER Price: $16.57 |
| 51 | DC-012HU143X | WHEEL HUB ASSEMBLY Price: $65.66 |
| 52 | DC-012SR170-1 | AXLE SHAFT ASSEMBLY Price: $139.80 |
| 53 | DC-012SR171-1 | REAR AXLE SHAFT ASEMBLY Price: $160.71 |
| 54 | DC-012SV118X | SHIFT FORK ASSEMBLY Price: $125.09 |
| 55 | DC-012TA485X | TUBE ASSEMBLY (LH) Price: $295.62 |
| 56 | DC-012TA486X | TUBE ASSEMBLY (RH) Price: $339.81 |
| 57 | DC-012TF329 | EXHAUST BRACKET Price: $54.69 |
| 58 | DC-012TF330 | DIFF LOCK BRACKET Price: $56.00 |
| 59 | DC-012TH101 | CVT COVER ASSEMBLY Price: $133.01 |
| 60 | DC-012WA135 | BRAKE DRUM Price: $109.58 |
| 61 | DC-026HP100 | LOCATING BUSHING Price: $3.75 |
| 62 | DC-070HM282 | FLANGE SCREW Price: $3.49 |
| 63 | DC-070HN218 | LOCK NUT Price: $5.90 |
