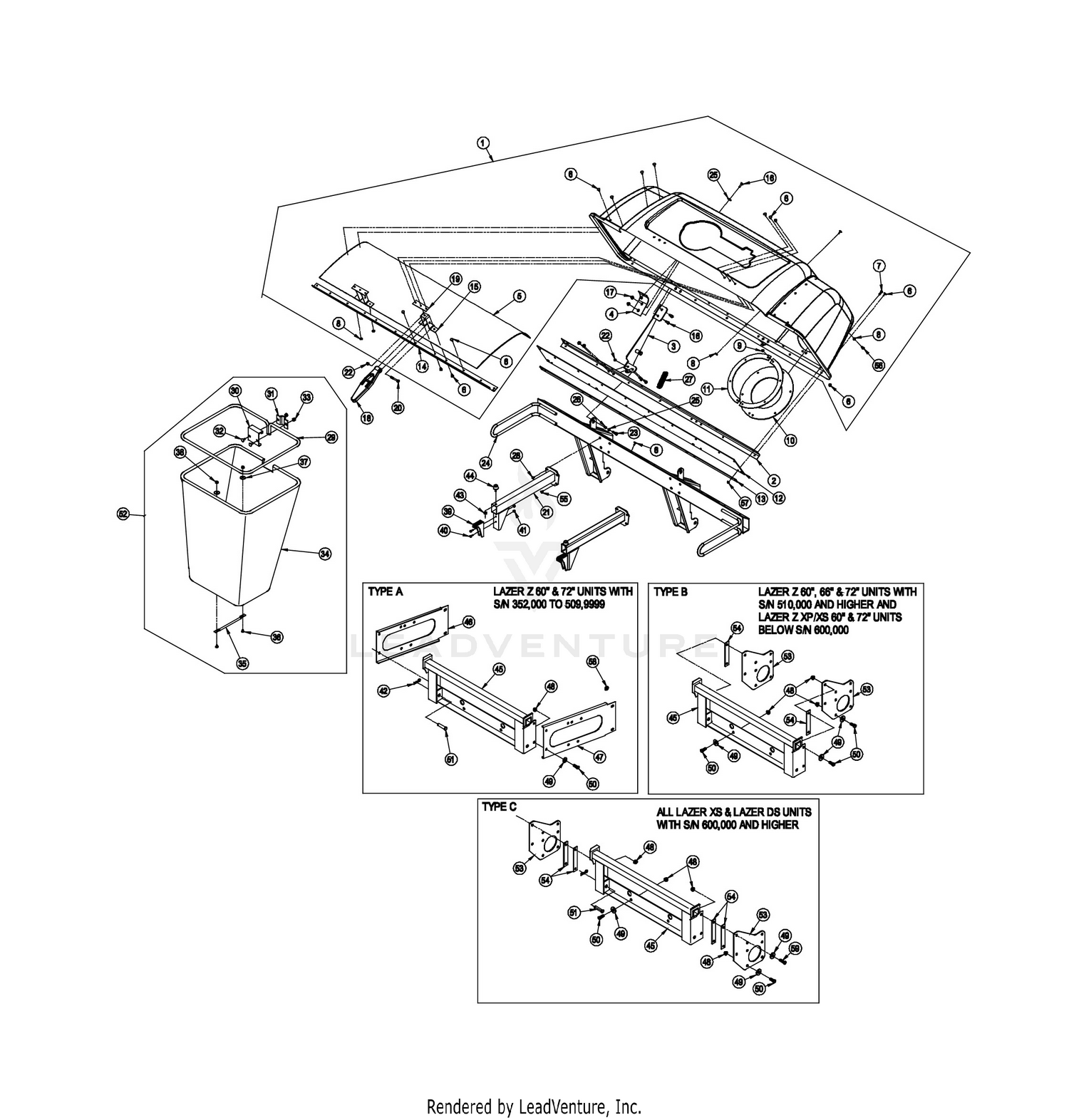

| Ref | Part Number | Description |
|---|
| 2 |
103-0382-03 |
STIFFENER-BAGGER, TOP Price: $60.99 |
| 3 |
103-0430-03 |
HINGE ASM Price: $124.99 |
| 4 |
103-0391 |
REINFORCEMENT-HOOD, BAGGE Price: $11.99 |
| 5 |
103-0440 |
SCREEN-BAGGER Price: $29.99 |
| 6 |
114439 |
RIVET-BLIND Price: $1.19 |
| 7 |
1-803075 |
SCREW-HEAD, TRUSS Price: $1.19 |
| 8 |
3256-61 |
WASHER-FLAT Price: $2.29 |
| 9 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 10 |
103-0439 |
SEAL-TUBE Price: $45.99 |
| 11 |
103-0378 |
CLAMP-SEAL Price: $30.99 |
| 12 |
103-0451 |
SEAL-HINGE Price: $269.99 |
| 13 |
103-0452-03 |
PLATE-BACKING Price: $38.99 |
| 14 |
103-0380-03 |
SUPPORT-SCREEN Price: $53.99 |
| 15 |
103-0379 |
BRACKET-MOUNT Price: $38.99 |
| 16 |
321-4 |
SCREW-HH Price: $0.99 |
| 17 |
32128-33 |
NUT-HF Price: $0.69 |
| 18 |
1-653403 |
LATCH Price: $76.99 |
| 19 |
103-0376 |
PLATE-LATCH, REINFORCEMEN Price: $7.99 |
| 20 |
321-11 |
SCREW-HH Price: $0.79 |
| 21 |
103-5124-03 |
SUPPORT-BAG Price: $153.99 |
| 22 |
3296-42 |
NUT-LOCK, NI Price: $0.39 |
| 23 |
321-6 |
SCREW-HH Price: $0.49 |
| 24 |
103-4735-03 |
UPRIGHT BAGGER ASM Price: $764.99 |
| 25 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 26 |
1-633545 |
SPACER Price: $2.39 |
| 27 |
1-653544 |
SPRING-EXTENSION Price: $7.79 |
| 28 |
322-3 |
SCREW-HH Price: $0.79 |
| 29 |
1-653529-03 |
FRAME-BAG Price: $114.99 |
| 30 |
114973-03 |
HANGER-BAG Price: $23.99 |
| 31 |
114974-03 |
CLAMP Price: $13.99 |
| 32 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 33 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 34 |
161-6778 |
Bag ASM This part replaces 116-0757. Price: $35.99 |
| 35 |
1-653566 |
HANDLE-BAG Price: $11.99 |
| 36 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 37 |
1-653036 |
WASHER Price: $4.79 |
| 38 |
3296-42 |
NUT-LOCK, NI Price: $0.39 |
| 39 |
1-653404 |
CATCH Price: $35.99 |
| 40 |
3290-500 |
SCREW-PPH Price: $1.19 |
| 41 |
3290-148 |
NUT-HF Price: $0.39 |
| 42 |
1-806005 |
PIN-COTTER Price: $2.39 |
| 43 |
32128-33 |
NUT-HF Price: $0.69 |
| 44 |
109-2365 |
BUMPER-RUBBER This part replaces 1-523420. Price: $4.89 |
| 45 |
103-0429-03 |
MOUNT-BAGGER Price: $484.99 |
| 46 |
103-5612-03 |
BRACKET-FRAME, LH Price: $77.99 |
| 47 |
103-0399-03 |
BRACKET-FRAME, RH Price: $96.99 |
| 48 |
3290-357 |
NUT-HHF, WHIZ Price: $0.79 |
| 49 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 50 |
323-7 |
SCREW-HH Price: $2.69 |
| 51 |
283-69 |
PIN-CLEVIS Price: $9.99 |
| 52 |
116-0754 |
BAG AND FRAME ASM Price: $182.99 |
| 53 |
103-2975-03 |
PLATE-MOUNT, BAGGER Price: $57.99 |
| 54 |
103-1155-03 |
SPACER Price: $8.39 |
| 55 |
3274-55 |
SCREW-HSBH Price: $4.79 |
| 56 |
3250-27 |
SCREW-PPH Price: $0.59 |
| 57 |
32153-1 |
NUT-LOCK, SIDE Price: $3.69 |
