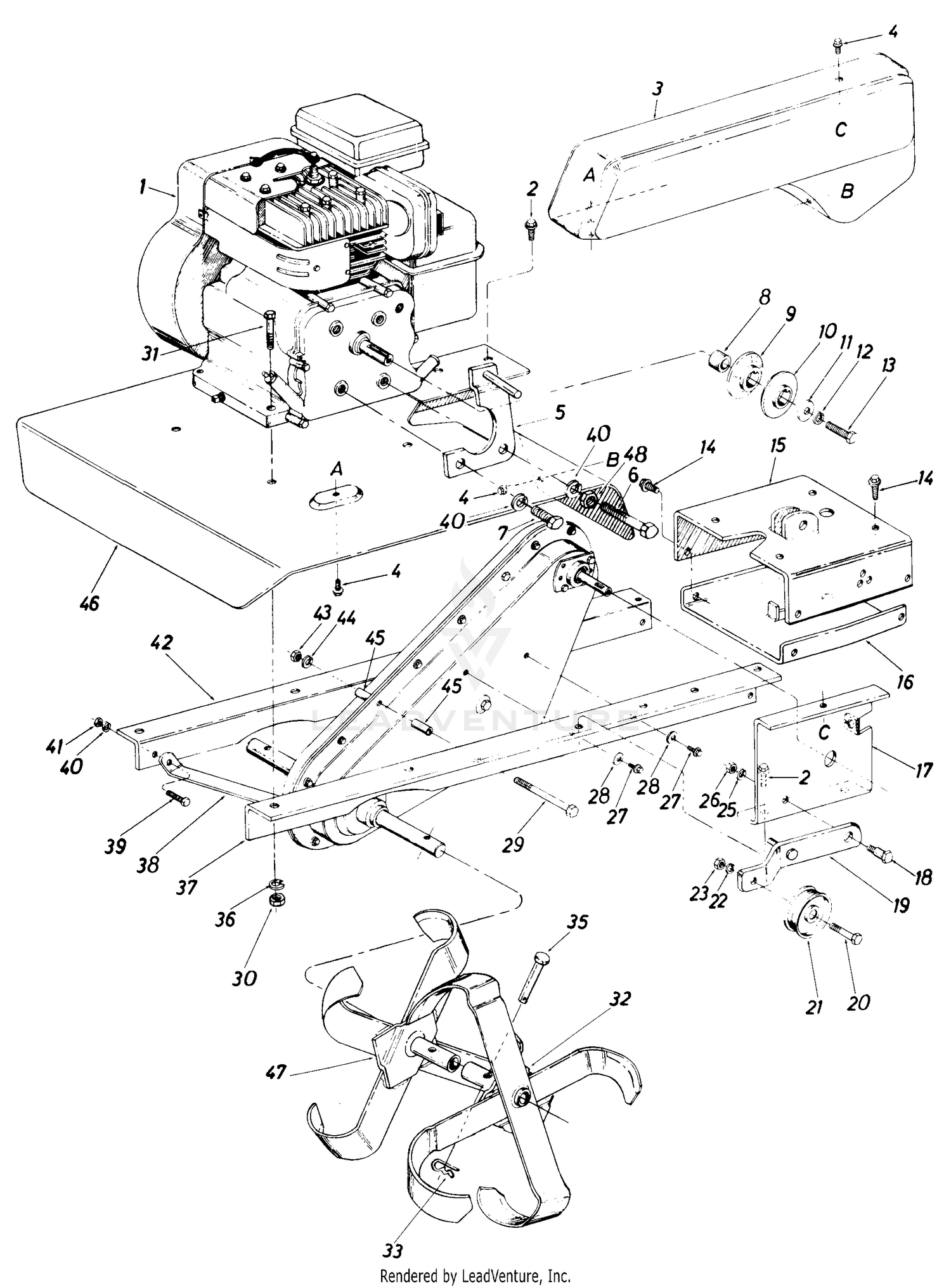

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Engine |
| 2 |
710-0600 |
SCREW 5/16-24 x .500 Not Available Price: |
| 4 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4 -20 x .50" Lg. Price: $3.86 |
| 5 |
784-0114 |
Belt Keeper Brkt. Ass'y. Price: Call Us |
| 6 |
710-0593 |
HEX SCREW 5/16-24 x 2.25 Not Available Price: |
| 7 |
710-0237 |
Hex Bolt 5/16-24 x .62" Lg. (Grade 5) Price: $3.93 |
| 8 |
750-0345 |
SPACER Not Available Price: |
| 9 |
748-0282 |
HALF PULLEY-ENGINE Not Available Price: |
| 10 |
748-0282 |
HALF PULLEY-ENGINE Not Available Price: |
| 11 |
736-0258 |
Fl-Wash. 3/8" I.D. x 1.25" O.D. x .100 Price: $3.93 |
| 12 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 13 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 14 |
710-0623 |
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg. Price: $3.93 |
| 15 |
04950 |
BRACKET-HA Not Available Price: |
| 16 |
04943 |
U-Channel Brkt. Ass'y. Price: Call Us |
| 18 |
738-0322A |
Shoulder Screw, .625 Dia. x .21 This part replaces 7380322. Price: $5.94 |
| 19 |
784-0027 |
Idler Brkt. Ass'y. Price: Call Us |
| 20 |
710-0344 |
Hex Scr. 3/8-16 x 1.50" Lg. Price: $5.16 |
| 21 |
756-0137 |
FLAT IDLER PULLEY-2 1/4 OD X Not Available Price: |
| 22 |
736-0169 |
L-Wash. 3/8" I.D.* Price: $3.33 |
| 23 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 25 |
736-0169 |
L-Wash. 3/8" I.D.* Price: $3.33 |
| 26 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 27 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 28 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 29 |
710-0189 |
Hex Scr. 5/16-18 x 3.0" Lg. Price: $5.30 |
| 30 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 31 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0442. Price: $3.75 |
| 32 |
N/A |
See Tine Chart |
| 33 |
714-0149B |
Hairpin Cotter Price: $3.95 |
| 35 |
711-0679A |
Clevis Pin .375" Dia. x 1.88" This part replaces 1545-029. Price: $12.40 |
| 36 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 37 |
04949B |
FRAME-RAIL Not Available Price: |
| 38 |
04933 |
Front Brace Brkt. Price: Call Us |
| 39 |
710-0118 |
Hex Scr. 5/16-18 x .75" Lg.* Price: $3.76 |
| 40 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 41 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 42 |
04948B |
FRAME-RAIL Not Available Price: |
| 43 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 44 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 45 |
750-0470 |
Spacer Price: $5.99 |
| 46 |
04941 |
SHIELD-TIN Not Available Price: |
| 47 |
N/A |
See Tine Chart |
