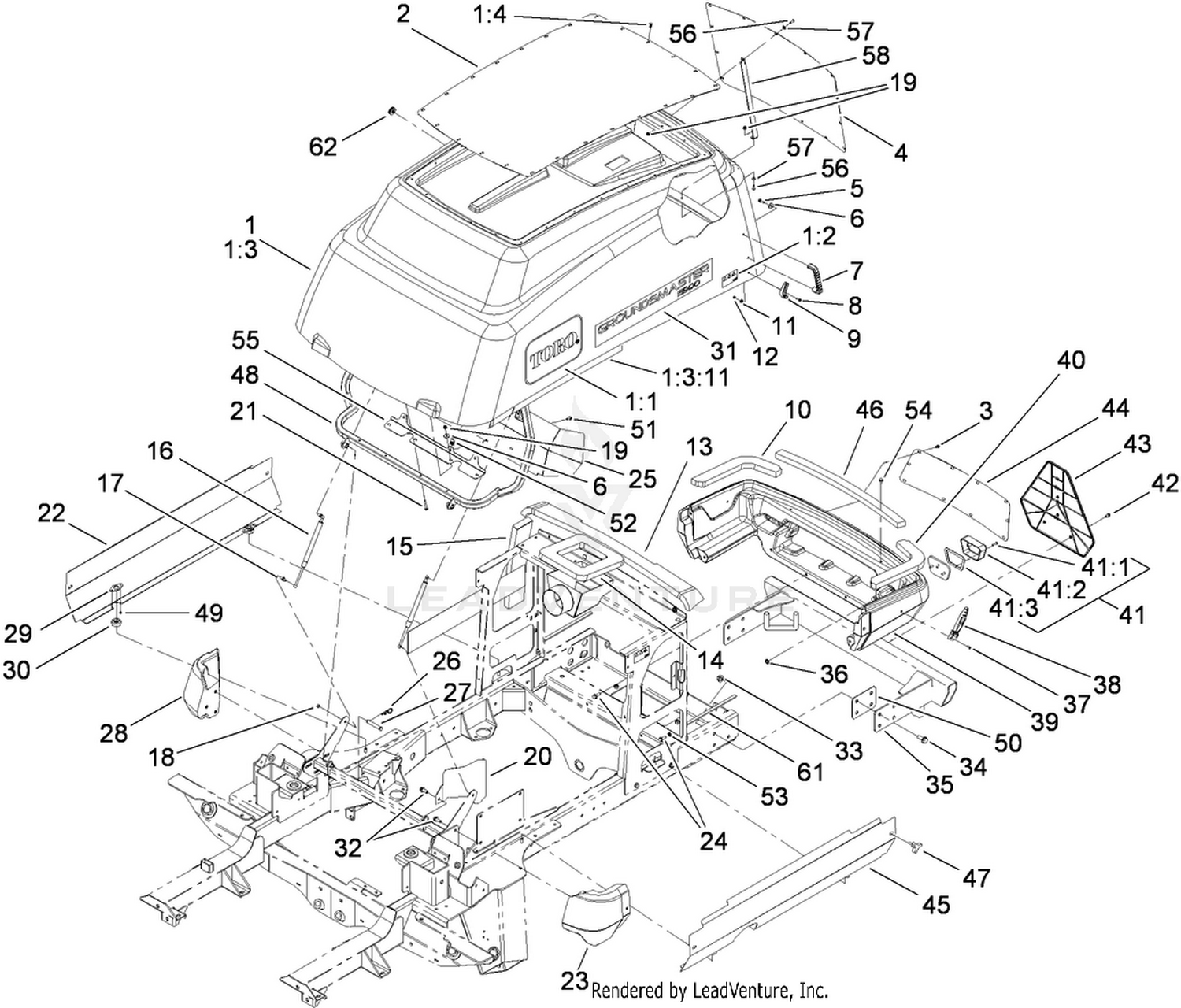

| Ref | Part Number | Description |
|---|
| 1 |
117-9405 |
HOOD ASM Price: $3,751.28 |
| 2 |
114-0076-03 |
SCREEN-HOOD, TOP Price: $333.74 |
| 3 |
114-4899 |
PLUG-PLASTIC Price: $0.39 |
| 4 |
114-0077-03 |
SCREEN-HOOD, BACK Price: $215.51 |
| 5 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 6 |
87-6630 |
WASHER-PLAIN Price: $0.39 |
| 7 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 8 |
3274-39 |
SCREW-HSBH Price: $4.34 |
| 9 |
103-2897 |
LATCH-CATCH Price: $7.99 |
| 10 |
114-0187 |
FOAM-REAR, RH Price: $37.15 |
| 11 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 12 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 13 |
114-0185 |
FOAM-HOOD, TOP Price: $56.61 |
| 14 |
114-0186 |
FOAM-HOOD, AIR BOX Price: $40.39 |
| 15 |
114-0184 |
FOAM-HOOD, SIDE Price: $22.72 |
| 16 |
114-5532 |
CYLINDER-GAS Price: $109.19 |
| 17 |
103-5752 |
STUD-BALL Price: $6.69 |
| 18 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 19 |
104-7201 |
NUT-HF Price: $0.69 |
| 20 |
117-9417-03 |
SHIELD-HEAT This part replaces 114-5528-03. Price: $62.09 |
| 21 |
321-10 |
SCREW-HH Price: $1.29 |
| 22 |
114-4890-03 |
PANEL-SIDE Price: $182.02 |
| 23 |
117-5456 |
SHROUD-FRONT, LH Price: $86.21 |
| 24 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 25 |
115-5498-03 |
SHIELD-HEAT Price: $151.56 |
| 26 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 27 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 28 |
117-5457 |
SHROUD-FRONT, RH Price: $86.21 |
| 29 |
114-5619 |
PLATE-GROMMET Price: $13.92 |
| 30 |
114-4869 |
GROMMET Price: $4.31 |
| 31 |
115-5448 |
DECAL-HOOD Price: $68.75 |
| 32 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 33 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 34 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 35 |
131-2310-03 |
BUMPER This part replaces 115-5457-03. Price: $670.60 |
| 36 |
3290-506 |
PALNUT Price: $0.61 |
| 37 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 38 |
103-2898 |
LATCH-RUBBER Price: $32.99 |
| 39 |
114-4868 |
REAR LOWER SHROUD ASM Price: $353.81 |
| 40 |
114-0188 |
FOAM-REAR, LH Price: $37.15 |
| 41 |
104-6662 |
STOP AND TAIL LAMP ASM Price: $107.61 |
| 42 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 43 |
92-7760 |
EMBLEM-VEHICLE, SLOW MOVING Price: $41.14 |
| 44 |
114-4897-03 |
SCREEN-SHROUD, LOWER Price: $84.48 |
| 45 |
114-5592-03 |
PANEL-SIDE, LH Price: $176.39 |
| 46 |
114-0183 |
FOAM-HOOD, REAR Price: $21.82 |
| 47 |
106-2240 |
KNOB Price: $12.99 |
| 48 |
114-5548-03 |
FRAME-HOOD Price: $333.50 |
| 49 |
1-803035 |
RIVET-POP Price: $0.69 |
| 50 |
115-5458-0P |
SHIM-BUMPER This part replaces 115-5458-03. Price: $16.01 |
| 51 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 52 |
107069 |
CLIP Price: $1.79 |
| 53 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 54 |
32180-030 |
CLIP-TIE Price: $4.19 |
| 55 |
115-5497-03 |
PLATE-SUPPORT Price: $46.98 |
| 56 |
99-7335 |
SCREW Price: $0.47 |
| 57 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 58 |
115-5522-03 |
STRAP-HOOD Price: $36.66 |
| 61 |
107-8676 |
SEAL-FOAM Price: $1.96 |
