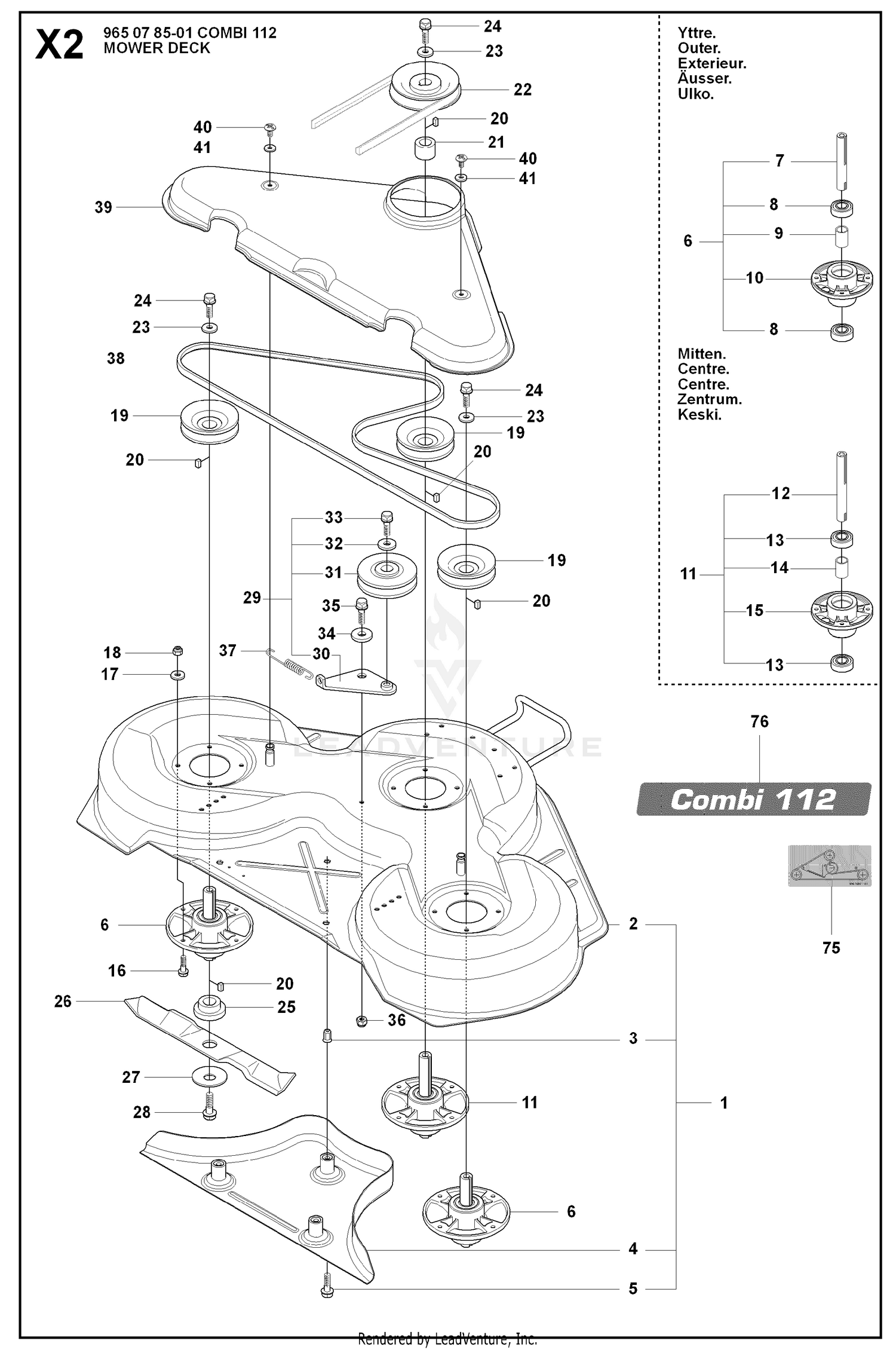

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
544113003 |
CUTTING DECK C112 GREY RIDER Price: $449.99 |
| 2 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 2 |
544113101 |
CUTTING DECK ASSY C112 GREY Price: $329.99 |
| 3 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 3 |
506916201 |
NUT Price: $4.99 |
| 4 |
544449301 |
PLUG Price: $69.99 |
| 4 |
63-9750 |
MOUNT Price: $18.92 |
| 5 |
506570104 |
BOLT Price: $4.99 |
| 5 |
63-8410 |
WASHER Price: $1.76 |
| 6 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 6 |
576384102 |
BLADE HOUSING ASSY This part replaces 544065901. Price: $79.99 |
| 7 |
104-7201 |
NUT-HF Price: $0.69 |
| 7 |
544067902 |
SHAFT Price: $37.99 |
| 8 |
1-303352 |
WASHER-SPINDLE Price: $1.20 |
| 8 |
738230434 |
BEARING Price: $17.99 |
| 9 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 9 |
544068001 |
SPACER Price: $11.99 |
| 10 |
119-1409-03 |
MOUNT-PLATE Price: $20.15 |
| 11 |
323-20 |
SCREW-HH Price: $1.28 |
| 11 |
576384101 |
BLADE HOUSING ASSY This part replaces 544065902. Price: $84.99 |
| 12 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 12 |
544067901 |
SHAFT Price: $39.99 |
| 13 |
115-0280 |
STEER SELECTOR VALVE ASM Price: $576.12 |
| 13 |
738230434 |
BEARING Price: $17.99 |
| 14 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 14 |
544068001 |
SPACER Price: $11.99 |
| 15 |
321-11 |
SCREW-HH Price: $0.36 |
| 15 |
576384201 |
BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 16 |
131-3352-03 |
PLATE-MOUNT, VALVE Price: $11.97 |
| 16 |
535423801 |
BOLT Price: $4.99 |
| 17 |
117-2247 |
CROSS-TRAX TRACTION VALVE ASM Price: $1,280.98 |
| 17 |
734116401 |
WASHER BRB 8.4X17 Price: $5.99 |
| 18 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 18 |
732211801 |
LOCKNUT M8 Price: $3.99 |
| 19 |
323-8 |
SCREW-HH Price: $1.20 |
| 19 |
506922101 |
PULLEY Price: $29.99 |
| 20 |
506533501 |
KEY Price: $3.99 |
| 21 |
544068002 |
SPACER Price: $9.99 |
| 22 |
506778601 |
PULLEY Price: $49.99 |
| 23 |
734117441 |
WASHER Price: $3.99 |
| 24 |
544114101 |
SCREW Price: $3.99 |
| 25 |
535504202 |
ADAPTER Price: $19.99 |
| 26 |
504188110 |
BLADE Price: $32.99 |
| 27 |
588145601 |
WASHER This part replaces 506792301. Price: $6.99 |
| 28 |
544114101 |
SCREW Price: $3.99 |
| 29 |
586966601 |
BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 30 |
586966601 |
BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 31 |
506532701 |
PULLEY Price: $39.99 |
| 32 |
734116441 |
SPACER Price: $3.99 |
| 33 |
506558302 |
BOLT Price: $3.99 |
| 34 |
584288604 |
Washers This part replaces 506918702. Price: $3.99 |
| 35 |
725245171 |
SCREW Price: $2.08 |
| 36 |
732211801 |
LOCKNUT M8 Price: $3.99 |
| 37 |
506533101 |
SPRING Price: $9.99 |
| 38 |
594978001 |
BELT This part replaces 535411901. Price: $59.99 |
| 39 |
544096203 |
BELT COVER C112 HUSQVARNA-GREY This part replaces 544096201. Price: $44.99 |
| 40 |
506982601 |
SCREW Price: $5.99 |
| 41 |
506559701 |
WASHER Price: $4.99 |
| 75 |
506789701 |
Decal Price: $21.55 |
| 76 |
544238105 |
LABEL Price: $3.99 |
