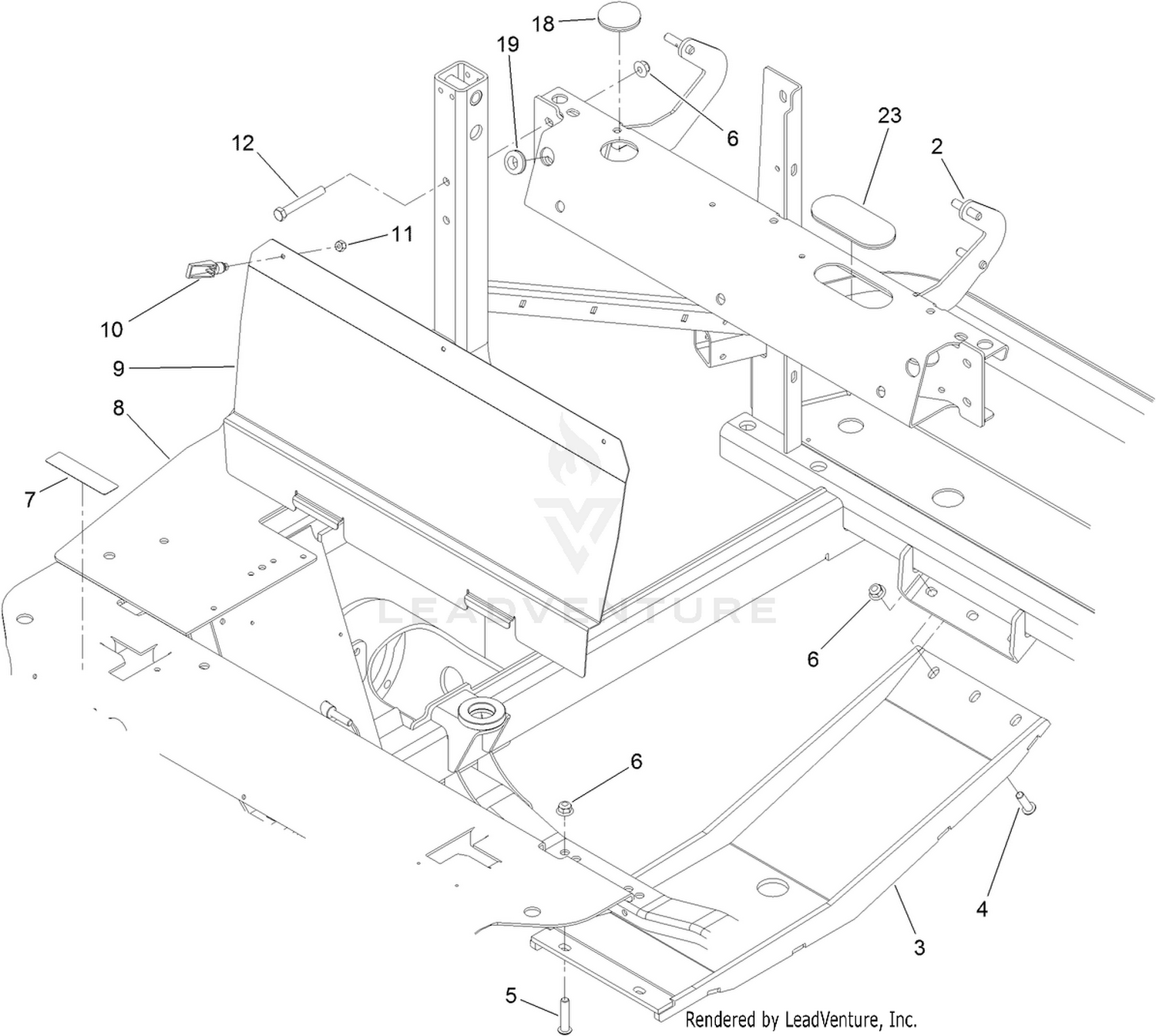

Frame Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 132-8114-03 | CROSSMEMBER ASM Price: $328.77 |
| 3 | 125-2660-03 | SKID Price: $263.76 |
| 4 | 3274-63 | SCREW-HSBH Price: $1.09 |
| 5 | 3274-107 | SCREW-HSBH Price: $2.79 |
| 6 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 117-2718 | DECAL-ARRESTER, SPARK Price: $5.95 |
| 8 | 120-0060-03 | FRAME-REAR Price: Call Us |
| 9 | 121-3381-03 | PANEL-REAR Price: $90.08 |
| 10 | 74-5950 | LATCH-SWELL Price: $21.28 |
| 11 | 1-804254 | NUT-LOCK, HH Price: $1.29 |
| 12 | 119-4162 | SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 18 | 105-5761 | GROMMET Price: $13.60 |
| 19 | 237-124 | GROMMET Price: $2.30 |
