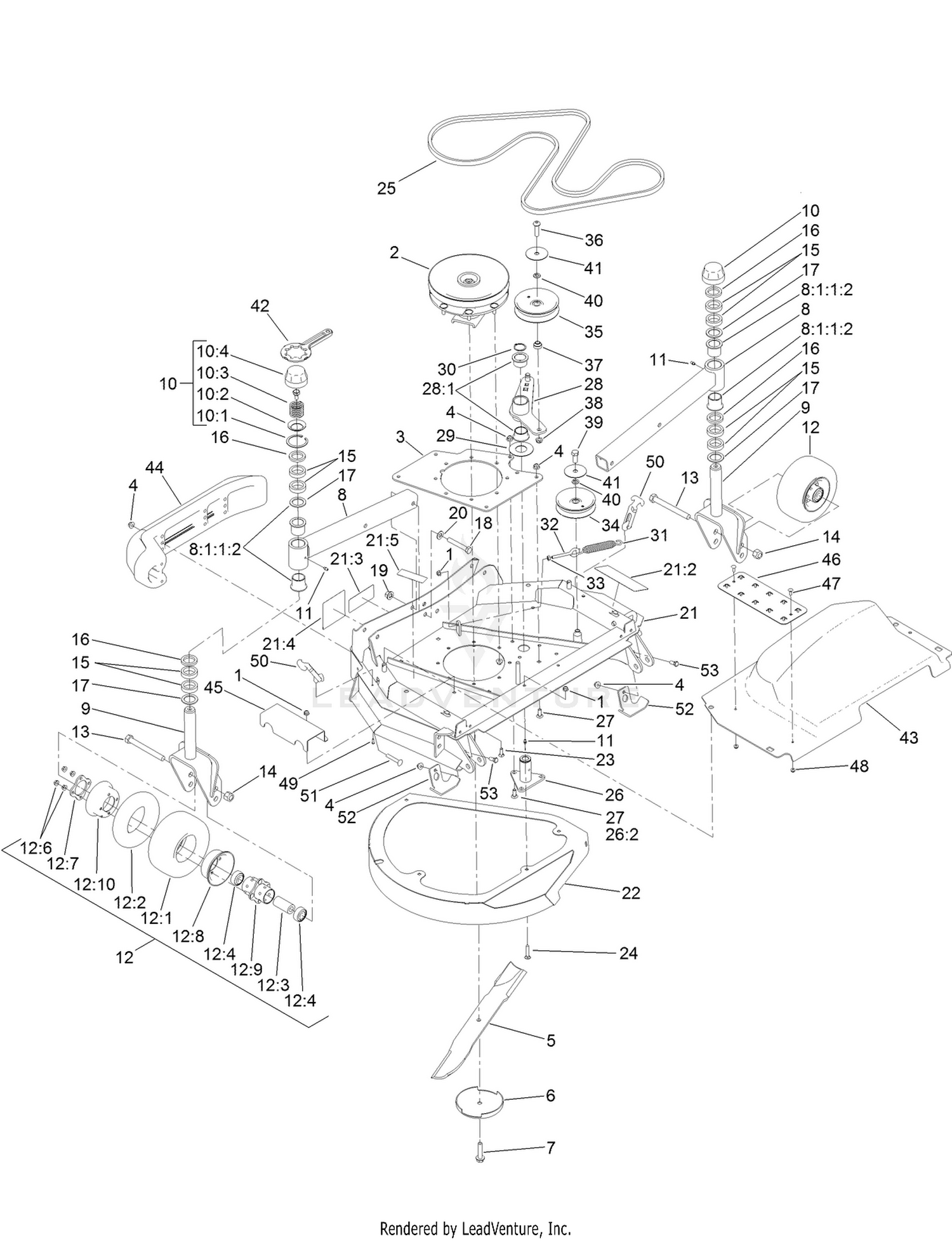

RH Wing Deck Assembly
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 2 | 138-1932 | HIGH DRIVEN SPINDLE ASM Price: $706.55 |
| 3 | 127-4903-0P | PLATE-STIFFENER, RH Price: $61.97 |
| 4 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 5 | 125-9444-03 | BLADE-COMBINATION, 25.18 Price: $43.26 |
| 6 | 72-9361 | CUP-SCALP, ANTI Price: $39.78 |
| 7 | 92-5816 | BOLT-BLADE Price: $4.93 |
| 8 | 121-5263-01 | CASTOR ARM ASM Price: $218.49 |
| 9 | 140-6306-01 | CASTER FORK ASM This part replaces 104-0762-01. Price: $241.08 |
| 10 | 92-8862 | HOC CAP ASM Price: $71.16 |
| 11 | 302-5 | FITTING-GREASE Price: $0.59 |
| 12 | 93-9938 | WHEEL ASM Price: $144.61 |
| 13 | 327-24 | SCREW-HH Price: $7.99 |
| 14 | 3296-53 | NUT-LOCK, NI Price: $1.47 |
| 15 | 69-1510 | SPACER Price: $4.48 |
| 16 | 121-5485 | SPACER Price: $7.12 |
| 17 | 69-6860 | WASHER-THRUST Price: $3.15 |
| 18 | 325-13 | SCREW-HH Price: $3.57 |
| 19 | 99-5107 | NUT-LOCK Price: $1.77 |
| 20 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 21 | 127-4841 | RH DECK ASM Price: $2,410.93 |
| 22 | 121-5264-0P | CHAMBER-RH Price: $310.94 |
| 23 | 3230-22 | SCREW-CARR Price: $1.99 |
| 24 | 3230-5 | BOLT-CAR Price: $0.54 |
| 25 | 121-5252 | BELT-V Price: $86.46 |
| 26 | 137-5640 | IDLER PIVOT ASM Price: $26.88 |
| 27 | 3231-22 | SCREW-CARR Price: $0.72 |
| 28 | 140-6175 | IDLER ARM ASM Price: $115.65 |
| 29 | 108-1926 | WASHER Price: $5.30 |
| 30 | 32120-84 | RING-SNAP, EXTERNAL Price: $0.61 |
| 31 | 127-4911 | SPRING-EXTENSION Price: $50.13 |
| 32 | 85-9910 | EYEBOLT Price: $28.77 |
| 33 | 3217-6 | NUT-HEX Price: $1.19 |
| 34 | 140-5848 | PULLEY-IDLER Price: $62.48 |
| 35 | 1-613098 | PULLEY-IDLER Price: $33.36 |
| 36 | 108-1993 | SCREW-HSBH Price: $3.66 |
| 37 | 121-5274 | SPACER-IDLER Price: $35.01 |
| 38 | 3296-45 | NUT-HEX Price: $3.79 |
| 39 | 117-3266 | SCREW-HH Price: $1.63 |
| 40 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 41 | 100-3102 | WASHER-FLAT Price: $3.70 |
| 42 | 138-6367 | WRENCH Price: $9.93 |
| 43 | 121-5471 | COVER-RH Price: $274.04 |
| 44 | 112-1479 | SKID-BUMPER, DECK Price: $95.09 |
| 45 | 121-5465-0P | SUPPORT-STEP Price: $28.01 |
| 46 | 127-4820-01 | PLATE-STEP Price: $19.98 |
| 47 | 3229-1 | BOLT-CARR Price: $3.39 |
| 48 | 104-7201 | NUT-HF Price: $0.69 |
| 49 | 3274-39 | SCREW-HSBH Price: $4.34 |
| 50 | 103-4080 | LATCH-RUBBER Price: $29.99 |
| 51 | 3231-33 | SCREW-CARR Price: $4.29 |
| 52 | 133-4735 | SKID-LINK Price: $16.64 |
