| Ref | Part Number | Description |
|---|
| 1 |
69-2410 |
PLUG Price: $23.90 |
| 2 |
69-2420 |
O-RING Price: $4.70 |
| 3 |
69-2450 |
PISTON Price: $125.45 |
| 4 |
69-2440 |
ORIFICE Price: $6.50 |
| 5 |
69-2430 |
SPRING Price: $32.13 |
| 6 |
69-2460 |
CAP Price: $18.22 |
| 7 |
69-2470 |
GASKET Price: $5.11 |
| 8 |
69-2480 |
SCREW Price: $15.00 |
| 9 |
69-2490 |
SPRING Price: $11.84 |
| 10 |
69-2500 |
POPPET Price: $51.44 |
| 11 |
69-2510 |
SEAT Price: $36.78 |
| 12 |
69-2530 |
O-RING Price: $3.74 |
| 13 |
69-2540 |
COVER ASM Price: $749.57 |
| 14 |
69-2340 |
PIN-DOWEL Price: $7.24 |
| 15 |
69-2280 |
IDLER SHAFT ASM Price: $326.17 |
| 16 |
69-2320 |
PLATE-WEAR Price: $21.02 |
| 17 |
69-2260 |
SEAL-LOAD Price: $45.82 |
| 18 |
69-2270 |
SEAL-LOAD, PRE Price: $37.83 |
| 19 |
69-2350 |
RING-SEALING Price: $25.85 |
| 20 |
69-2250 |
SLEEVE-BEARING Price: $27.27 |
| 21 |
69-2330 |
BODY ASM Price: $319.31 |
| 22 |
354-51 |
WASHER This part replaces 69-2370. Price: $0.47 |
| 23 |
69-2360 |
SCREW Price: $3.84 |
| 24 |
69-2380 |
SCREW Price: $6.18 |
| 25 |
69-2390 |
WASHER Price: $0.85 |
| 26 |
69-2300 |
RING-RETAINING Price: $1.32 |
| 27 |
69-2310 |
DISCONTINUED Price: Call Us |
| 28 |
69-2290 |
DISCONTINUED SEE NOTES Price: Call Us |
| 29 |
69-2400 |
DISCONTINUED Price: Call Us |
| 30 |
69-2230 |
FLOW DIVIDER ASM Price: $1,111.57 |
| 31 |
69-2520 |
PLUG-PIPE Price: $5.22 |
| 32 |
69-2240 |
SCREW Price: $4.53 |

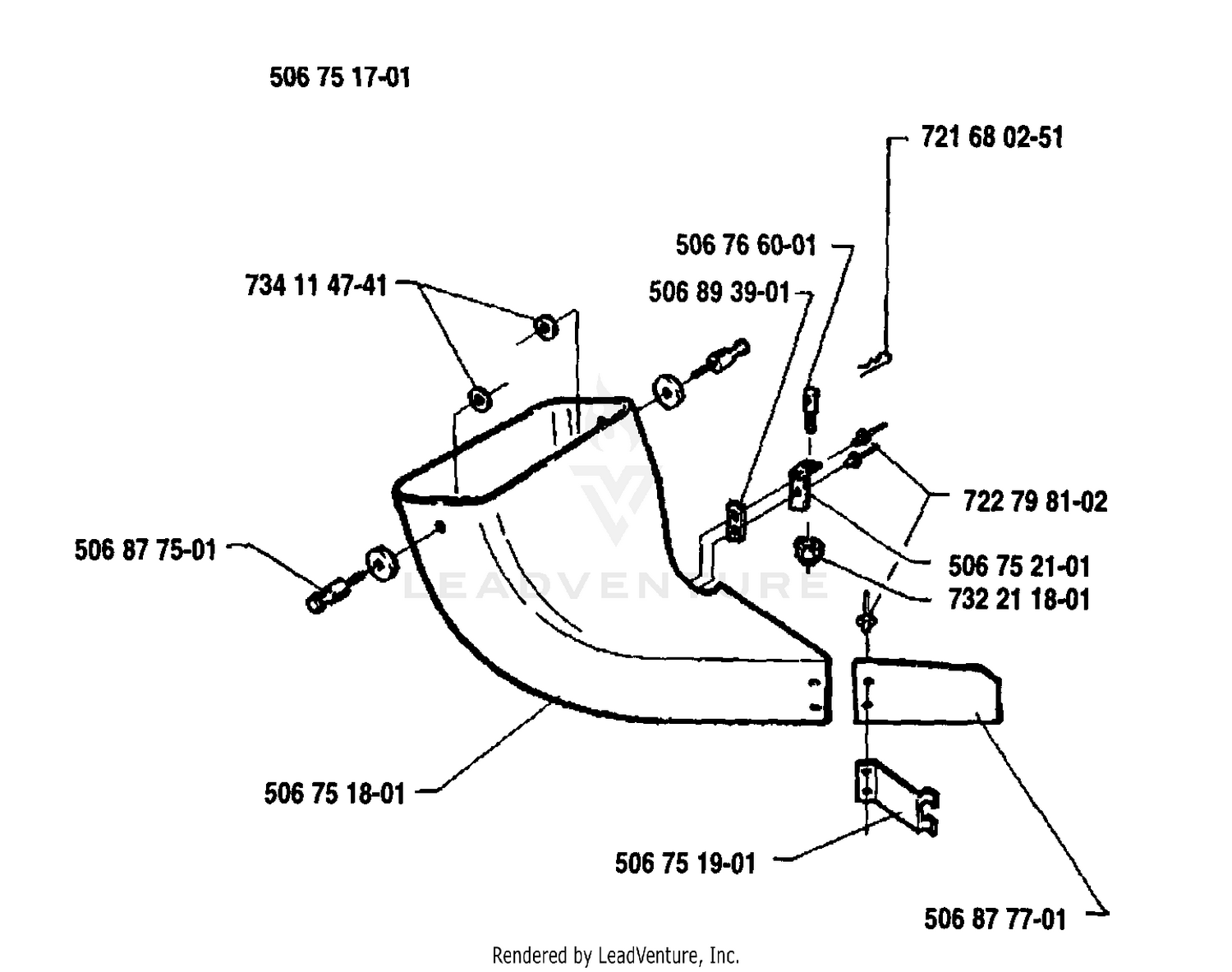

| 506751701 |
506751801 |
BEND PIPE This part replaces 506751701. Price: $122.57 |
| 506751801 |
506751801 |
BEND PIPE Price: $122.57 |
| 506751901 |
506751901 |
BRACKET Price: $129.99 |
| 506752101 |
506752101 |
BRACKET Price: $59.99 |
| 506766001 |
506766001 |
Price: $18.83 |
| 506877501 |
506877501 |
Price: $21.19 |
| 506877701 |
506877701 |
Price: $35.03 |
| 506893901 |
506893901 |
BRACKET Price: $17.99 |
| 722798102 |
722798102 |
RIVET Price: $1.99 |
| 732211801 |
732211801 |
LOCKNUT M8 Price: $3.99 |
| 734114741 |
734114741 |
WASHER Price: $4.99 |
