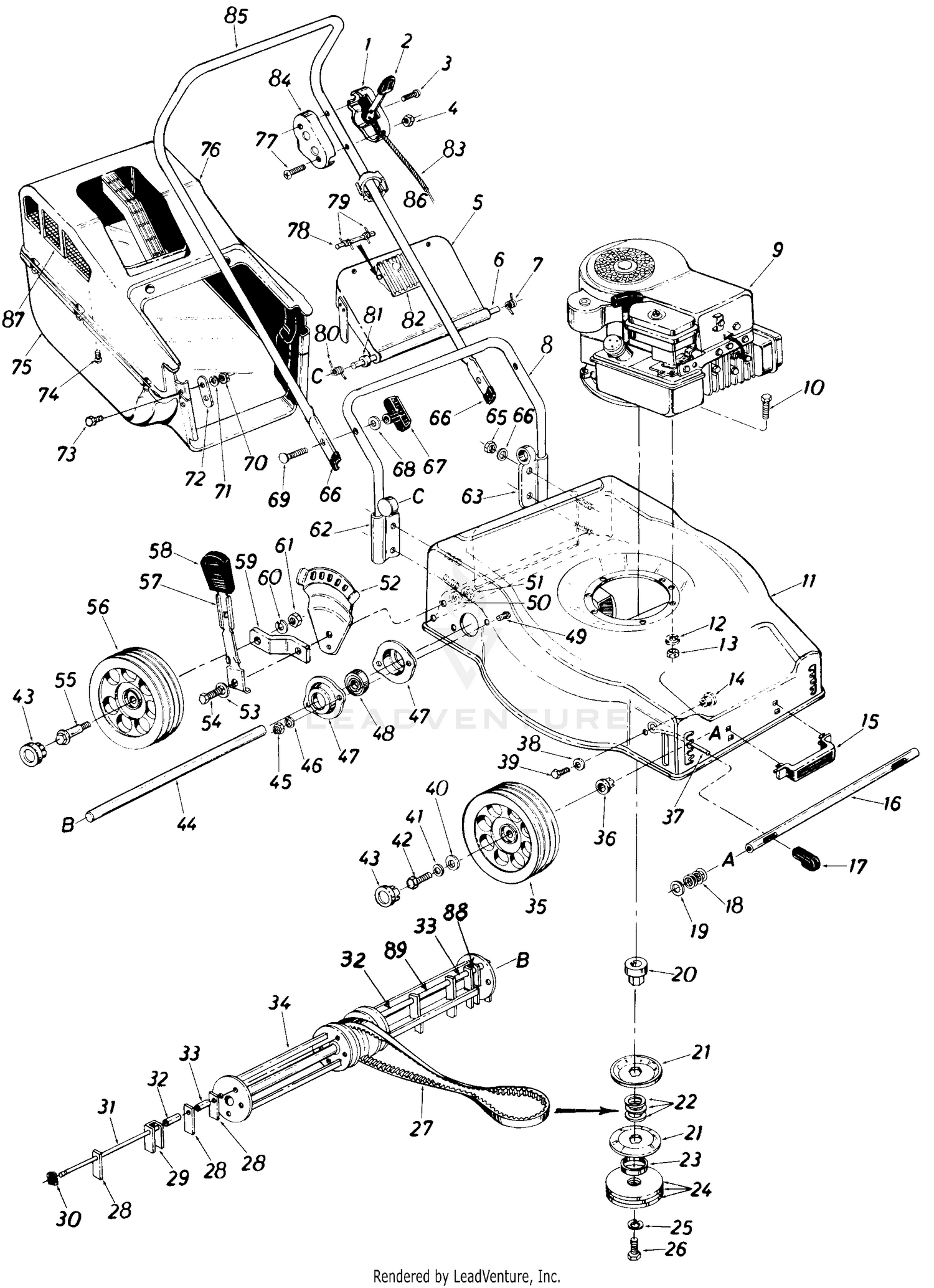

| Ref | Part Number | Description |
|---|
| 1 |
K329-932 |
Throttle Control Housing Price: Call Us |
| 2 |
K312-867 |
Throttle Control Lever Price: Call Us |
| 3 |
K701-010 |
Sheet Metal Screw M5 x 30 Price: Call Us |
| 4 |
K700-106 |
Hex Nut M5 Price: Call Us |
| 5 |
K321-889 |
Deflector-Chute Price: Call Us |
| 6 |
K325-832 |
Pivot Shaft-Chute Deflector Door Price: Call Us |
| 7 |
K325-816 |
Torsion Spring-L.H. Price: Call Us |
| 8 |
K328-400 |
Lower Handle Price: Call Us |
| 9 |
N/A |
Engine |
| 10 |
K701-171 |
Hex Bolt M8 x 30 Price: Call Us |
| 11 |
K321-979 |
Deck Price: Call Us |
| 12 |
K700-128 |
Lock Washer B8 Price: Call Us |
| 13 |
K700-108 |
Hex Nut M8 Price: Call Us |
| 14 |
K313-910 |
Spacer Price: Call Us |
| 15 |
K313-357 |
Deck Handle-Front Price: Call Us |
| 16 |
K319-661 |
Front Axle Price: Call Us |
| 17 |
K313-751 |
Knob-for Front Height Adj. Price: Call Us |
| 18 |
K313-976 |
Compression Spring Price: Call Us |
| 19 |
K314-385 |
Spring Spacer Price: Call Us |
| 20 |
K321-972 |
Pulley Hub Price: Call Us |
| 21 |
K321-966 |
Pulley "V" Belt Price: Call Us |
| 23 |
K321-968 |
Spacer Price: Call Us |
| 24 |
K321-886 |
Fly Wheel Price: Call Us |
| 25 |
N/A |
Lock Washer |
| 26 |
K321-885 |
Hex Bolt 3/B" x 45 UF Price: Call Us |
| 28 |
K321-876 |
Thatcher Blade Price: Call Us |
| 29 |
K321-898 |
Lift Blade Price: Call Us |
| 30 |
K700-897 |
Snap Ring 8M Price: Call Us |
| 31 |
K321-894 |
Thatcher Blade Shaft Price: Call Us |
| 32 |
K321-895 |
Spacer Price: Call Us |
| 33 |
K321-897 |
Spacer Price: Call Us |
| 34 |
K321-964 |
Thatcher Rotor Price: Call Us |
| 35 |
K316-831 |
Front Wheel Price: Call Us |
| 36 |
K314-385 |
Spring Spacer Price: Call Us |
| 37 |
K313-916 |
Front Height Adjustment Lever Price: Call Us |
| 38 |
K700-127 |
LockWasher B6 Price: Call Us |
| 39 |
K700-483 |
Hex Bolt M6 x 12 Price: Call Us |
| 40 |
K700-998 |
Flat Wash 015 Price: Call Us |
| 41 |
K701-223 |
Belleville Washer M12 Price: Call Us |
| 42 |
K700-826 |
Hex Bolt M12 x 16 Price: Call Us |
| 43 |
K313-367 |
Hub Cap Price: Call Us |
| 44 |
K321-894 |
Thatcher Blade Shaft Price: Call Us |
| 45 |
K700-107 |
Hex Nut M6 Price: Call Us |
| 46 |
K700-127 |
Lock Washer M6 Price: Call Us |
| 47 |
K322-953 |
Flange Bearing w/Housing Price: Call Us |
| 48 |
N/A |
Part of Ref. No. 47 |
| 49 |
K700-799 |
Mach. Screw M6 x 16 Price: Call Us |
| 50 |
K700-129 |
Lock Washer B10 Price: Call Us |
| 51 |
K700-109 |
Hex Nut M10 Price: Call Us |
| 52 |
K312-398 |
Index Plate Price: Call Us |
| 53 |
K700-735 |
Belleville Washer Price: Call Us |
| 54 |
K700-552 |
Hex Bolt M 10 x 20 Price: Call Us |
| 55 |
K300-189 |
RearWheel Axle Bolt Price: Call Us |
| 56 |
K316-831 |
Rear Wheel Price: Call Us |
| 57 |
K312-399 |
Spring Lever w/Knob Price: Call Us |
| 58 |
N/A |
Part of Ref. No. 57 |
| 59 |
K302-745 |
Pivot Bracket Price: Call Us |
| 60 |
K700-129 |
Lock Washer B10 Price: Call Us |
| 61 |
K700-208 |
Hex Nut M10 Price: Call Us |
| 62 |
K325-731 |
Handle Bracket-R.H. Price: Call Us |
| 63 |
K325-732 |
Handle Bracket-L.H. Price: Call Us |
| 64 |
K700-138 |
Flat Washer 8.4 Price: Call Us |
| 65 |
K700-121 |
Hex Nut M8 Price: Call Us |
| 66 |
K305-786 |
Handle Cap Price: Call Us |
| 67 |
K316-668 |
Wing Nut M6 Price: Call Us |
| 68 |
K700-148 |
Lock Washer 6.4 Price: Call Us |
| 69 |
K312-257 |
Mach. Screw M6 x 50 Price: Call Us |
| 70 |
N/A |
Hex Nut |
| 71 |
N/A |
Lock Washer |
| 72 |
N/A |
Reinforcement Plate |
| 73 |
K701-661 |
Mach. Screw B3.92 x 32 Price: Call Us |
| 74 |
K701-496 |
Mach. Screw Self Tap B3.9 x 9.5 Price: Call Us |
| 75 |
K321-881 |
Grass Bag-Lower Half Price: Call Us |
| 76 |
K330-629 |
Grass Bag-Upper Half Price: Call Us |
| 77 |
K700-398 |
Screw B2.9 x 9.5 Price: Call Us |
| 78 |
K325-829 |
Pivot Pin Price: Call Us |
| 79 |
K325-828 |
Torsion Spring for DoorSnap Price: Call Us |
| 80 |
K325-817 |
Torsion Spring-R.H. Price: Call Us |
| 81 |
K325-813 |
Spring Spacer Price: Call Us |
| 82 |
K325-812 |
Door Snap Price: Call Us |
| 83 |
K333-802 |
Throttle Control Wire Price: Call Us |
| 84 |
K323-314 |
Throttle Control Housing Price: Call Us |
| 85 |
K328-247 |
Upper Housing Price: Call Us |
| 86 |
K313-342 |
Cable Tie Price: Call Us |
| 87 |
K325-725 |
Screen Price: Call Us |
| 88 |
K321-896 |
Spacer 1/2" Lg. Price: Call Us |
