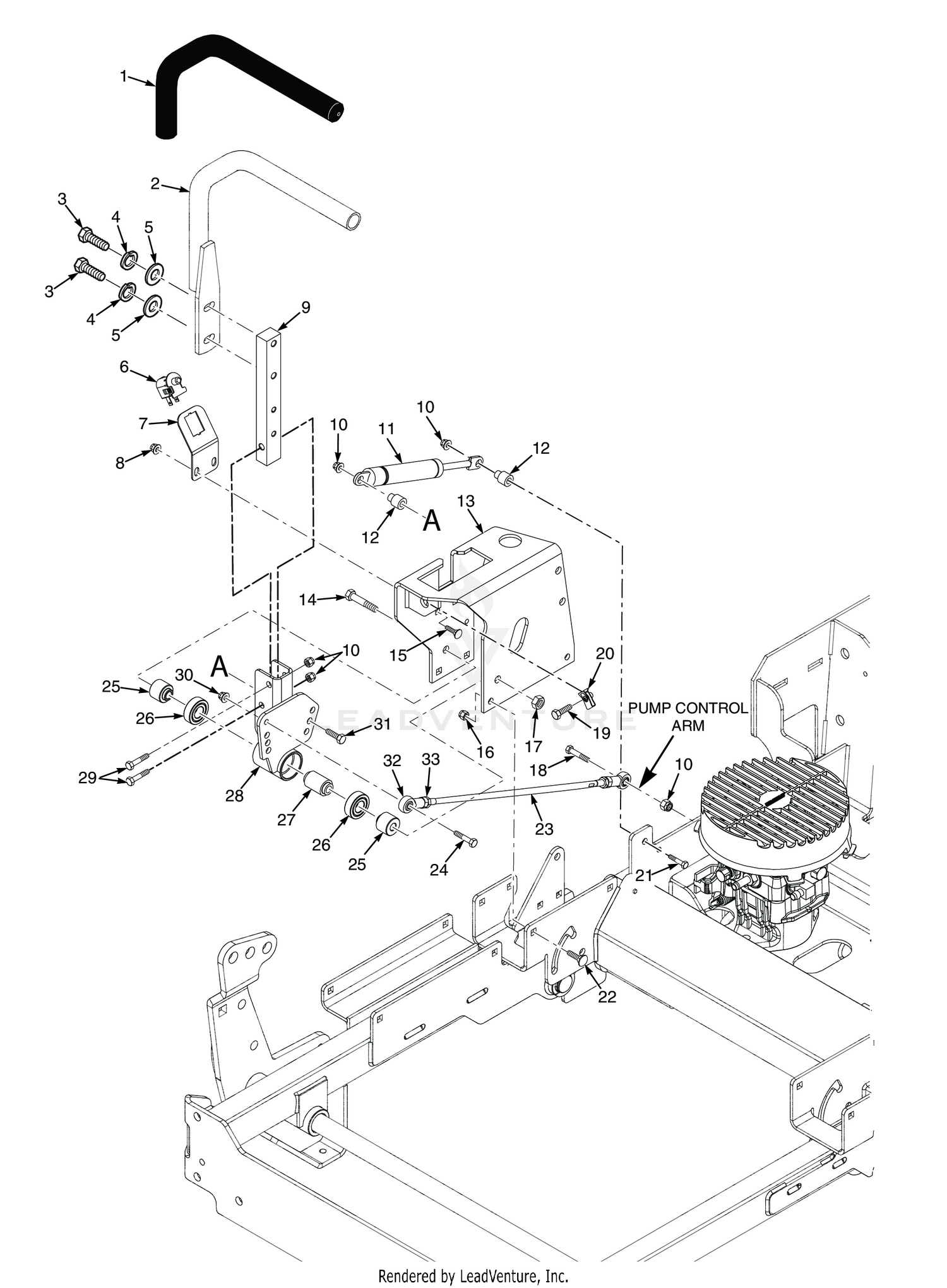

| Ref | Part Number | Description |
|---|
| 1 |
484376 |
Grip, Control Handle Price: Call Us |
| 2 |
462401 |
Handle Bar w/Grip Price: Call Us |
| 3 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 4 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 5 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 6 |
481638 |
Switch, Interlock, Normally Open Price: Call Us |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
425905 |
Bracket, Operator Presence Switch Price: Call Us |
| 8 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 9 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 9 |
422372 |
Bar, Control Lever Price: Call Us |
| 10 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 10 |
3-2964-01 |
COVER-DRIVE, REEL This part replaces 3-2964. Price: $280.42 |
| 11 |
3-2052 |
Gasket Price: Call Us |
| 11 |
484151 |
Gas Damper Price: Call Us |
| 12 |
237-69 |
O-RING Price: $5.72 |
| 12 |
43602 |
Spacer, Pump Dampener Price: Call Us |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 13 |
463325 |
Control Plate w/decal, LH Price: Call Us |
| 14 |
04001-152 |
Bolt, Hex Head 3/8-16 x 4-1/4" Price: Call Us |
| 14 |
3274-26 |
SCREW-HSH Price: $1.70 |
| 15 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 15 |
329-3 |
SCREW-HH Price: $0.22 |
| 16 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 16 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 17 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 17 |
3-3433 |
DISCONTINUED Price: Call Us |
| 18 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 18 |
3-0554 |
SHOE-IDLER, CHAIN Price: $40.43 |
| 19 |
04107-03 |
Bolt, Hex Head 3/8-16 x 1-1/4" with Thread Lock Patch Price: Call Us |
| 19 |
3-5792 |
WASHER Price: $5.59 |
| 20 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 20 |
3-0463 |
IDLER ARM-CHAIN Price: $19.22 |
| 21 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 21 |
3-3434 |
CHAIN-ROLLER, REEL DRIVE Price: $56.45 |
| 22 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 22 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 23 |
5-1393 |
SHAFT-REEL Price: $156.39 |
| 24 |
04001-04 |
Bolt, Hex Head, 1/4-20 x 1-1/2" Price: Call Us |
| 25 |
43607 |
Spacer, Controls Price: Call Us |
| 26 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 27 |
43600 |
Spacer, Bearing Price: Call Us |
| 28 |
453204 |
Pivot Weldment, Control Arm RH Price: Call Us |
| 29 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 30 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 31 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 32 |
485584 |
Rod End, 5/16-24 RH Price: Call Us |
| 453203 |
Pivot |
Weldment, Control Arm LH Price: Call Us 453203 |
| 463326 |
Control |
Plate w/decal, RH Price: Call Us 463326 |
| 484073 |
Rod |
End, 5/16-24 LH Price: Call Us 484073 |
