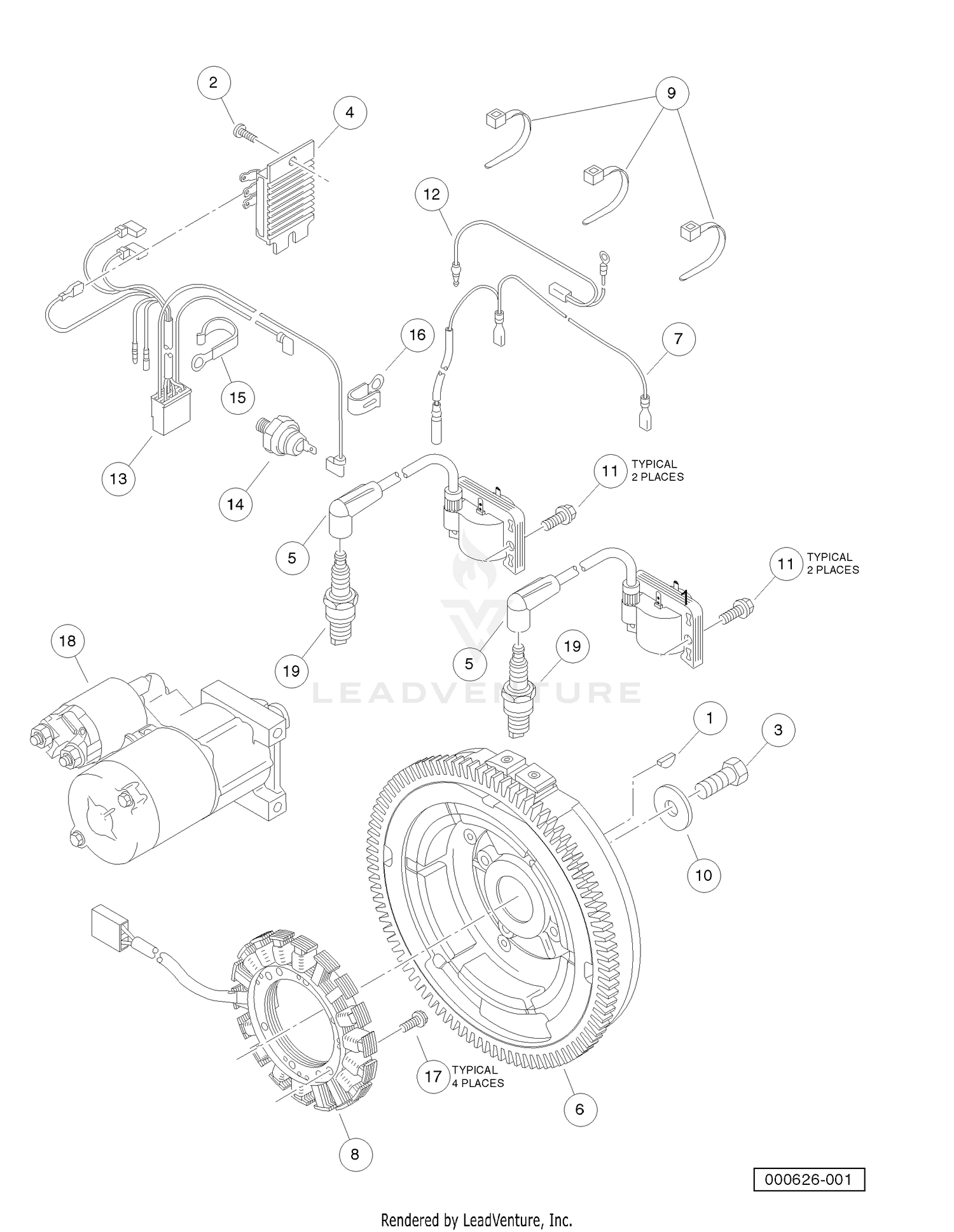

| Ref | Part Number | Description |
|---|
| 1 |
603003964 |
KEY Price: $5.99 |
| 2 |
32151-100 |
RING-RETAINING Price: $4.41 |
| 2 |
603000339 |
SCREW Price: $1.99 |
| 3 |
603003914 |
BOLT, FLG, M12 X 1.25 X 30 Price: $5.99 |
| 3 |
69-8910 |
WASHER Price: $1.70 |
| 4 |
603003867 |
REGULATOR, VOLTAGE, FH Price: $89.99 |
| 4 |
82-7850 |
SPRING-COMPRESSION Price: $12.29 |
| 5 |
354-104 |
RING-BACK UP Price: $2.24 |
| 5 |
603003866 |
COIL, ASSY, IGNITION, FH Price: $129.99 |
| 6 |
237-175 |
O-RING Price: $4.39 |
| 6 |
603003865 |
FLYWHEEL, ASSY, FH Price: $449.99 |
| 7 |
603003864 |
HARNESS, REGULATOR, FH Price: $17.99 |
| 7 |
82-7840 |
PISTON-BRAKE Price: $220.21 |
| 8 |
21-2070-03 |
END-YOKE This part replaces 21-2070. Price: $40.78 |
| 8 |
603003863 |
COIL, CHARGING, FH Price: $139.99 |
| 9 |
237-174 |
O-RING Price: $4.01 |
| 9 |
603003862 |
BAND, HARNESS, FH Price: $2.99 |
| 10 |
354-105 |
RING-BACK UP Price: $3.12 |
| 10 |
603003861 |
WASHER, FLYWHEEL, FH Price: $4.99 |
| 11 |
603003820 |
BOLT, FLANGED, M6 X 20, KAW Price: $3.99 |
| 11 |
82-7830 |
SCREW-BLEEDER, BRAKE Price: $21.68 |
| 12 |
105-0606 |
HOUSING-RH This part replaces 92-8003. Price: $555.70 |
| 12 |
603003815 |
HARNESS, IGNITION, FH Price: $27.99 |
| 13 |
603003814 |
HARNESS, ENGINE, MAIN, FH Price: $74.99 |
| 13 |
82-7820 |
SEAT-TUBE, BRAKE Price: $6.91 |
| 14 |
603003813 |
SWITCH, OIL PRESSURE, FH Price: $49.99 |
| 14 |
71-3870 |
GASKET Price: $12.51 |
| 15 |
603003812 |
CLAMP, HARNESS, LARGE, FH Price: $14.99 |
| 15 |
71-3850-03 |
COVER-ACTUATOR, BRAKE This part replaces 71-3850. Price: $13.99 |
| 16 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 16 |
603003811 |
CLAMP, HARNESS, SMALL, FH Price: $14.99 |
| 17 |
321-2 |
SCREW-HH Price: $2.79 |
| 17 |
603003810 |
SCREW, PAN, COIL MOUNT, FH Price: $1.99 |
| 18 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 18 |
603003771 |
STARTER, ELECTRIC, FH680D Price: $899.99 |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 20 |
32128-25 |
NUT-HF Price: $3.19 |
| 21 |
71-3830-03 |
BELLCRANK-BRAKE This part replaces 71-3830. Price: $82.63 |
| 22 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 23 |
71-3880 |
CLEVIS Price: $61.78 |
| 24 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 25 |
71-3900 |
GASKET Price: $17.82 |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 28 |
71-3860 |
CLEVIS Price: $16.88 |
| 29 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 30 |
69-0030 |
SPRING-COMPRESSION Price: $21.80 |
| 31 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 32 |
12-8900 |
BOLT-SHOULDER, HH Price: $22.27 |
| 33 |
93-7417 |
GASKET Price: $5.86 |
| 34 |
71-3910 |
COLLAR Price: $35.77 |
| 35 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 36 |
93-7418 |
CAP-ACTUATOR, BRAKE Price: $28.84 |
