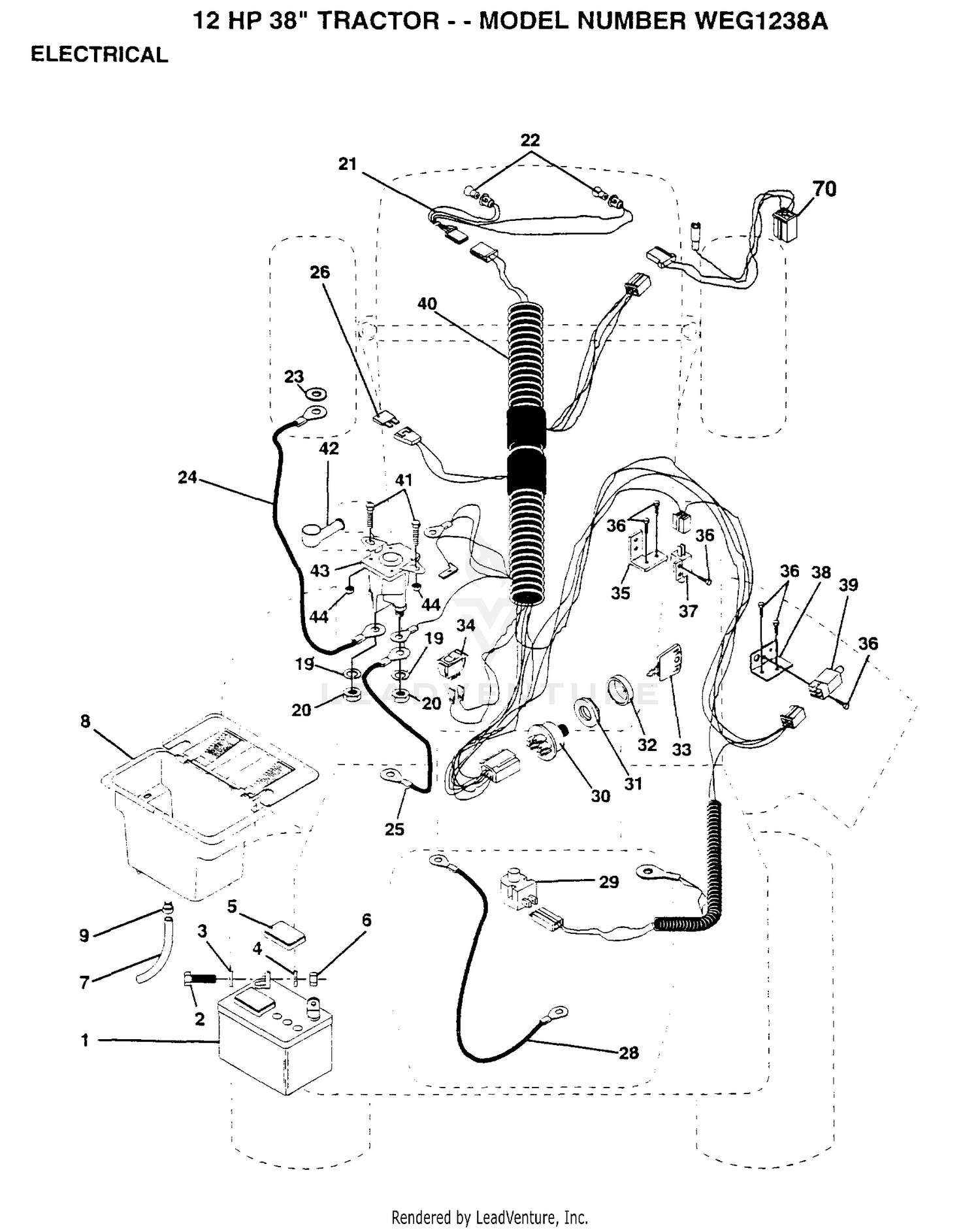

ELECTRICAL

ELECTRICAL

Parts (49)

RefPart NumberDescription
1 121265X SUB= 123899X Price: Call Us
2 74760412 BOLT LT Price: Call Us
3 19091016 WASHER Price: Call Us
4 10040400 LOCKWASHER Price: Call Us
6 73220400 SUB= 50675 Price: Call Us
7 109238X TUBE T Price: Call Us
8 129965 SUB= 156417 Price: Call Us
9 109596X HOSE CLAMP T Price: Call Us
10 105-3735 CONTROL PLATE ASM Price: $167.82
19 10090400 SUB= 10040400 Price: Call Us
20 73350400 NUT Price: Call Us
20 98-9662 LEVER-CONTROL, SPEED Price: $72.44
22 4152J HEADLAMP BULB Price: Call Us
23 11150400 LOCKWASHER Price: Call Us
25 132202 SUB= 146147 Price: Call Us
26 108824X FUSE HYT Price: Call Us
28 4207J CABLE T Price: Call Us
29 121305X SWITCH SEAT Price: Call Us
30 140399 SUB= 163088 Price: Call Us
30 98-9572 LEVER-CONTROL, SPEED Price: $47.15
31 140400 SUB= 145774 Price: Call Us
32 141226 COVER KEY SWITCH Price: Call Us
33 140401 KEY MLD GEN DELTA Price: Call Us
34 110712X SWITCH LT Price: Call Us
35 108236X BRACKET LT Price: Call Us
36 17021008 SCREW Price: Call Us
37 104445X SWITCH-INTER. GT Price: Call Us
38 140336 BRACKET SWITCH IN Price: Call Us
39 109553X SWITCH INTERLOCKT Price: Call Us
40 105-3788 O-RING Price: $2.90
40 140414 HARNESS IGN DASH Price: Call Us
41 71110408 BOLT HXHD FIN Price: Call Us
42 131563 SUB= 154336 Price: Call Us
43 138406 SUB= 146154 Price: Call Us
44 73640400 NUT HXKEP 1/4X20 Price: Call Us
50 98-7602 PIN-SPRING Price: $0.64
60 98-9594 WASHER-PLAIN Price: $2.49
70 98-9589 NUT Price: $1.46
80 98-9658 GOVERNOR LEVER ASM Price: $34.84
90 98-9663 LEVER-STOP, ENGINE Price: $13.34
100 98-7601 SEAL-OIL Price: $7.88
110 98-9472 SPRING-RETURN Price: $8.91
120 98-9664 SHAFT-LEVER, STOP Price: $33.92
130 98-9637 GASKET Price: $3.98
140 98-7692 BOLT Price: $0.92
150 99-8348 BOLT Price: $0.24
160 98-7654 GASKET Price: $8.84
170 105-3710 STUD Price: $1.16
180 98-7572 NUT Price: $0.32
