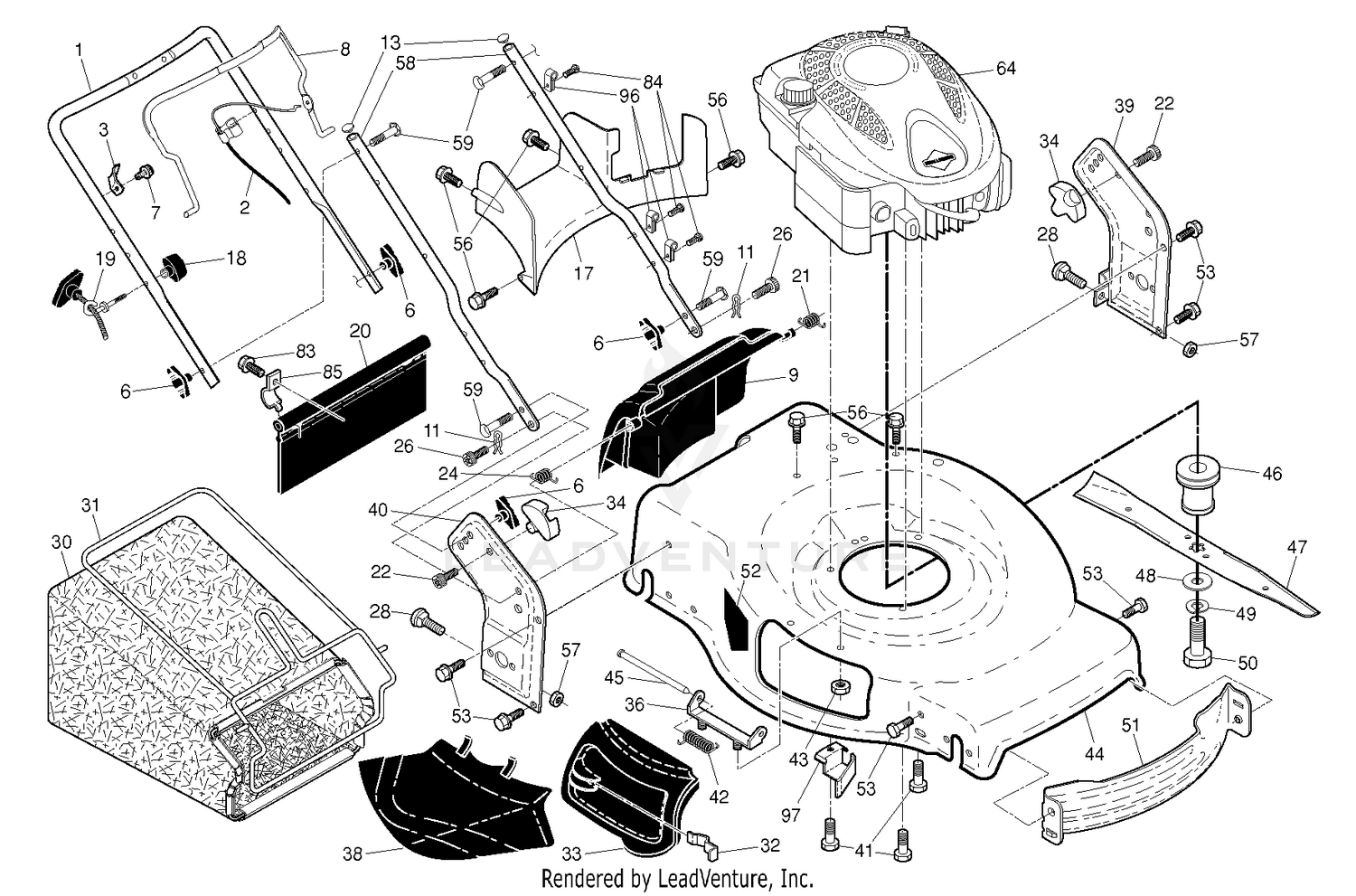

| Ref | Part Number | Description |
|---|
| 1 |
112-1705 |
ROLLER-WIEHLE, PLASTIC Price: $276.69 |
| 1 |
532427904 |
HANDLE.UP.DSTR.EZ.FG/RGD.CREAS Price: $22.99 |
| 2 |
112-1707 |
SHAFT-ROLLER, WIEHLE Price: $73.35 |
| 2 |
532424983 |
CABLE.MZR.ZONE.CONTROL Price: $11.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
532430034 |
BRACKET.UPSTOP.RT Price: $2.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 6 |
114-5411 |
NUT-LOCK, BEARING This part replaces 114-3745. Price: $24.46 |
| 6 |
532191938 |
KNOB, DEFLECTOR Price: $2.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
532178848 |
SCREW Price: $3.99 |
| 8 |
583880901 |
BAIL.MZR.EZ2.DSTRT.22+.421 Price: $5.99 |
| 9 |
585847601 |
DOOR.REAR.22+GEN.RG.EBA.BLK Price: $14.99 |
| 11 |
532425575 |
COTTER.HAIRPIN.DOOR/HANDLE.PIV Price: $2.99 |
| 13 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $2.99 |
| 17 |
581782101 |
BAFFLE.REAR.22+RGD.AWD.PLASTIC Price: $29.99 |
| 18 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $1.99 |
| 19 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $1.99 |
| 20 |
532444501 |
SKIRT.REAR.22PLUS.RGD.LW.2012 Price: $7.99 |
| 21 |
532419949 |
SPRING.LH.GRAY Price: $2.99 |
| 22 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 24 |
532419948 |
SPRING.RH.GRAY Price: $2.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $2.99 |
| 28 |
586212501 |
BOLT.CARRIAGE.LN.5/16-18X.5/8 Price: $1.99 |
| 30 |
580947309 |
GBAG.A1640416S.BLK.PPRO.MRG. Price: $49.99 |
| 31 |
585054702 |
FRAME.GBAG.22+.BLK Price: $12.99 |
| 32 |
532441192 |
LATCH.DOOR.ZINC Price: $2.99 |
| 33 |
532432642 |
DOOR.MULCH.22.BLACK.MULTI-BRAN Price: $7.99 |
| 34 |
532438134 |
BRACKET.GRASSBAG.ATTACHING.BLK Price: $2.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $3.99 |
| 38 |
532426129 |
DEFLECTOR.CLIPPING.22.BLACK Price: $7.99 |
| 39 |
585900702 |
BRACKET.ASM.HANDLE.LT.22+.BLAC Price: $17.99 |
| 40 |
585900802 |
BRACKET.ASM.HANDLE.RT.22+.BLAC Price: $17.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $3.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $3.99 |
| 43 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 44 |
583475101 |
HOUSING.22+.RGD.MC.WO.BLACK.TR This part replaces 532431946. Price: $169.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $3.99 |
| 46 |
581851501 |
ADAPTER.BLADE.25MM.3MPH Price: $9.99 |
| 47 |
532421825 |
BLADE.22+.PREMIUM/PREC.FGD/RGD Price: $12.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $2.99 |
| 49 |
539990118 |
SLW 3/8 STD This part replaces 532850263. Price: $1.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.99 |
| 51 |
532430599 |
BAFFLE.FRONT.22.PLUS Price: $11.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $4.99 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $3.99 |
| 57 |
532155377 |
NUT.FLANGE.5/16 Price: $3.99 |
| 58 |
532441196 |
HANDLE.LOWER.22+BT.2PC.BLK Price: $12.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $1.99 |
| 83 |
817021008 |
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) This part replaces 532750097. Price: $1.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $2.99 |
| 85 |
532434530 |
BRACKET.SKIRT.22+.BZP Price: $2.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
