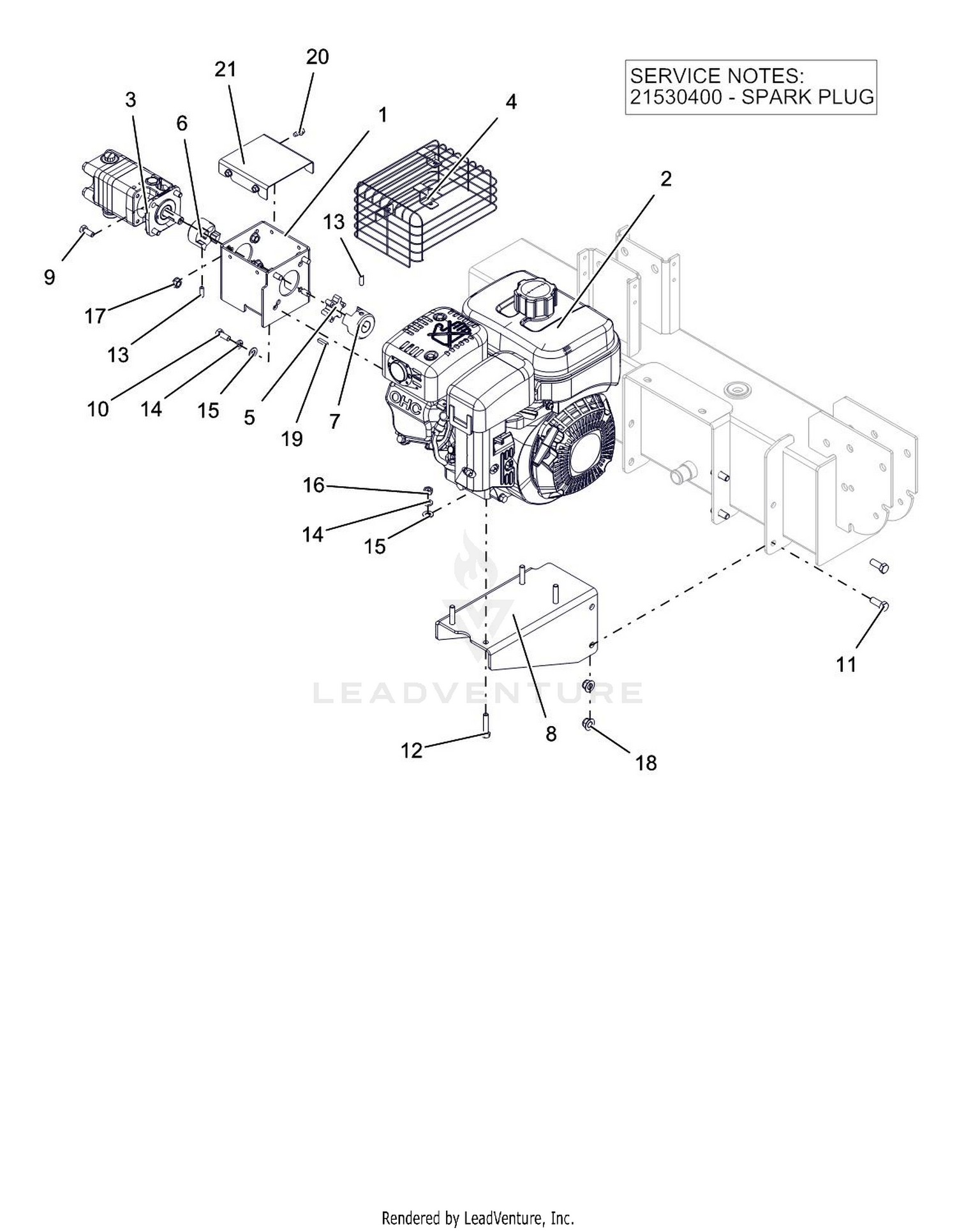

| Ref | Part Number | Description |
|---|
| 1 |
03858351 |
WLDMT, PUMP MOUNT BRKT Price: $48.95 |
| 1 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 1 |
38-9370 |
RH CASTOR ARM ASM Price: $946.82 |
| 2 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Black Price: Call Us |
| 2 |
08200429 |
ENGINE,SUBARU 6HP SP170 (CARB) Price: Call Us |
| 2 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 3 |
03926900 |
PUMP,SPLITTER-11 GPM Price: $509.95 |
| 3 |
04020-09 |
Hex Locknut, Elastic Stop, 3/8-16 Price: Call Us |
| 3 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 4 |
04042300 |
GUARD,MUFFLER,SUB 20A-37303-11 Price: $15.70 |
| 4 |
26-1890 |
DISCONTINUED Price: Call Us |
| 4 |
48926 |
Hub, Tapered 1-1/8" Bore Price: Call Us |
| 5 |
04586500 |
SPIDER - URETHANE Price: $5.45 |
| 5 |
3217-7 |
NUT-HEX Price: $0.28 |
| 5 |
424615 |
Bracket, Belt Guide Price: Call Us |
| 6 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 6 |
04586600 |
COUPLER - DRIVE 1/2" Price: $22.45 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
04586700 |
COUPLER - DRIVE, 3/4" Price: $23.95 |
| 7 |
39-3330-01 |
PLATE-CLAMP, CASTOR ARM This part replaces 39-3330. Price: $36.10 |
| 7 |
424367 |
Quick Pin, 5/16" Dia. Price: Call Us |
| 8 |
04966959 |
MOUNT-ENGINE Price: Call Us |
| 8 |
325-13 |
SCREW-HH Price: $3.57 |
| 9 |
05901704 |
BLT,HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 9 |
39-3340-01 |
BRACKET-ARM CLAMP This part replaces 39-3340. Price: $101.90 |
| 9 |
483210 |
Pulley, Idler 5" Dia. Price: Call Us |
| 10 |
05902014 |
BLT, HEX .31-24X.750 G5 ZCC This part replaces 05947300. Price: $1.45 |
| 10 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 11 |
05901711 |
BLT,HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 11 |
483215 |
Idler Pulley, Belt Clutch Price: Call Us |
| 11 |
8-0909 |
DISCONTINUED Price: Call Us |
| 12 |
05901710 |
BLT, HEX .31-18X1.50 G5 ZCC This part replaces 05952400. Price: $1.45 |
| 12 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 12 |
93-9838-03 |
SHROUD-SHAFT, DRIVE This part replaces 26-2250. Price: $56.70 |
| 13 |
06000222 |
SCR,SET .25-20X.75 PCPT SH Price: $1.95 |
| 13 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 14 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 14 |
06300123 |
WSHR, LK-HVY .312X.097 ZCC This part replaces 06307400. Price: $0.45 |
| 14 |
3-1365 |
CHAIN This part replaces 21-3160. Price: $72.97 |
| 15 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 15 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 15 |
5-2942 |
SHACKLE Price: $16.99 |
| 16 |
06500938 |
NUT, HEX .312-18 ZCC This part replaces 06529200. Price: $0.95 |
| 16 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 16 |
43681 |
Pivot, Idler - Short Price: Call Us |
| 17 |
04001-62 |
Capscrew, Hex Head 3/8-16 x 3.25" Price: Call Us |
| 17 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 17 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 18 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 18 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 18 |
484020 |
Spring, Cutter Deck Price: Call Us |
| 19 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 19 |
06606100 |
KEY-SQ .188X.75X.188 Price: $3.45 |
| 19 |
26-1900 |
DISCONTINUED Price: Call Us |
| 20 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 20 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 20 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 21 |
26-1580 |
SPACER 1/2 IN Price: $9.91 |
| 21 |
45944 |
Shaft Weldment, Guide Roller Price: Call Us |
| 22 |
483997 |
Guide Roller Price: Call Us |
| 22 |
94-1291 |
BUSHING This part replaces 28-9290. Price: $10.99 |
| 23 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 23 |
463289 |
Pusharm Assy, LH Price: Call Us |
| 24 |
38-9420 |
LH CASTOR ARM ASM Price: $993.47 |
| 24 |
48114-08 |
Grease Fitting, 90 Degree Price: Call Us |
| 25 |
04020-16 |
Nut, Hex Head 5/8-18 UNF Price: Call Us |
| 25 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 26 |
48763 |
Rod End, 5/8" Male RH Thread Price: Call Us |
| 26 |
99-5690 |
CASTOR FORK ASM This part replaces 26-1560. Price: $183.50 |
| 27 |
04001-79 |
BOLT, HEX HEAD 5/8-11 X 4-1/2" Price: Call Us |
| 27 |
21-3870 |
AXLE ASM Price: $14.07 |
| 28 |
04021-13 |
HEX LOCKNUT, ELASTIC STOP, 5/8-11 Price: Call Us |
| 28 |
46-8970 |
WASHER Price: $5.29 |
| 29 |
451724 |
Shaft Weldment, Pusharm Mounting Price: Call Us |
| 29 |
46-9030 |
BEARING RETAINER Price: $4.91 |
| 30 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 30 |
21-1030 |
SPANNER BUSHING Price: $17.87 |
| 31 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 31 |
21-3860 |
WHEEL Price: $85.23 |
| 32 |
21-3850 |
ROLLER BRG W/46-8960 Price: $15.21 |
| 32 |
485528 |
Lever, Deck Level Price: Call Us |
| 33 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 33 |
32153-7 |
NUT-LOCK Price: $0.75 |
| 34 |
04003-42 |
Bolt, Carriage 7/16-14 x 2-1/4" Price: Call Us |
| 34 |
3233-1 |
SCREW-CARR Price: $1.42 |
| 35 |
04021-11 |
HEX LOCKNUT, ELASTIC STOP, 7/16-14 Price: Call Us |
| 35 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 36 |
04107-05 |
Bolt, Hex Head 3/8-16 x 2-1/2" Soecial Lock Price: Call Us |
| 36 |
3217-9 |
NUT-HH Price: $0.37 |
| 37 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 37 |
483176 |
Pad, Deck Wear Price: Call Us |
| 38 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 38 |
3217-8 |
NUT-HEX Price: $1.34 |
| 39 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V) Price: Call Us |
| 39 |
325-22 |
SCREW-HH Price: $4.26 |
| 40 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 40 |
3-6778 |
AXLE SLINGER Price: $1.98 |
| 41 |
3-6777 |
WASHER Price: $1.98 |
| 41 |
461663 |
Cutter Spindle Assembly Price: Call Us |
| 42 |
43589 |
Spindle Shaft, Tapered Brng Price: Call Us |
| 43 |
3-6775 |
WASHER Price: $1.21 |
| 43 |
481024 |
SEAL, 2.00 O.D. X 1.50 BORE Price: Call Us |
| 44 |
481022 |
Tapered Bearing Set (Two Bearings W/Race) Price: Call Us |
| 45 |
46-6230 |
DISCONTINUED Price: Call Us |
| 45 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 46 |
3-6776 |
SPACER Price: $9.65 |
| 46 |
48677 |
RELIEF FITTING, TAPERED BEARING SPINDLE Price: Call Us |
| 47 |
32153-5 |
NUT-HEX Price: $1.59 |
| 47 |
43644 |
Housing, Spindle Price: Call Us |
| 48 |
26-1530-01 |
FORK-CASTOR This part replaces 26-1530. Price: $178.41 |
| 48 |
43312 |
Spacer, Outside, Cutter Spindle Price: Call Us |
| 49 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 49 |
43296 |
SLEEVE, CUTTER SPINDLE Price: Call Us |
| 50 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 51 |
43297 |
SPINDLE BUSHING, BOTTOM Price: Call Us |
| 52 |
481035 |
Nut , Spec ial 1 -1/ 1 6 - 1 8 Price: Call Us |
| 53 |
04063-08 |
Key, 1/4 x 1/4 x 2.0" Price: Call Us |
| 54 |
04001-176 |
Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8 Price: Call Us |
| 55 |
43590 |
Spacer, Spindle Bottom Price: Call Us |
| 57 |
04043-06 |
Flatwasher, 5/8-.688 x 1-3/4 x .134 HD Price: Call Us |
| 58 |
04001-41 |
BOLT, HEX HEAD, 5/8-11 X 9-1/2 GR.5 Price: Call Us |
| 60 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 61 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 64 |
48100-15 |
Bushing, .376" I.D. Oilite Price: Call Us |
| 65 |
422478 |
Bracket, Anti-Scalp Wheel Price: Call Us |
| 66 |
04003-26 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 67 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 68 |
04017-27 |
Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd Price: Call Us |
| 69 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 70 |
04021-22 |
Lock Nut, 5/16-18 Elastic Stop Grade 8 Price: Call Us |
| 71 |
04001-47 |
Bolt, 3/8-16 x 5.00" Hex Head Price: Call Us |
| 72 |
04001-62 |
Capscrew, Hex Head 3/8-16 x 3.25" Price: Call Us |
| 73 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25" x .1875 Price: Call Us |
| 74 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 75 |
483378 |
Spring, Discharge Chute Price: Call Us |
| 76 |
04001-154 |
Bolt, 5/16-18 x 4-3/4" Hex Head Price: Call Us |
| 78 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 82 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 463290 |
Pusharm |
Assy, RH Price: Call Us 463290 |
