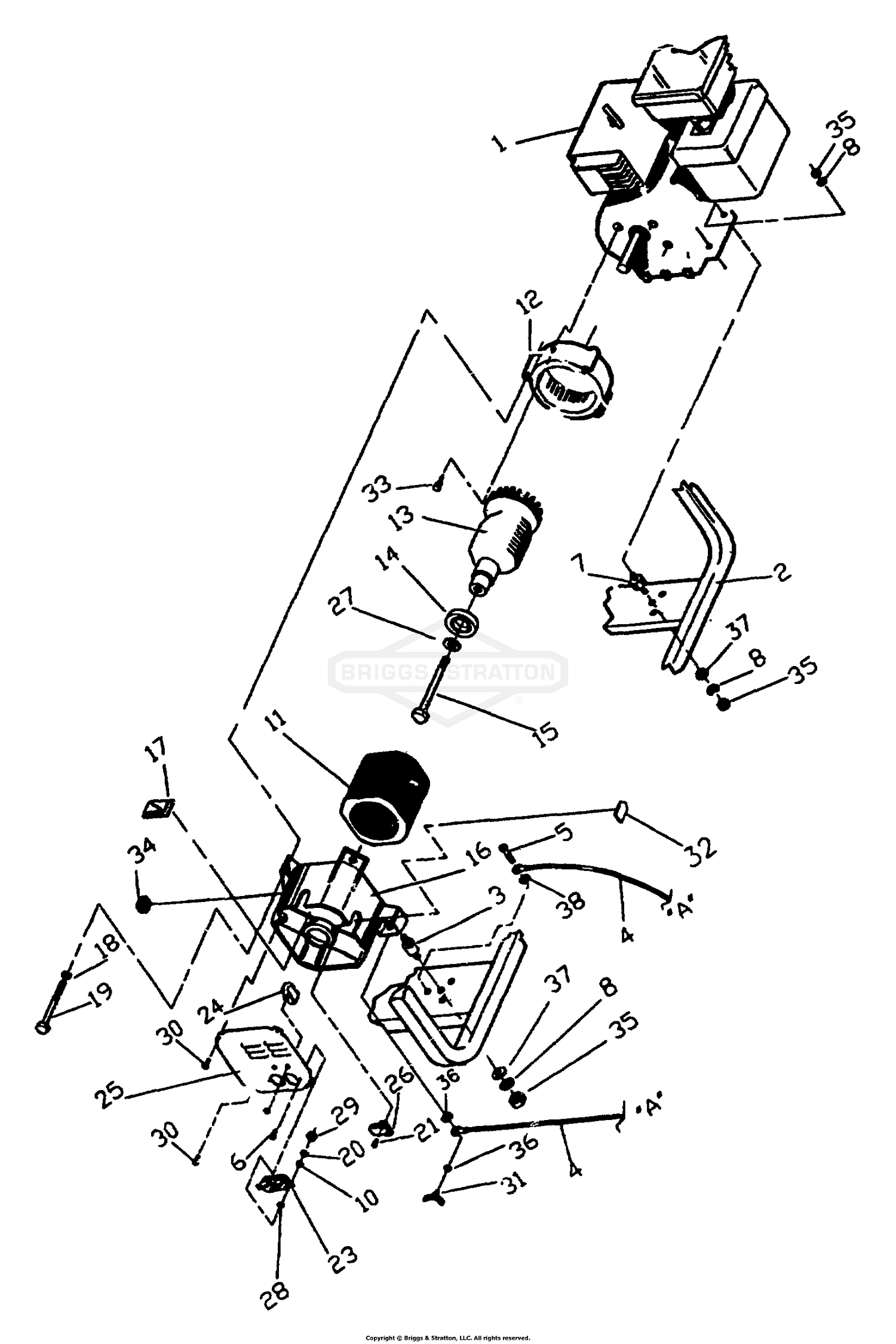

| Ref | Part Number | Description |
|---|
| 1 |
84789 |
Engine-Briggs & Stratton (5 HP with LOS) Price: Call Us |
| 2 |
91018 |
Cradle Assembly Price: Call Us |
| 3 |
194153GS |
MOUNT-VIBRATION This part replaces 85652. Price: $10.54 |
| 4 |
195373GS |
WIRE, Ground This part replaces 143-53621. Price: $1.85 |
| 5 |
313085GS |
SCREW This part replaces 86292. Price: $3.35 |
| 6 |
75475 |
M4-0.7 x 10mm Pan Head Screw Price: $24.95 |
| 7 |
85651GS |
MOUNT,Vibration This part replaces 85651. Price: $19.79 |
| 8 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 10 |
38150GS |
WASHER This part replaces 38150. Price: $2.49 |
| 11 |
77258 |
Stator Assembly Price: Call Us |
| 12 |
66365FGS |
HSNG, ENG, FML This part replaces 66365F. Price: $63.99 |
| 13 |
74713 |
Rotor Assembly Price: Call Us |
| 14 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 16 |
66825B |
Rear Bearing Carrier Price: Call Us |
| 17 |
66850GS |
ASSY, RECTIFIER, BRIDGE This part replaces 66850. Price: Call Us |
| 18 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 19 |
66449C |
M6-1.0 x 80mm Stator Bolt Price: Call Us |
| 20 |
22264 |
No. 8 Lock Washer Price: $8.99 |
| 21 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 23 |
68759GS |
OUTLET, 20A,120V This part replaces 68759. Price: $23.24 |
| 24 |
77247GS |
BRKR, CRCT, 20A, 2P This part replaces 77247. Price: $6.90 |
| 26 |
66386GS |
ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52 |
| 27 |
67451 |
Flat Washer (special) Price: Call Us |
| 28 |
5023365YP |
TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73 |
| 29 |
51715GS |
NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30 |
| 30 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 31 |
86494GS |
SCREW, M6-1.0 x 16 LG. WING This part replaces 86494. Price: $2.51 |
| 32 |
84242GS |
GROMMET, Plastic RBC This part replaces 84242. Price: $4.19 |
| 33 |
86307GS |
HHMS, 5/16-24 x 3/4 LG. SEMS This part replaces 86307. Price: $2.19 |
| 34 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 35 |
5045771B |
SKID PLATE This part replaces 45771. Price: $55.95 |
