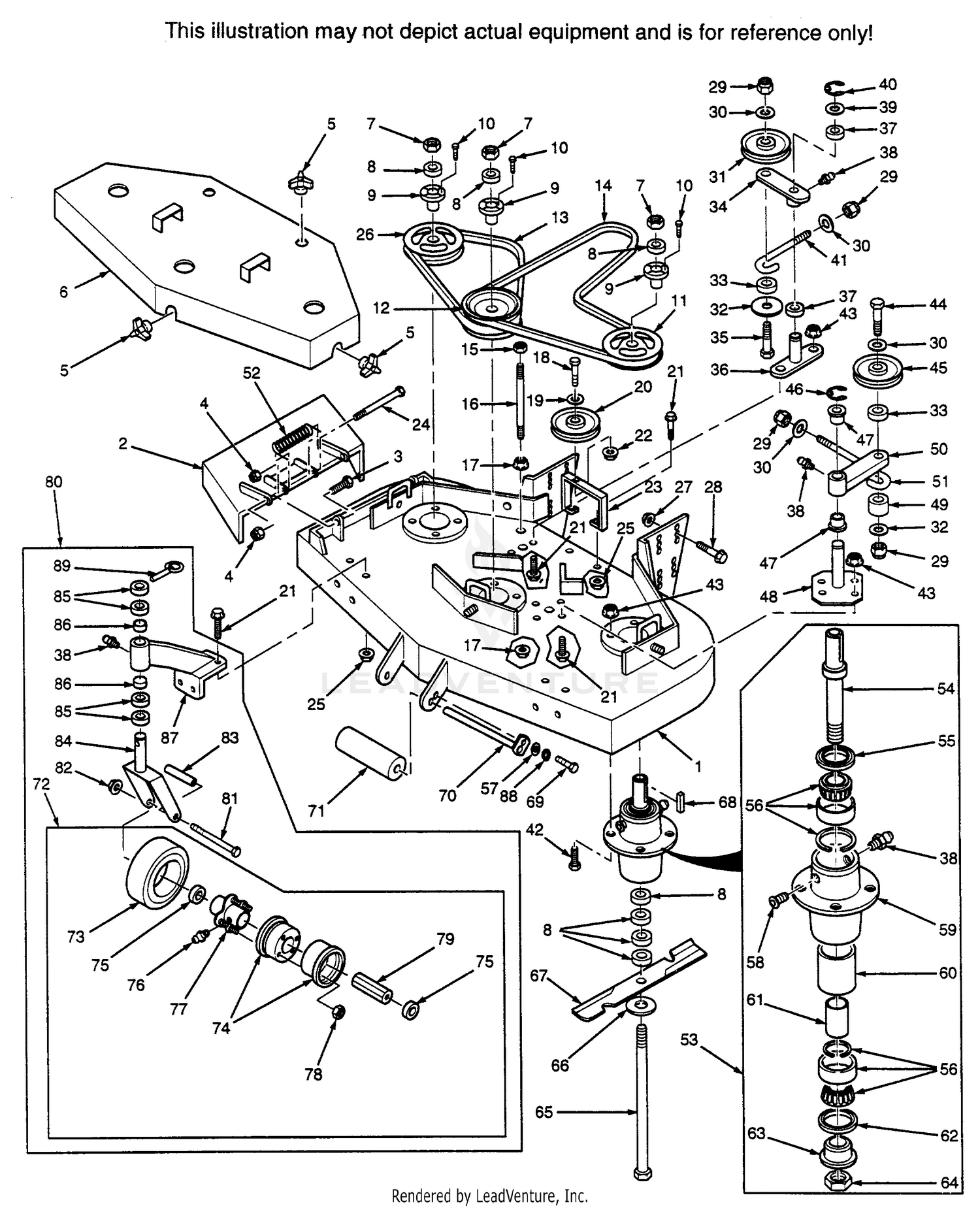

| Ref | Part Number | Description |
|---|
| 4 |
04021-10 |
NUT, 5/16-18 ELASTIC STOP Price: Call Us |
| 5 |
04029-03 |
WING NUT, 3/8-16 X 7/8 Price: Call Us |
| 7 |
04020-09 |
NUT, 5/8-11 HEX HEAD Price: Call Us |
| 8 |
43592 |
Spacer, Cutter Blade This part replaces 43278. Price: Call Us |
| 9 |
48926 |
TAPERED HUB, 1.125 BORE Price: Call Us |
| 10 |
04001-01 |
BOLT, 1/4-20 X 3/4 HEX HEAD Price: Call Us |
| 16 |
04004-14 |
STUD, 3/8-16 X 6-3/4" Price: Call Us |
| 17 |
04019-04 |
NUT, 3/8-16 SERR. FLANGE Price: Call Us |
| 24 |
04001-108 |
BOLT, 5/16-18 X 1-1/4" Price: Call Us |
| 25 |
04019-03 |
NUT, 5/16-18 SER. FLG. HEX HD. Price: Call Us |
| 26 |
482744 |
Pulley, 5.75 OD Taper Bore This part replaces 48924. Price: Call Us |
| 27 |
04019-06 |
NUT, 1/2-13 SER. FLG. HEX HD. Price: Call Us |
| 28 |
04017-37 |
CAPSCREW, 1/2-13 X 1-1/4 SER. FLG. Price: Call Us |
| 30 |
04041-07 |
FLATWASHER, 3/8(.391 X .938 X .105) Price: Call Us |
| 31 |
48181 |
PULLEY Price: Call Us |
| 32 |
04041-12 |
FLATWASHER, 3/8(.375 X 1.50 X .060) Price: Call Us |
| 33 |
43077 |
SPACER Price: Call Us |
| 34 |
46081 |
IDLER ARM(INCL. 37 & 38) Price: Call Us |
| 36 |
45037 |
IDLER PIVOT Price: Call Us |
| 37 |
48100-05 |
BEARING, BRONZE OILITE Price: Call Us |
| 38 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 39 |
04041-08 |
FLATWASHER, 1-1/4 X .059 THICK Price: Call Us |
| 39 |
04041-08S |
FLATWASHER, 1-1/4 X .035 THICK Price: Call Us |
| 41 |
43028 |
J-ROD IDLER PULLEY Price: Call Us |
| 42 |
04001-10 |
BOLT, 5/16-18 X 1-1/4" Price: Call Us |
| 43 |
04019-03 |
NUT, 5/16-18 SER. FLANGE Price: Call Us |
| 45 |
483215 |
Pulley, 5" Dia. Idler This part replaces 48269. Price: Call Us |
| 47 |
48100-02 |
BEARING, BRONZE OILITE Price: Call Us |
| 48 |
45329 |
IDLER PIVOT SUPPORT Price: Call Us |
| 49 |
43277 |
SPACER Price: Call Us |
| 50 |
46748 |
Idler Arm This part replaces 46593. Price: Call Us |
| 51 |
44078 |
J-ROD, DRIVE IDLER Price: Call Us |
| 52 |
482245 |
Spring, Discharge Chute This part replaces 481050. Price: Call Us |
| 53 |
461663 |
Spindle Assembly This part replaces 46631. Price: Call Us |
| 54 |
43589 |
Shaft, Spindle This part replaces 43298. Price: Call Us |
| 55 |
481024 |
SEAL, 2.00 O.D. X 1.50 BORE Price: Call Us |
| 56 |
481022 |
BEARING ASSEMBLY Price: Call Us |
| 57 |
04040-15 |
FLAT WASHER, 5/16 Price: Call Us |
| 58 |
48677 |
RELIEF FITTING, CUTTER SPINDLE Price: Call Us |
| 59 |
43644 |
Spindle Housing This part replaces 43294. Price: Call Us |
| 60 |
43312 |
SPACER, OUTSIDE Price: Call Us |
| 61 |
43296 |
SPACER, INSIDE Price: Call Us |
| 62 |
481025 |
SEAL, 2.00 O.D. X 1-5/8 BORE Price: Call Us |
| 63 |
43297 |
SPINDLE BUSHING BOTTOM Price: Call Us |
| 64 |
481035 |
NUT, 1-1/16-18 UNEF-2B Price: Call Us |
| 65 |
04001-41 |
BOLT, 5/8-11 X 9-1/2" Price: Call Us |
| 66 |
04040-10 |
FLATWASHER, 5/8 Price: Call Us |
| 68 |
04063-08 |
KEY, 1/4 X 1/4 X 2" Price: Call Us |
| 69 |
04001-08 |
BOLT, 5/16-18 X 3/4" HEX HEAD Price: Call Us |
| 70 |
45944 |
Shaft, Roller This part replaces 45046. Price: Call Us |
| 71 |
48038 |
GUIDE, ROLLER Price: Call Us |
| 72 |
48307 |
WHEEL ASSY., CASTER Price: Call Us |
| 73 |
481773 |
Inner Tube Only, Caster Wheel This part replaces 48006-03. Price: Call Us |
| 73 |
481774 |
Tire Only, Caster Wheel This part replaces 48307-02. Price: Call Us |
| 74 |
481772 |
Rim Pair, Caster Wheel This part replaces 48307-04. Price: Call Us |
| 75 |
481770 |
Retainer This part replaces 48006-07. Price: Call Us |
| 76 |
48114-03 |
GREASE FITTING, 45 DEG. 1/4-28 Price: Call Us |
| 77 |
481768 |
Hub Assy. W/Bolts, Caster Wheel This part replaces 48006-05. Price: Call Us |
| 78 |
481771 |
Tapered Hex Nut, 5/16-18 This part replaces 48307-08. Price: Call Us |
| 79 |
481769 |
Roller Bearing .625 x 3.25" This part replaces 48006-06. Price: Call Us |
| 80 |
46079 |
CASTER WHEEL ASSEMBLY Price: Call Us |
| 83 |
43022 |
SLEEVE, CASTER WHEEL BEARING Price: Call Us |
| 84 |
45006 |
CASTER YOKE Price: Call Us |
| 85 |
43037-01 |
SPACER, CASTER YOKE 1/2" Price: Call Us |
| 86 |
48100-05 |
BUSHING, 5/8 X 1" FLANGED Price: Call Us |
| 87 |
46082 |
SUPPORT ASSEMBLY(INCL. 88-90) Price: Call Us |
| 88 |
04030-03 |
LOCK WASHER, 5/16 Price: Call Us |
| 89 |
04066-01 |
QUICK PIN Price: Call Us |
