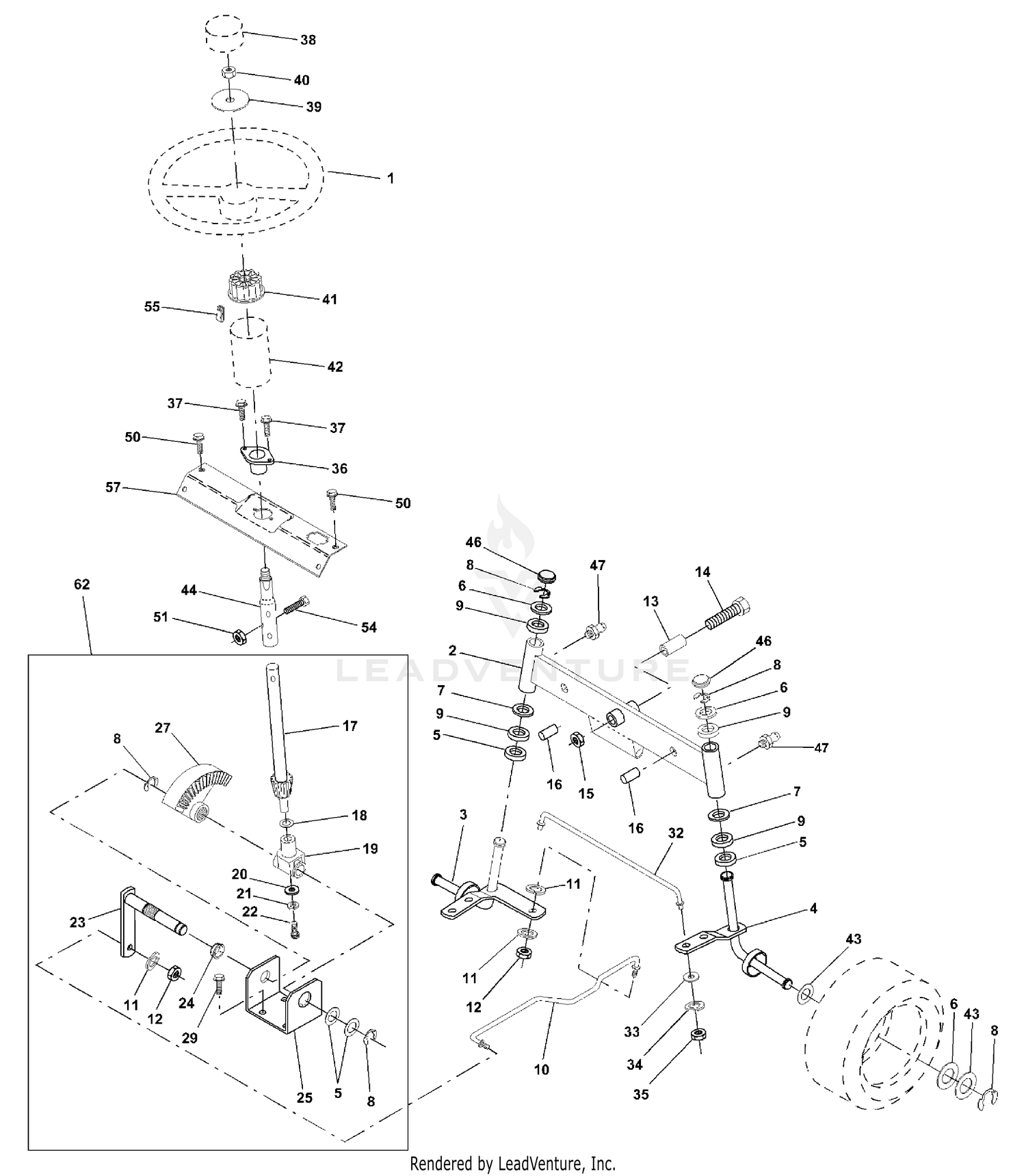

| Ref | Part Number | Description |
|---|
| 1 |
136-8446 |
KIT, CENTER PULL FRAME This part replaces 86-9820. Price: $340.89 |
| 1 |
532124415 |
STEERING WHEEL Price: $58.99 |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |
532142033 |
AXLE ASSY Price: $59.99 |
| 3 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 3 |
532135227 |
SPINDLE LH Price: $15.39 |
| 4 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 4 |
532135228 |
SPINDLE RH Price: $12.97 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 6 |
99-1461 |
SLEEVE-JOINT, BALL Price: $15.37 |
| 7 |
819272016 |
WASHER Price: $3.99 |
| 8 |
62-2420-01 |
BAR ASM-LIFT, CTR ARM This part replaces 62-2420. Price: $70.22 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 9 |
63-8750 |
PIN-PIVOT Price: $4.20 |
| 10 |
105-3823 |
HYD CYLINDER ASM This part replaces 99-8160. Price: $493.03 |
| 10 |
532130468 |
LINK.DRAG.SOL.BALL JT.20.064 Price: $64.99 |
| 11 |
237-21 |
O-RING Price: $0.70 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 12 |
873610600 |
NUT Price: $2.99 |
| 13 |
532155134 |
KIT-AXLE This part replaces 532110438. Price: $13.26 |
| 13 |
83-1680 |
HOSE-HYD Price: $39.99 |
| 14 |
237-78 |
O-RING Price: $3.85 |
| 14 |
874011056 |
Bolt Hex 5/8-11 Unc X 3-1/2 Price: $4.99 |
| 15 |
583612401 |
LOCKNUT M This part replaces 873901000. Price: $2.99 |
| 15 |
88-9700 |
HOSE-HYD Price: $64.30 |
| 16 |
532132624 |
AXLE PIN Price: $2.42 |
| 17 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 17 |
531166901 |
SERVICE KIT SHAFT ASM ST This part replaces 532140176. Price: $42.99 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 18 |
57-7650 |
SPRING-TORSION Price: $11.81 |
| 19 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $8.99 |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 20 |
596582301 |
Washers This part replaces 532126684. Price: $2.99 |
| 21 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 21 |
68-5380 |
CENTER LIFT ARM ASM Price: $205.86 |
| 22 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 22 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871070410. Price: $3.99 |
| 23 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 23 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532127501. Price: $29.99 |
| 24 |
5-1226 |
WASHER Price: $3.90 |
| 24 |
532109816 |
NYLINER T (7283A) Price: $4.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
531152201 |
SERVICE KIT BRACKET BRKT This part replaces 532124036. Price: $12.99 |
| 26 |
131-4307 |
PIN This part replaces 68-5560. Price: $15.61 |
| 27 |
115-3260 |
KIT-SERVICE, PIN This part replaces 27-2550. Price: $33.44 |
| 27 |
532136874 |
GEAR.SECTOR Price: $69.99 |
| 28 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 29 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 29 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 30 |
322-1 |
SCREW-HH Price: $0.22 |
| 31 |
93-2384 |
SPACER-CARRIER Price: $9.09 |
| 32 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 32 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN This part replaces 532130467. Price: $79.99 |
| 33 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 35 |
873610500 |
This part replaces 873810500. Price: $2.15 |
| 36 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 36 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $6.99 |
| 37 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 37 |
817211008 |
Screw Slftp #10-16 x 1/2 Ty-Ab This part replaces 817431008. Price: $3.99 |
| 38 |
3-1506 |
BUSHING Price: $2.42 |
| 38 |
532124416 |
INSERT,STR WHEEL Price: $7.89 |
| 39 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 39 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $4.99 |
| 40 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 40 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 41 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 41 |
532104820 |
ADAPTER-WHEEL LT Price: $13.99 |
| 42 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 42 |
532150390 |
BOOT, STEERING SHAFT Price: $3.18 |
| 43 |
133-2337 |
ROLLER ASM This part replaces 52-2720. Price: $176.14 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 44 |
532154307 |
KIT.EXTENSION.STEERING.PLM/LR This part replaces 532146690. Price: $34.99 |
| 45 |
133-2378 |
BEARING This part replaces 251-141. Price: $23.28 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 50 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 51 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 54 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 55 |
532140285 |
CLIP Price: $2.99 |
| 57 |
532140172 |
SUPPORT STEERING SHAFT Price: $2.42 |
