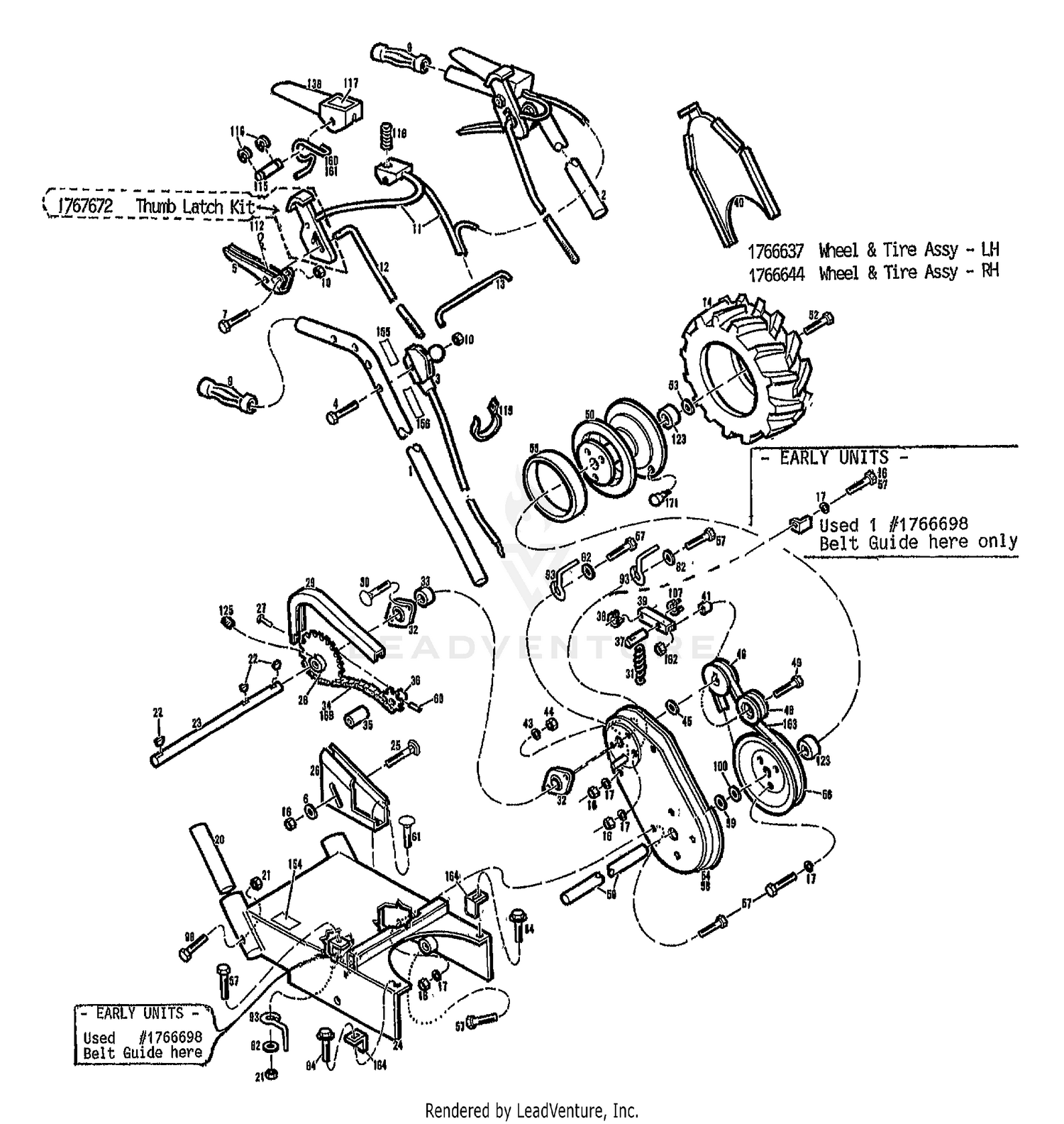

| Ref | Part Number | Description |
|---|
| 1 |
1767159 |
HANDLEBAR-RH Not Available Price: |
| 2 |
1765981001 |
HANDLEBAR L/H PNT Not Available Price: |
| 4 |
1111601 |
SCREW-HH Not Available Price: |
| 5 |
1766603 |
LEVER-WHEE Not Available Price: |
| 6 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 7 |
710-0606 |
Hex Bolt 1/4-20 x 1.50 This part replaces 1100811. Price: $4.67 |
| 9 |
720-0274 |
Handle Grip This part replaces 1703539. Price: $9.99 |
| 10 |
1110106 |
NUT-HK 1/4-20 Not Available Price: |
| 11 |
1765924 |
INTERLOCK Not Available Price: |
| 12 |
1766607 |
ROD-WHEEL CLUTCH Not Available Price: |
| 14 |
734-04163A |
Tire This part replaces 1766639. Price: $100.33 |
| 20 |
1766611 |
TUBE-RUBBE Not Available Price: |
| 21 |
1732499 |
NUT-TOP/LK 5/16-18 Price: $3.49 |
| 22 |
914-0868 |
KEY-WOODRUFF .188X.75 This part replaces 1104436. Price: $3.50 |
| 23 |
1766612 |
SHAFT-COUNTER Price: Call Us |
| 24 |
1766990010 |
ASSM-ENGINE DECK PNT Price: Call Us |
| 25 |
1186102 |
SCR-CARR 5 Not Available Price: |
| 26 |
1766890010 |
BRACKET-CHAIN Not Available Price: |
| 27 |
1186009 |
SCREW-HW M10-24X.5 S Not Available Price: |
| 28 |
1766621 |
SPROCKET-CHAIN 36T Price: Call Us |
| 29 |
1766622010 |
COVER-CHAI Not Available Price: |
| 30 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 1766623. Price: $4.26 |
| 31 |
1766624 |
SPRING WHE Not Available Price: |
| 32 |
1766625 |
BEARING-RETAIN Price: Call Us |
| 33 |
1766626 |
INSERT-BEARING Not Available Price: |
| 34 |
1766627 |
CHAIN Not Available Price: |
| 35 |
1766628 |
ROLLER-CHA Not Available Price: |
| 36 |
1766629 |
SPROCKET-CHAIN 12T Not Available Price: |
| 37 |
1766630 |
PIVOT-IDLE Not Available Price: |
| 38 |
916-0125 |
E-RING 0375 DIA SHAFT Not Available This part replaces 1185257. Price: |
| 39 |
1766631 |
IDLER ARM Not Available Price: |
| 41 |
1766714 |
SPACER-WHE Not Available Price: |
| 43 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 44 |
1186229 |
NUT-HEX 1/4-20 Price: $4.05 |
| 45 |
1766635 |
SPACER .62 Not Available Price: |
| 46 |
1766636 |
SHEAVE-COU Not Available Price: |
| 48 |
1710566 |
IDLER-FLAT Price: $15.00 |
| 49 |
710-3011 |
Screw 3/8-16 X 2.25 Gr5 This part replaces 1100049. Price: $6.49 |
| 50 |
1767164 |
RIM-SICKLEBAR Not Available Price: |
| 52 |
1766645 |
HEX SCREW Not Available Price: |
| 53 |
1107384 |
WASHER-.94 Not Available Price: |
| 54 |
1766646010 |
ASSM-BELT GUARD LH Not Available Price: |
| 56 |
1766643 |
SHEAVE-WHEEL Price: Call Us |
| 58 |
1766648010 |
ASSM-BELT GUARD RH Not Available Price: |
| 59 |
1766649 |
AXLE-WHEEL Price: Call Us |
| 61 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 This part replaces 1186469. Price: $3.53 |
| 82 |
736-0262 |
FLAT WASHER .385X.870X.090 This part replaces 1100255. Price: $3.66 |
| 84 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 93 |
1985176 |
BELT GUIDE Not Available Price: |
| 98 |
710-0395 |
Screw-Hex 5/16-18 This part replaces 1111607. Price: $4.08 |
| 100 |
1766787 |
THRUST WASHER Not Available Price: |
| 107 |
1185219 |
RING-RET. Not Available Price: |
| 112 |
1717897 |
PIN-CLIP Not Available Price: |
| 115 |
1765993 |
PIN-PIVOT .25" Price: Call Us |
| 116 |
1766992 |
RING-CRESCENT EXT Not Available Price: |
| 117 |
1765925 |
LEVER Not Available Price: |
| 118 |
1765923 |
COMPRESSION SPRING Not Available Price: |
| 123 |
1766810 |
BEARING-BA Not Available Price: |
| 125 |
1103437 |
SCR-SET HX Not Available Price: |
| 136 |
1767160 |
LEVER W/DE Not Available Price: |
| 154 |
1767091 |
DECAL-OIL DRAIN Not Available Price: |
| 155 |
1767645 |
DECAL-THROTTLE Not Available Price: |
| 156 |
1767124 |
DECAL-PLACE HAN/PU Not Available Price: |
| 160 |
1767128 |
LEFT CONTROL RETURN SPRING Not Available Price: |
| 161 |
1767129 |
SPRING-CONTROL RH Price: Call Us |
| 162 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1110108. Price: $4.02 |
| 163 |
1766808 |
BELT-V Price: $29.45 |
| 164 |
1767328 |
BELT GUIDE Not Available Price: |
| 1766644 |
ASSEMBLY |
Wheel Not Available Price: 1766644 |
