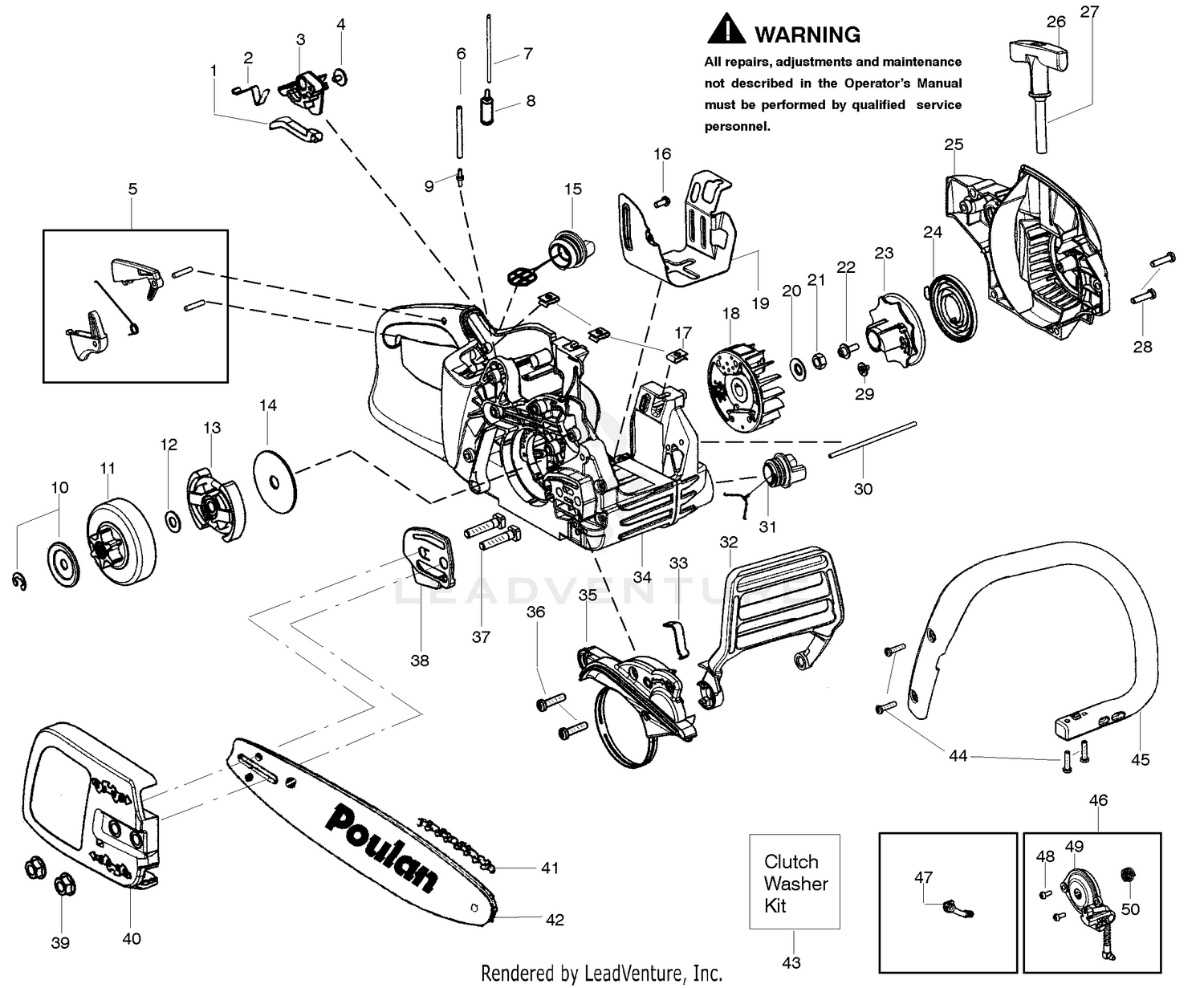

| Ref | Part Number | Description |
|---|
| 1 |
530057893 |
Knob-Choke Price: $3.99 |
| 2 |
530057908 |
Spring-Ign. Switch Price: $2.99 |
| 3 |
530057891 |
Lever-Ign. Switch Price: $4.99 |
| 4 |
530016080 |
Screw Price: $1.99 |
| 5 |
530071888 |
Kit-Trigger/Lockout Price: $6.99 |
| 6 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 7 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 8 |
530095646 |
Assy-Fuel Pickup This part replaces 530095649. Price: $2.99 |
| 9 |
530023877 |
Fitting-Fuel line Price: $1.99 |
| 10 |
530071945 |
Kit-Clutch Washer Price: $3.99 |
| 11 |
530057905 |
Assy-Clutch Drum 3/8" Price: $14.99 |
| 12 |
530071945 |
Kit-Clutch Washer Price: $3.99 |
| 13 |
530057907 |
Assy-Clutch Price: $6.99 |
| 14 |
530016419 |
Washer-Large Clutch Price: $1.99 |
| 15 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 16 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 17 |
530015922 |
Nut-"U" type speed Price: $1.99 |
| 18 |
530071905 |
KIT This part replaces 530057937. Price: $37.99 |
| 19 |
530057911 |
Shield-Heat Price: $2.99 |
| 20 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 21 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 22 |
530015920 |
Screw Price: $1.99 |
| 23 |
530057890 |
Pulley-Starter Price: $5.99 |
| 24 |
545008013 |
Kit-Starter Spring This part replaces 530042095. Price: $3.99 |
| 25 |
579372501 |
KIT FAN HSG PURPLE This part replaces 530058816. Price: $9.99 |
| 26 |
530056402 |
Handle-Starter Price: $2.99 |
| 27 |
530069232 |
Kit-Rope Price: $3.99 |
| 28 |
530016432 |
Screw Price: $1.99 |
| 29 |
530016080 |
Screw Price: $1.99 |
| 30 |
530058786 |
Assy-Oil Vent Price: $2.99 |
| 31 |
530057236 |
Assy-Oil Cap w/ret. Price: $5.99 |
| 32 |
530057897 |
Handguard Price: $7.99 |
| 33 |
530016416 |
Spring-Handguard Price: $1.99 |
| 35 |
530071893 |
Kit-Chainbrake Price: $17.99 |
| 36 |
530016432 |
Screw Price: $1.99 |
| 37 |
530016133 |
Bolt-Bar Price: $1.99 |
| 38 |
530057910 |
Plate-Bar Price: $1.99 |
| 39 |
530015917 |
Nut-Bar Price: $0.99 |
| 40 |
530058920 |
Clutch Cover Price: $14.99 |
| 41 |
581562301 |
P/PP CHN 18" 62DL 3/8 .050 This part replaces 952051338. Price: $19.99 |
| 44 |
530016432 |
Screw Price: $1.99 |
| 45 |
530057888 |
Handle-Front Price: $14.99 |
| 47 |
530057924 |
Assy-Oil Pick Up Price: $2.99 |
| 48 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 49 |
581071401 |
OIL PUMP ASSY SAS This part replaces 530057931. Price: $5.99 |
| 99 |
277078 |
Gasket-Governor Housing Price: Call Us |
| 100 |
271151 |
Rod-Throttle Price: Call Us |
| 101 |
4520803 |
Ball Joint Price: Call Us |
| 102 |
X-489-8 |
Rod Breaker Push Price: Call Us |
| 103 |
220174 |
Gasket, Cover Price: Call Us |
| 104 |
220074 |
Diaphram Price: Call Us |
| 105 |
232535 |
Cover Price: Call Us |
| 106 |
271547 |
Spring Governor Price: Call Us |
| 107 |
275691 |
Screw Shoulder Price: Call Us |
| 108 |
277073 |
Gasket Price: Call Us |
| 109 |
277080 |
Lever-Throttle Price: Call Us |
| 110 |
A-277905 |
Housing, Breather (Includes Valve) Price: Call Us |
| 111 |
277431 |
Washer, Tension Price: Call Us |
| 112 |
4815002 |
Breaker Price: Call Us |
| 113 |
4819401 |
Ball Price: Call Us |
| 114 |
4875510 |
Kit-Clamp Price: Call Us |
