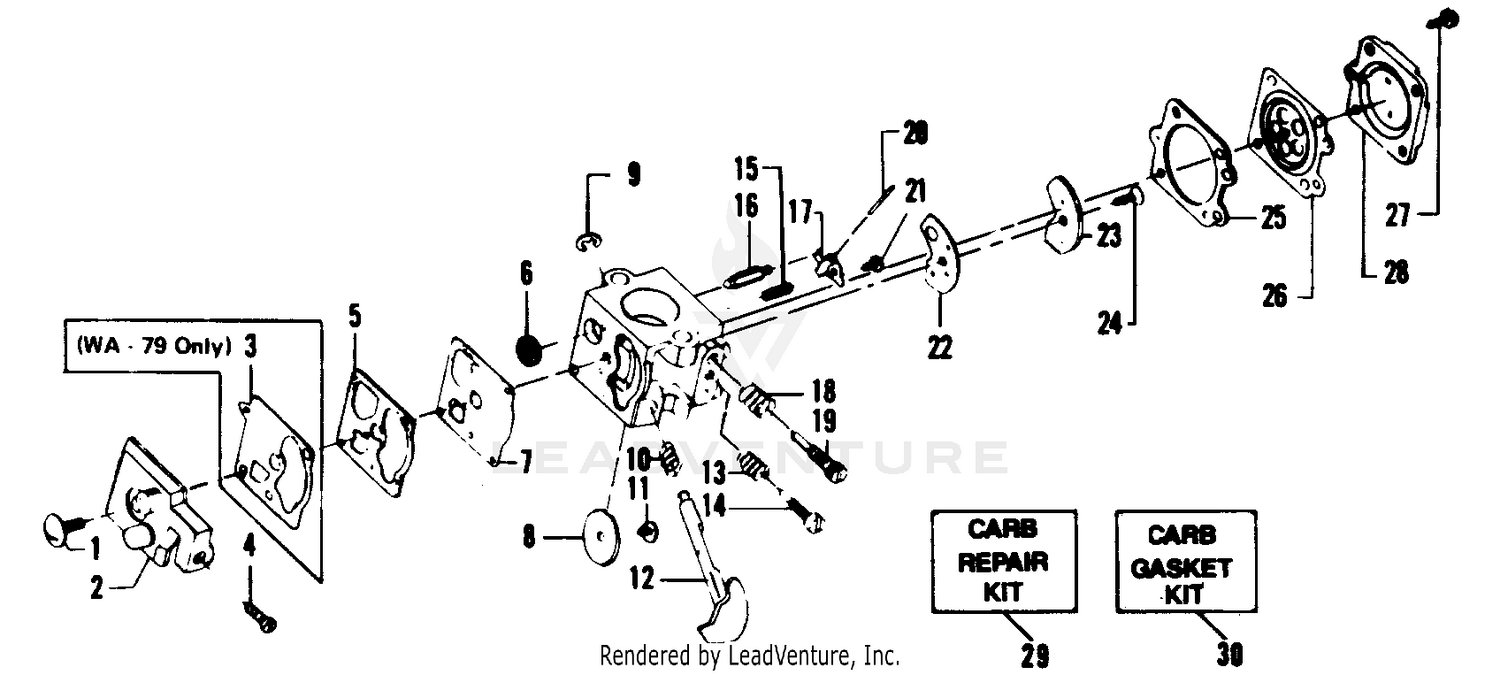

| Ref | Part Number | Description |
|---|
| 1 |
3-0112 |
DISCONTINUED Price: Call Us |
| 1 |
530035017 |
Screw - Pump Cover Price: $0.99 |
| 2 |
325-18 |
SCREW-HH Price: $3.19 |
| 2 |
530035154 |
WA - 79 Price: $3.33 |
| 2 |
530035191 |
WA - 149 (#35183) Price: $3.99 |
| 3 |
32146-13 |
NUT-HEX Price: $3.49 |
| 3 |
530035135 |
Diaphragm - Pump (WA - 79 Only) Price: $3.33 |
| 4 |
325-10 |
SCREW-HH Price: $1.82 |
| 4 |
530035156 |
Screw - Idle Adjustment Price: $1.99 |
| 5 |
3290-216 |
WASHER Price: $3.83 |
| 6 |
325-8 |
SCREW-HH Price: $3.52 |
| 6 |
530035178 |
Screen Inlet Price: $1.99 |
| 7 |
325-6 |
SCREW-HH Price: $1.42 |
| 7 |
504130807 |
PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99 |
| 7 |
530035152 |
WA - 79 Price: $5.99 |
| 8 |
3-4608 |
DISCONTINUED Price: Call Us |
| 8 |
530035133 |
Valve - Throttle Price: $3.33 |
| 9 |
3-4606 |
DISCONTINUED Price: Call Us |
| 9 |
530035007 |
Clip - Throttle Shaft Price: Call Us |
| 10 |
325-7 |
SCREW-HH Price: $1.53 |
| 10 |
530035138 |
Spring - Throttle Return Price: Call Us |
| 11 |
322-10 |
SCREW-HH Price: $0.70 |
| 12 |
37-3090 |
DISCONTINUED Price: Call Us |
| 12 |
530035132 |
Shaft Assembly - Throttle Price: Call Us |
| 13 |
37-3080 |
DISCONTINUED Price: Call Us |
| 13 |
530035023 |
Spring - Idle Needle Price: $0.99 |
| 14 |
3217-11 |
NUT-HEX Price: $0.95 |
| 14 |
530035141 |
Needle - Idle Price: $2.99 |
| 15 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 16 |
37-4100 |
DISCONTINUED Price: Call Us |
| 17 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 18 |
530035036 |
Spring - Hi Speed Needle Price: Call Us |
| 18 |
95-1802 |
DISCONTINUED This part replaces 3-1615. Price: Call Us |
| 19 |
327-4 |
SCREW-HH Price: $2.20 |
| 19 |
501782201 |
H-NEEDLE This part replaces 530035142. Price: $6.30 |
| 20 |
26-8580 |
DISCONTINUED Price: Call Us |
| 21 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 21 |
530035016 |
Screw - Metering Lever Pin Price: $2.99 |
| 22 |
5-2942 |
SHACKLE Price: $16.99 |
| 22 |
501781301 |
GASKET This part replaces 530035147. Price: $0.45 |
| 23 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 23 |
530035042 |
Plate - Circuit Price: $3.33 |
| 24 |
3-6690 |
DISCONTINUED Price: Call Us |
| 25 |
2412-70 |
CLAMP Price: Call Us |
| 25 |
530035151 |
Gasket - Metering Diaphragm Price: $1.99 |
| 26 |
3218-5 |
NUT-JAM Price: $0.27 |
| 26 |
503896701 |
DIAPHRAGM This part replaces 530035014. Price: $4.99 |
| 27 |
3-0136-01 |
CHAIN KEEPER ASM This part replaces 3-0136. Price: $51.92 |
| 27 |
530035153 |
Screw Assembly - Metering Cover & Throttle Shaft Clip Price: $3.33 |
| 28 |
3-2196-01 |
SHEAVE This part replaces 3-2196. Price: $141.72 |
| 28 |
530035149 |
Cover - Metering Diaphragm Price: $3.33 |
| 29 |
530035144 |
WA - 79 Price: $24.99 |
| 29 |
530035185 |
WA - 149 (#35183) Price: $24.99 |
