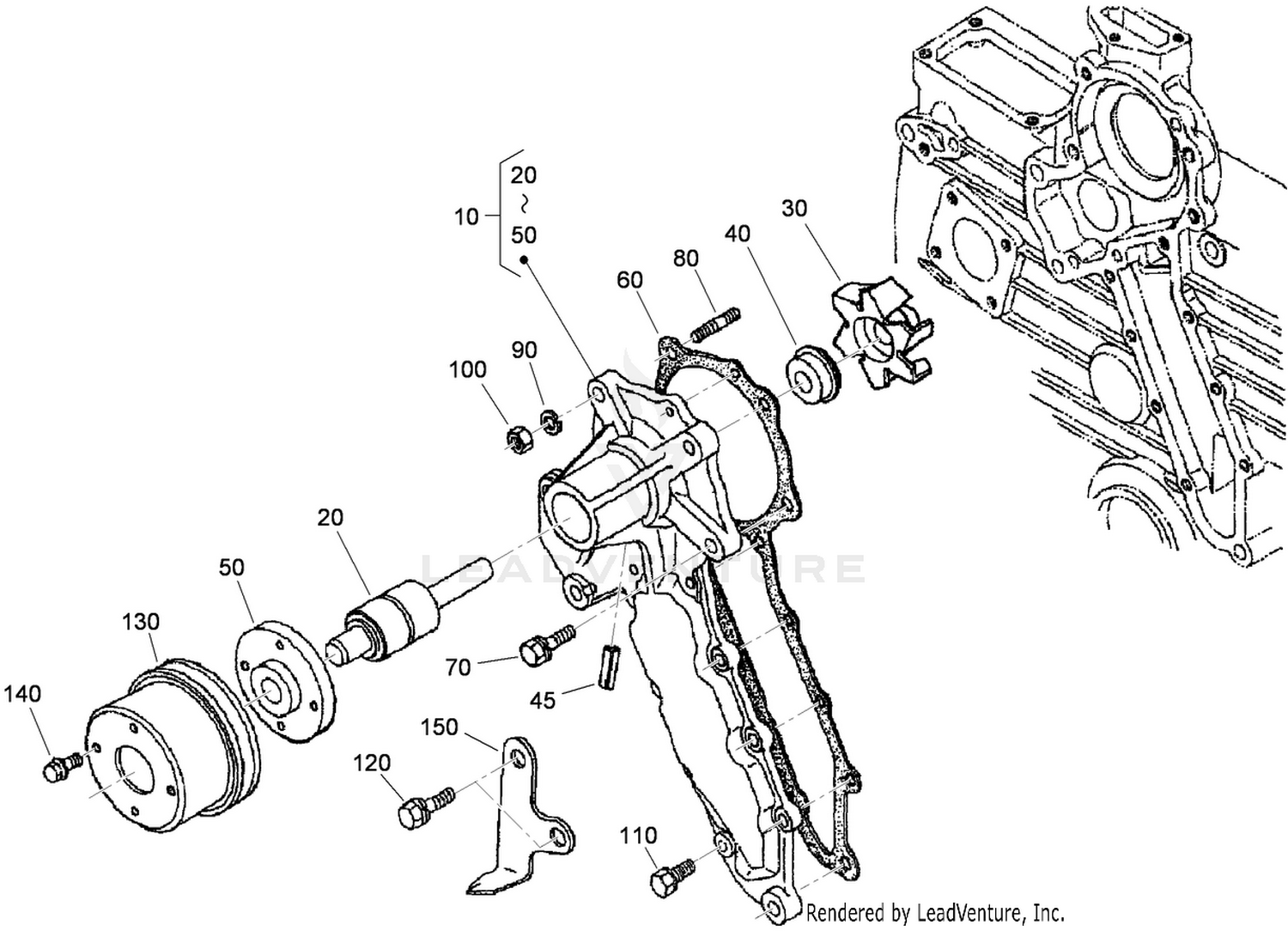

| Ref | Part Number | Description |
|---|
| 10 |
98-7779 |
WATER PUMP ASM Price: $315.48 |
| 20 |
120-5828 |
BEARING This part replaces 98-7780. Price: $94.24 |
| 30 |
107-0130 |
IMPELLER-PUMP, WATER Price: $43.41 |
| 40 |
98-7782 |
MECHANICAL SEAL ASM Price: $20.74 |
| 45 |
107-0131 |
PIN-SPRING Price: $9.23 |
| 50 |
108-7089 |
FLANGE-SHAFT, WATER PUMP Price: $90.06 |
| 60 |
98-7784 |
GASKET-PUMP, WATER Price: $22.37 |
| 70 |
98-7439 |
BOLT Price: $1.00 |
| 80 |
108-7090 |
STUD Price: $1.00 |
| 90 |
98-7535 |
WASHER-SPRING Price: $0.32 |
| 100 |
98-7534 |
NUT Price: $0.48 |
| 110 |
98-7605 |
BOLT Price: $0.84 |
| 120 |
98-7568 |
BOLT Price: $0.84 |
| 130 |
98-7702 |
PULLEY-FAN Price: $81.38 |
| 140 |
100-1774 |
BOLT-FLANGE This part replaces 107-4317. Price: $5.26 |
