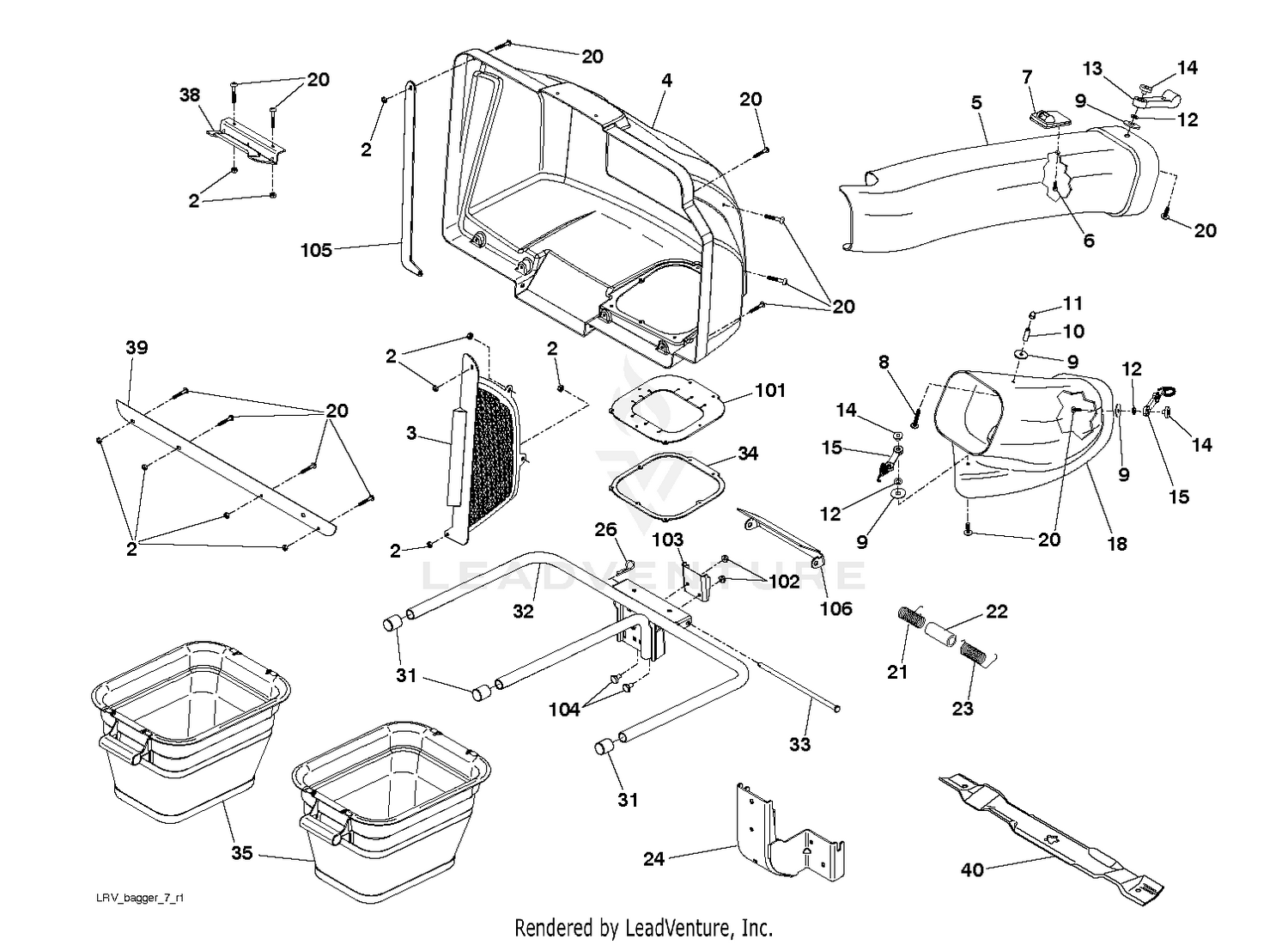

| Ref | Part Number | Description |
|---|
| 2 |
532069180 |
LOCKNUT Price: $2.99 |
| 3 |
532127533 |
COVER SCREEN Price: $14.99 |
| 5 |
532436454 |
CHUTE.UPPER.30" LRV(B) Price: $49.99 |
| 6 |
818021008 |
SCREW Price: $4.99 |
| 7 |
532130933 |
INDICATOR ASM BAG Price: $6.99 |
| 8 |
874981024 |
SCREW.PAN.HEAD This part replaces 532087175. Price: $4.99 |
| 10 |
532007206 |
SPACER LT This part replaces 532171345. Price: $5.99 |
| 11 |
539108086 |
NUT 10-24 ACORN ZD This part replaces 532060867. Price: $3.99 |
| 12 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 13 |
532109808 |
LATCH.HOOD. Price: $5.99 |
| 14 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 15 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 18 |
532436453 |
CHUTE.LOWER.30" LRV(B) Price: $64.99 |
| 20 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 21 |
532132796 |
SPRING COVER LH Price: $5.99 |
| 22 |
532133235 |
SPACER.COVER.BAGGER Price: $5.99 |
| 23 |
532132983 |
SPRING COVER RH Price: $5.99 |
| 24 |
532438167 |
ASM.SUPPORT.BAGGER Price: $64.99 |
| 26 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 31 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 32 |
532179746 |
FRAME.ASM.BAGGER.2BIN.QC42B Price: $89.99 |
| 33 |
532192786 |
BAGGER.HINGE.PIN Price: $14.99 |
| 34 |
584360701 |
LRVB.BAGGER.TOP.SEAL This part replaces 532442065. Price: $22.99 |
| 35 |
532436810 |
SOFT.BAG.ASSEM.G30LRV Price: $69.99 |
| 38 |
532130895 |
LATCH CER38 Price: $5.99 |
| 39 |
532155042 |
STRIP.REINFORCE.BAGGER.2BIN.BL Price: $11.99 |
| 40 |
532419273 |
BLADE, MULCH.LRV30 Price: $29.99 |
| 101 |
584360701 |
LRVB.BAGGER.TOP.SEAL This part replaces 532442065. Price: $22.99 |
| 102 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 103 |
532442104 |
BRACKET Price: $7.99 |
| 104 |
532424297 |
BOLT.SHOULDER.1/2X12 Price: $3.99 |
| 105 |
532442526 |
SEAL.SIDE.LRV.L Price: $3.99 |
| 106 |
532444103 |
BAGGER SPRING BRACKET Price: $12.99 |
