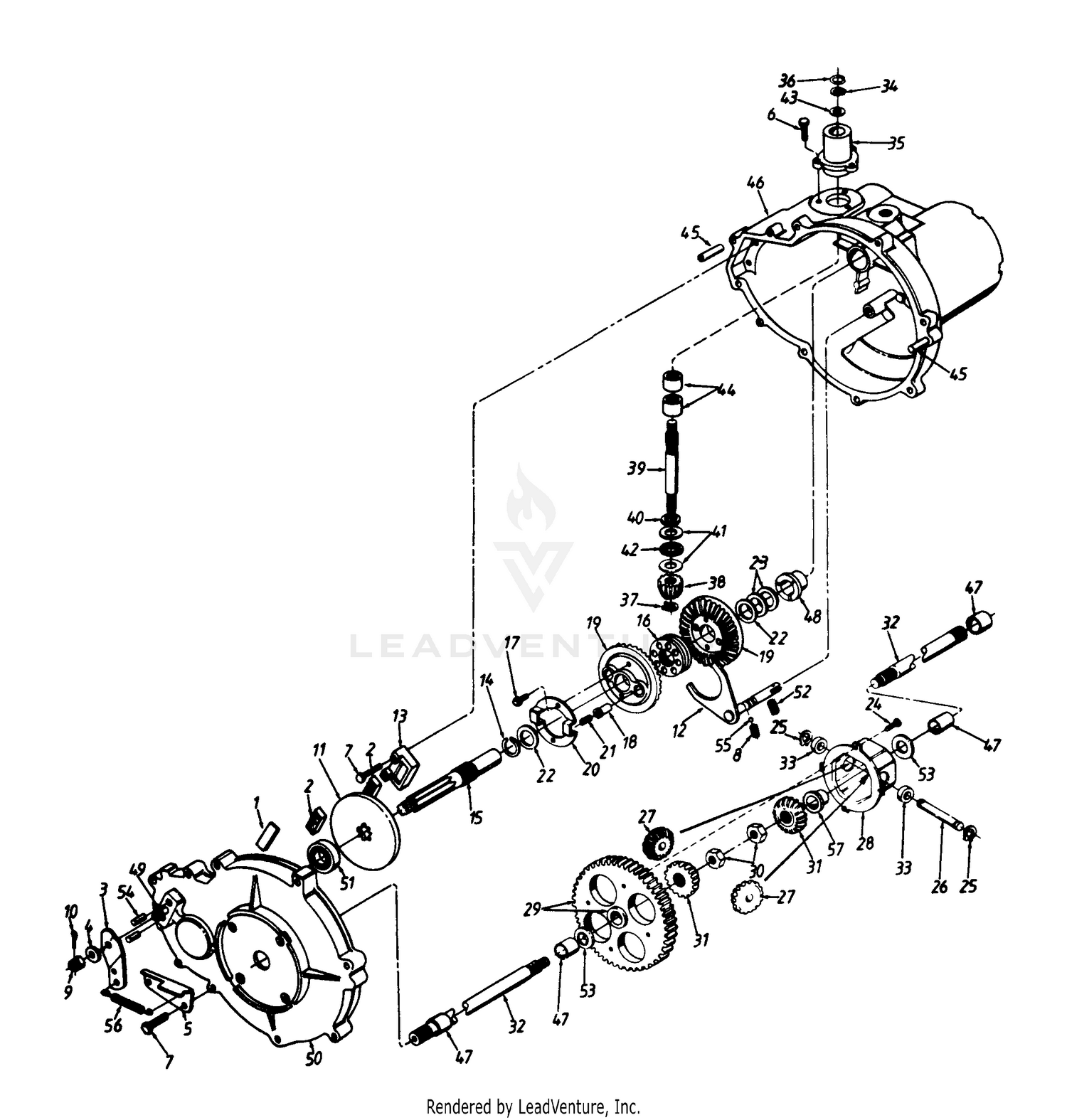

| Ref | Part Number | Description |
|---|
| 1 |
917-0682 |
PUCK PLATE This part replaces 717-0682. Price: $8.68 |
| 2 |
961-0200 |
BRAKE PUCK Not Available This part replaces 761-0200. Price: |
| 3 |
717-0772B |
ACTUATING ARM (LH) This part replaces 717-0772A. Price: $11.08 |
| 4 |
736-0371 |
Fl-Wash. 11/32" I.D. x 7/8" O.D. Price: $3.94 |
| 5 |
17841A |
BRACKET-BRAKE STOP Not Available Price: |
| 6 |
710-0433 |
Hex Bolt 1/4-20 x .62" Lg. (Special) Price: $4.02 |
| 7 |
710-0809 |
Hex Tap Scr. 1/4-20 x 1.25" Lg. Price: $6.37 |
| 8 |
932-05125 |
DETENT SHAFT SPRING This part replaces 732-0863. Price: $3.66 |
| 9 |
912-0273 |
NUT This part replaces 712-0335. Price: $4.02 |
| 10 |
714-0111 |
Cotter Pin 3/32" Dia. x 1" Lg. Price: $4.20 |
| 11 |
718-0184 |
DISC-BRAKE Not Available Price: |
| 12 |
717-1102 |
SHIFTER ASSEMBLY Not Available Price: |
| 13 |
717-1217 |
HOLDER-BRAKE PUCK Not Available Price: |
| 14 |
716-0175 |
RETAINING RING Not Available Price: |
| 15 |
717-1093 |
DRIVE SHAFT Not Available Price: |
| 16 |
717-1268 |
SHIFT COLLAR Not Available Price: |
| 17 |
710-0653 |
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. Price: $3.78 |
| 18 |
917-1184 |
DRIVE PIN Not Available This part replaces 717-1184. Price: |
| 20 |
717-1269 |
RETAINING SPRING PLATE Not Available Price: |
| 21 |
732-0590A |
DRIVE SPRING Not Available Price: |
| 22 |
736-0444 |
WASHER-1.5 ODX x .915 ID Not Available Price: |
| 23 |
936-0454 |
FLAT WASHER Not Available This part replaces 736-0454. Price: |
| 24 |
710-0862A |
Pan Hd. Scr. 1/4-20 x .5" Lg. Price: $4.05 |
| 25 |
916-0184 |
Snap Ring This part replaces 716-0184. Price: $4.25 |
| 26 |
711-0918 |
Cross Shaft Price: $13.32 |
| 27 |
717-1020 |
MITER GEAR Not Available Price: |
| 28 |
918-04089 |
DIFF HOUSING ASSEMBLY W/BEARING Not Available This part replaces 717-1252. Price: |
| 29 |
717-1254 |
GEAR ASSEMBLY- Not Available Price: |
| 30 |
712-0200A |
Hex Ins. L-Nut 1/2-20 Thd. Price: $3.85 |
| 31 |
917-1019 |
Miter Gear-H.D. This part replaces 717-1019. Price: $25.67 |
| 32 |
717-1197 |
AXLE Not Available Price: |
| 33 |
753-0527 |
KIT-DIFF CROSS SHA Not Available This part replaces 750-0787. Price: |
| 34 |
916-0171 |
Retainer Ring This part replaces 716-0171. Price: $5.04 |
| 35 |
717-1228 |
HOUSING-INPUT Not Available Price: |
| 36 |
732-0614 |
Wire Ring Price: $5.37 |
| 37 |
716-0108 |
Retaining Ring Price: $4.53 |
| 38 |
917-0633 |
INPUT PINION 14T Not Available This part replaces 717-0633. Price: |
| 39 |
711-0861 |
INPUT SHAFT Not Available Price: |
| 40 |
721-0178 |
SQUARE SEAL 5/8ID Not Available Price: |
| 41 |
936-0419 |
THRUST WASHER-.630 x 1.125 Not Available This part replaces 736-0419. Price: |
| 42 |
741-0469 |
THRUST BEARING Not Available Price: |
| 43 |
936-0349 |
FLAT WASHER This part replaces 7360349. Price: $3.86 |
| 44 |
941-0335 |
NEEDLE BEARING This part replaces 741-0335. Price: $16.86 |
| 45 |
715-0209 |
DOWEL PIN Not Available Price: |
| 46 |
717-1235 |
R.H. HOUSING Not Available Price: |
| 47 |
741-05060 |
SLEEVE BEARING .75X1.00X1.00 This part replaces 741-0340. Price: $7.69 |
| 48 |
741-0548 |
FLANGE BEARING Not Available Price: |
| 49 |
717-0796 |
BOLT Not Available Price: |
| 50 |
717-1234 |
HOUSING (LH) Not Available Price: |
| 51 |
941-0600 |
BALL BEARING This part replaces 741-0124. Price: $23.34 |
| 52 |
710-3006 |
SCREW .375 x 5/16-18 Not Available Price: |
| 53 |
736-0445 |
Fl-Wash. .76" I.D. x 1.5" O.D. Price: $3.95 |
| 54 |
741-0343 |
Brake Actuating Pin Price: $8.93 |
| 55 |
741-0862 |
DETENT BALL .250 Price: $3.90 |
| 56 |
732-0545 |
EXTENSION SPRING Not Available Price: |
| 57 |
741-0552 |
FLANGE BEARING Not Available Price: |
